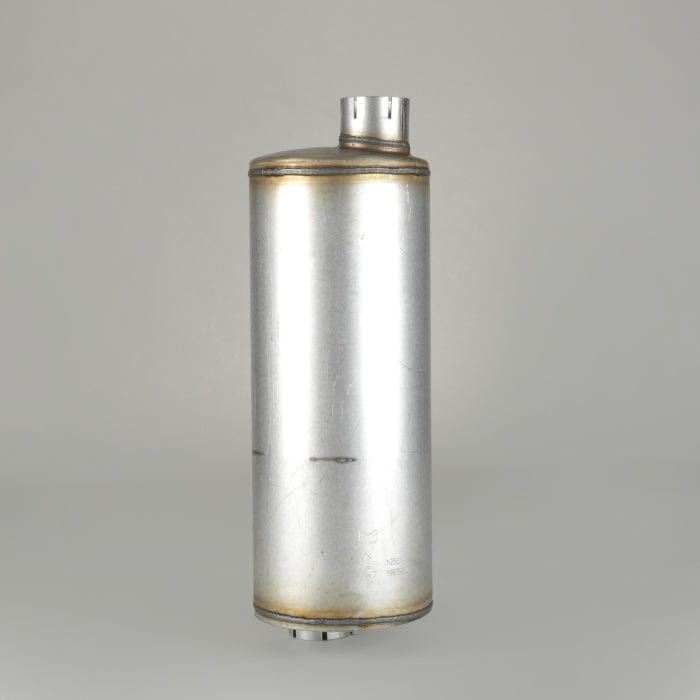

Muffler, Round Style 2 - Donaldson M085056

Muffler, Round Style 2 - Donaldson M085056

£195.30
£195.30
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson M085056

Muffler, Round Style 2
Inlet Diameter 3.02 inch (76.66 mm)
Outlet Diameter 3.02 inch (76.66 mm)
Body Diameter Maximum 8.46 inch (214.88 mm)
Body Length 20.25 inch (514.4 mm)
Overall Length 25.00 inch (635 mm)
Rated Flow LR 632 cfm (17.9 m³/min)
Rated Flow MR 893 cfm (25.3 m³/min)
Rated Flow HR 1095 cfm (31 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 15 dBA
Attenuation HR 20 dBA
Inlet Clock Position 6:00
Outlet Clock Position 12:00
Style Style 2
View full details

Specifications

Attributes

  • Inlet Diameter: 76.66 mm (3.02 inch)
  • Outlet Diameter: 76.66 mm (3.02 inch)
  • Body Diameter Maximum: 214.88 mm (8.46 inch)
  • Body Length: 514.4 mm (20.25 inch)
  • Overall Length: 635 mm (25.00 inch)
  • Rated Flow LR: 17.9 m³/min (632 cfm)
  • Rated Flow MR: 25.3 m³/min (893 cfm)
  • Rated Flow HR: 31 m³/min (1095 cfm)
  • Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
  • Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
  • Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
  • Attenuation LR: 15 dBA
  • Attenuation HR: 20 dBA
  • Inlet Clock Position: 6
  • Outlet Clock Position: 12
  • Style: Style 2

Packaged Dimensions

  • Packaged Length: 0.725 m (29.00 inch)
  • Packaged Width: 0.219 m (8.75 inch)
  • Packaged Height: 0.219 m (8.75 inch)
  • Packaged Weight: 6.869 kg (15.13 lb)
  • Packaged Volume: 0.036 m3 (1.28 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-07
  • HTS Code: 8708923500
  • UPC Code: 742330004890

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
A P PARTS 3627
A P PARTS 3627Q
AMERICAN AUGERS 8NG1000501
AP EXHAUST PRODUCTS INC 3627
ASTEC UNDERGROUND AU113915
BADGER 76018805
BARKO HYDRAULICS 53500139
CAMECO 550041602
CAMECO 05541602
CAMECO 5541602
CAMECO 0550041602
CASE/CASE IH XA68334
CASE/CASE IH L014219
CASE/CASE IH NM085056
CASE/CASE IH L14219
CATERPILLAR 2990392
CATERPILLAR 773465
CATERPILLAR 0773465
CENTURY II 27Z438
CHAMPION ROAD 502492
CMI 413162
COMPACTION AMERICA 0153025
COMPAIR 782862
CUMMINS M085141
DEMAG 25558740
DITCH WITCH 1951025
DRESSER 100725
DRESSER D100725
DRESSER 108935H45
DRESSER 1432462H1
DYNAPAC 502571
DYNAPAC 00502571
EAGLE TRUCK PRODUCTS E109
EATON 206342000
ERICKSON 34718
ERICKSON 34128
EUCLID M6010469
EUCLID 6010469
FMC 46A1020
FMC 69A0122
FMC 2230745
FORD 248888
FORD 9575M085056
FREIGHTLINER DNM085056
GALION D100725
GETMAN 594070
GLOBAL ASPHALT PRODUCTS 502492
GRADALL 91083101
GRADALL 91163035
GRIMMER SCHMIDT 12464413
HAVAM HD4380
HEAVY DUTY MFG 31104
HURRICANE COMPRESSOR 12464413
HYSTER 153025
INGERSOLL RAND 22367007
INGERSOLL RAND 50266964
INGERSOLL RAND 502492
INGERSOLL RAND 35844117
INGERSOLL RAND 58933623
INTERNATIONAL DCM085056
JLG 91163035CP
JLG 91163035
KOHLER 253265
KOMATSU 25558740
KOMATSU 1432462H1
KOMATSU 108935H45
LEROI 782862
LINK BELT 46A1020
LINK BELT 69A0122
MCCORMICK XA68334
NELSON B379720
ORENSTEIN & KOPPEL 206342000
P & H 27Z438
PERKINS 11104
PERKINS M085141
PETTIBONE LL847450
PETTIBONE LL847117
RAYGO 23570001
RAYGO 2000393
SISU 4402011
SISU 6010469
SISU 04402011
SKYJACK 58933623
SKYJACK 925262AA
STEMCO 1901304
SUPERIOR COMPRESSOR 12464413
TROJAN 206342000
TROJAN 2063420
TRUCKEX 3627
UNITED CENTRAL INDUSTRIAL SUPP 903059
VALMET 6010469
VERMEER 2169001
VERMEER 21690011
VOEGELE 502492
WABCO VY6771
WALGAHN-MOTORENTECHN 00810301
WALGAHN-MOTORENTECHN 810301
WALKER MANUFACTURING 22636
WARNER & SWASEY 76018805
