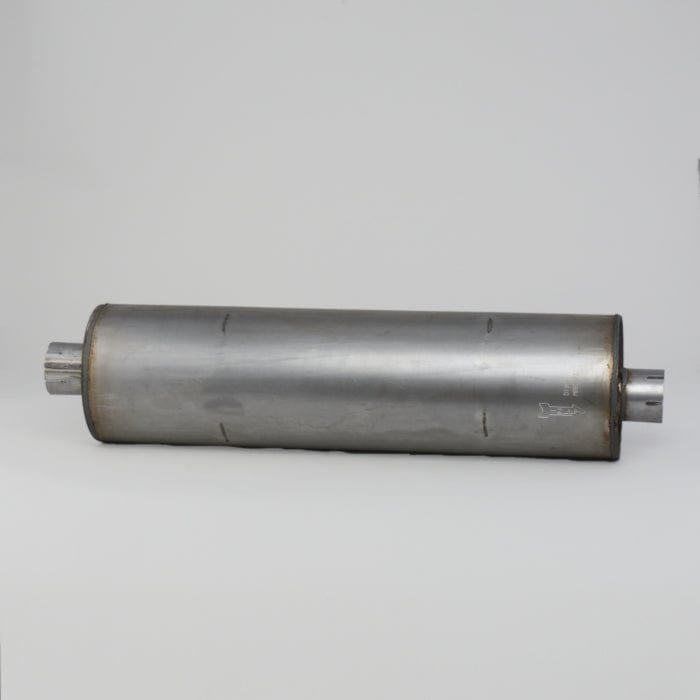

Muffler, Round Style 2 - Donaldson M085023
Muffler, Round Style 2 - Donaldson M085023
Regular price
£246.58
Regular price
Sale price
£246.58
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M085023
Muffler, Round Style 2| Inlet Diameter | 3.02 inch (76.66 mm) |
| Outlet Diameter | 3.02 inch (76.66 mm) |
| Body Diameter Maximum | 8.46 inch (214.88 mm) |
| Body Length | 30.75 inch (781 mm) |
| Overall Length | 36.25 inch (920.75 mm) |
| Rated Flow LR | 632 cfm (17.9 m³/min) |
| Rated Flow MR | 893 cfm (25.3 m³/min) |
| Rated Flow HR | 1095 cfm (31 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 17 dBA |
| Attenuation HR | 22 dBA |
| Inlet Clock Position | 6:00 |
| Outlet Clock Position | 12:00 |
| Style | Style 2 |
Share
Collapsible content
Specifications
Attributes
- Inlet Diameter: 76.66 mm (3.02 inch)
- Outlet Diameter: 76.66 mm (3.02 inch)
- Body Diameter Maximum: 214.88 mm (8.46 inch)
- Body Length: 781 mm (30.75 inch)
- Overall Length: 920.75 mm (36.25 inch)
- Rated Flow LR: 17.9 m³/min (632 cfm)
- Rated Flow MR: 25.3 m³/min (893 cfm)
- Rated Flow HR: 31 m³/min (1095 cfm)
- Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
- Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
- Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
- Attenuation LR: 17 dBA
- Attenuation HR: 22 dBA
- Inlet Clock Position: 6
- Outlet Clock Position: 12
- Style: Style 2
Packaged Dimensions
- Packaged Length: 0.988 m (39.50 inch)
- Packaged Width: 0.247 m (9.88 inch)
- Packaged Height: 0.222 m (8.88 inch)
- Packaged Weight: 9.194 kg (20.25 lb)
- Packaged Volume: 0.056 m3 (2.00 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 125850-08
- HTS Code: 8708923500
- UPC Code: 742330004883
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 2704 | |
| A P PARTS | 2704Q | |
| A P PARTS | 3629Q | |
| ACRAFIT | M20139 | |
| ALLIS-CHALMERS | 3061668 | |
| ALLIS-CHALMERS | 3061656 | |
| AP EXHAUST PRODUCTS INC | 2704 | |
| APE INDUSTRI AB | 2704 | |
| ATHEY | P85523 | |
| ATHEY | 6187303 | |
| B R LEE INDUSTRIES | 846100247 | |
| BADGER | 0520379 | |
| BADGER | 76022356 | |
| CASE/CASE IH | 5220817 | |
| CASE/CASE IH | S220817 | |
| CATERPILLAR | 3R0682 | |
| CHARDONNET | 7408511200 | |
| CHICAGO PNEUMATIC | P20352 | |
| CHRYSLER | 2975915 | |
| CHRYSLER | 3459884 | |
| CLARK | 1505943 | |
| CLARK | 161WA533 | |
| CMI | 4003031000 | |
| COMPACTION AMERICA | 846100247 | |
| CRANE CARRIER | A4957 | |
| CRANE CARRIER | 21023 | |
| CRANE CARRIER | 8A5098 | |
| CUB CADET | 549469C1 | |
| CUMMINS | 212362 | |
| DRESSER | 114338 | |
| DROTT | 220817 | |
| DYNAFLEX | 89300139 | |
| EAGLE TRUCK PRODUCTS | E13039 | |
| EAGLE TRUCK PRODUCTS | E130 | |
| EAGLE TRUCK PRODUCTS | E201 | |
| EAGLE TRUCK PRODUCTS | E1351 | |
| EATON | 2093622 | |
| EATON | 207655000 | |
| EIMCO | 106B4943 | |
| ELGIN | 6187303 | |
| ELGIN | AY2582 | |
| ELGIN | BX0376 | |
| FIAT | 73061668 | |
| FIAT | 73061656 | |
| FMC | 2235724 | |
| FMC | 2672158 | |
| FMC | 12H0020 | |
| FORD | C4TS5230A | |
| FORD | C4TZ5230B | |
| FORD | 9575M085023 | |
| FREIGHTLINER | DNM085023 | |
| FWD | 197721 | |
| FWD | 00197721 | |
| GALION | D114338 | |
| GARDNER DENVER | 166395 | |
| GRADALL | 76022356 | |
| GRADALL | 24921330 | |
| GRADALL | 0166395 | |
| GRADALL | 770512A05 | |
| GRADALL | 166395 | |
| HEAVY DUTY MFG | 31015 | |
| HEAVY DUTY MFG | 11015 | |
| HITACHI | 73061668 | |
| HOIST LIFTTRUCK MANUFACTURING | M11998 | |
| INGERSOLL RAND | 35113539 | |
| INGERSOLL RAND | 35113530 | |
| INSLEY | 520379 | |
| INTERNATIONAL | 127026R92 | |
| INTERNATIONAL | DCM085023 | |
| INTERNATIONAL | 466984C1 | |
| INTERNATIONAL | 465971C1 | |
| INTERNATIONAL | 466984C91 | |
| INTERNATIONAL | 471382C1 | |
| INTERNATIONAL | 549470C1 | |
| INTERNATIONAL | 244007R91 | |
| INTERNATIONAL | 549469C1 | |
| INTERNATIONAL | 499528C1 | |
| INTERNATIONAL | 464643C1 | |
| INTERNATIONAL | 211618R91 | |
| INTERNATIONAL | 440737C1 | |
| JOHN DEERE | AE20601 | |
| KOEHRING | 125670 | |
| KOEHRING | 4204351 | |
| KOEHRING | 4204373 | |
| KOEHRING | 846100243 | |
| KOEHRING | 846100247 | |
| KOEHRING | 420V4351 | |
| KOEHRING | 420V1373 | |
| KOMATSU | 114338 | |
| LINK BELT | 12H0020 | |
| MAREMONT | TD2 | |
| MAREMONT | TD002 | |
| MI-JACK | 104128 | |
| NELSON | 86139M | |
| NEW HOLLAND | 73061668 | |
| OSHKOSH | P107097 | |
| OSHKOSH | 17390FX | |
| P & H | 27Z378 | |
| P & H | 27Z799 | |
| PEERLESS PUMP | 2672158 | |
| PETTIBONE | LL84737 | |
| PETTIBONE | 0RO23180028 | |
| PETTIBONE | R02318028 | |
| PETTIBONE | ORO23180028 | |
| PETTIBONE | A2318028 | |
| PETTIBONE | PR10002435 | |
| REXNORD | 2980518692 | |
| RIKER | HD3078 | |
| RIKER | 85925 | |
| ROSCO | 846100247 | |
| STEMCO | 1909208 | |
| STEMCO | 1901180 | |
| TAYLOR | 2404031 | |
| TAYLOR | 2403031 | |
| TROJAN | 207655000 | |
| TROJAN | 2076550 | |
| TRUCKEX | 2704 | |
| TRUCKEX | 3655 | |
| UNION CITY BODY | 588897896 | |
| WALGAHN-MOTORENTECHN | 810297 | |
| WALGAHN-MOTORENTECHN | 00810297 | |
| WALKER MANUFACTURING | 21018 | |
| WALKER MANUFACTURING | 21476 | |
| WARNER & SWASEY | 76022356 | |
| WARNER & SWASEY | 24921330 | |
| WHITE | 27076523 | |
| WHITE | 27076528 | |
| WHITE | 027076523 | |
| WHITE | 508705 | |
| WHITE | 508708 | |
| WHITE | 027076528 |
