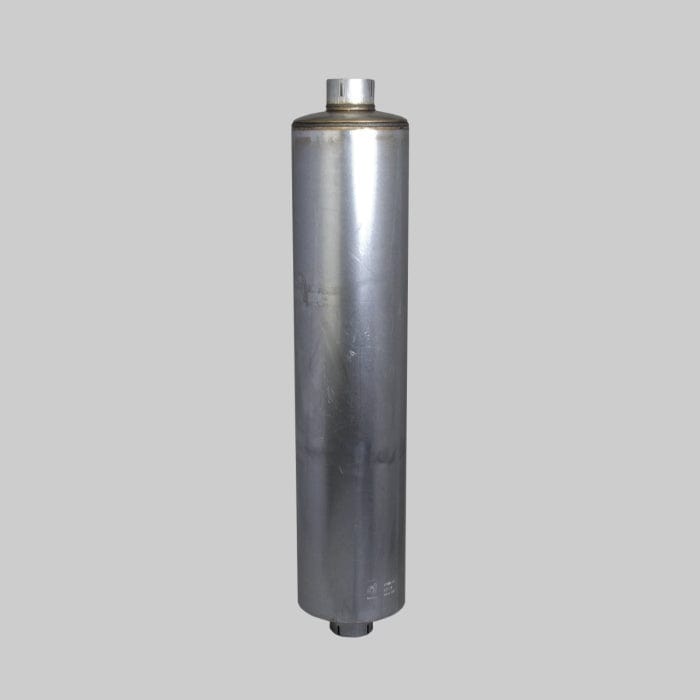

Muffler, Round Style 1 Wrapped - Donaldson M100464
Muffler, Round Style 1 Wrapped - Donaldson M100464
Regular price
£477.47
Regular price
Sale price
£477.47
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M100464
Muffler, Round Style 1 Wrapped| Inlet Diameter | 4.02 inch (102.11 mm) |
| Outlet Diameter | 4.02 inch (102.11 mm) |
| Body Diameter Maximum | 10.36 inch (263.1 mm) |
| Body Length | 44.56 inch (1131.8 mm) |
| Overall Length | 51.00 inch (1295.4 mm) |
| Rated Flow LR | 819 cfm (23.2 m³/min) |
| Rated Flow MR | 1158 cfm (32.8 m³/min) |
| Rated Flow HR | 1420 cfm (40.2 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 25 dBA |
| Attenuation HR | 35 dBA |
| Type | Wrapped |
| Style | Style 1 |
Share
Collapsible content
Specifications
Attributes
- Inlet Diameter: 102.11 mm (4.02 inch)
- Outlet Diameter: 102.11 mm (4.02 inch)
- Body Diameter Maximum: 263.1 mm (10.36 inch)
- Body Length: 1131.8 mm (44.56 inch)
- Overall Length: 1295.4 mm (51.00 inch)
- Rated Flow LR: 23.2 m³/min (819 cfm)
- Rated Flow MR: 32.8 m³/min (1158 cfm)
- Rated Flow HR: 40.2 m³/min (1420 cfm)
- Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
- Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
- Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
- Attenuation LR: 25 dBA
- Attenuation HR: 35 dBA
- Type: Wrapped
- Style: Style 1
Packaged Dimensions
- Packaged Length: 1.325 m (53.00 inch)
- Packaged Width: 0.263 m (10.50 inch)
- Packaged Height: 0.275 m (11.00 inch)
- Packaged Weight: 22.632 kg (49.85 lb)
- Packaged Volume: 0.099 m3 (3.54 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 125850-08
- HTS Code: 8708923500
- UPC Code: 742330005491
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 3671 | |
| A P PARTS | 3665 | |
| A P PARTS | 3673 | |
| ALLISON | 12322848 | |
| BADGER | LG77625 | |
| BARBER-GREENE | 28R15 | |
| BLUEBIRD | 2200815613 | |
| BROCKWAY | 535671 | |
| BROCKWAY | 541362 | |
| CHAMPION ROAD | 11872 | |
| CHAMPION ROAD | 11873 | |
| CHRYSLER | 3640908 | |
| CHRYSLER | 3820392 | |
| CLARK | 6003255 | |
| CRANE CARRIER | 21057 | |
| CRANE CARRIER | 21067 | |
| CUB CADET | DCM100464 | |
| DART | WTM100104 | |
| DART | WZM100464 | |
| DIAMOND REO | 992L13 | |
| DIAMOND REO | 992L1 | |
| FIELD QUEEN | 73331 | |
| FMC | 38A1007 | |
| FMC | 8A6256 | |
| FMC | 8A6256A | |
| FMC | 12A3513 | |
| FORD | E0HT5225EB | |
| FORD | D7HT5225AJA | |
| FORD | D9HS5225JA | |
| FORD | 9575M100464 | |
| FORD | C1TT5230BD | |
| FORD | D8HZ5230AE | |
| FORD | D5HA5225HA | |
| FORD | 9575WZM100464P | |
| FORD | D5HZ5230G | |
| FORD | E2HT5225BHA | |
| FORD | E3HT5225RA | |
| FORD | D8HS5225CA | |
| FORD | D6HS5230AA | |
| FORD | E5HZ5230B | |
| FREIGHTLINER | A04105611 | |
| FREIGHTLINER | A04105610 | |
| FREIGHTLINER | A0410561 | |
| FREIGHTLINER | A04109610 | |
| FREIGHTLINER | A04106181 | |
| FREIGHTLINER | A0410618 | |
| FREIGHTLINER | A0411447000 | |
| FREIGHTLINER | A04114470 | |
| FREIGHTLINER | DNM100464 | |
| FREIGHTLINER | A04116941 | |
| FREIGHTLINER | A04114471 | |
| FREIGHTLINER | WZM100464 | |
| GRADALL | 85403160 | |
| GROVE | 7642000020 | |
| GROVE | 9642100072 | |
| GROVE | 7642000051 | |
| GROVE | 7642000045 | |
| HEAVY DUTY MFG | 31148 | |
| HEAVY DUTY MFG | 31149 | |
| INTERNATIONAL | 442937C1 | |
| INTERNATIONAL | 442926C1 | |
| INTERNATIONAL | 467364C1 | |
| INTERNATIONAL | 68010 | |
| INTERNATIONAL | 434836C1 | |
| INTERNATIONAL | DCM100464 | |
| INTERNATIONAL | 549483C1 | |
| INTERNATIONAL | 431792C1 | |
| INTERNATIONAL | 431256C1 | |
| INTERNATIONAL | 499495C1 | |
| INTERNATIONAL | 523719C1 | |
| INTERNATIONAL | 454308R91 | |
| INTERNATIONAL | 454305C91 | |
| IVECO | 875390 | |
| KOEHRING | 125666 | |
| KOEHRING | 4204375 | |
| KOEHRING | 4204376 | |
| KOEHRING | 846100279 | |
| KOEHRING | 420V4375 | |
| KOEHRING | 420V4386 | |
| KOEHRING | 420V4376 | |
| LEROI | 78254 | |
| LINK BELT | 8A6256 | |
| MACK | 1ME19301P8 | |
| MACK | 1ME19301P9 | |
| MACK | 2191WZM100464 | |
| MACK | 2ME371 | |
| MACK | 2ME373 | |
| MACK | 2ME376 | |
| MACK | 2ME29301P12 | |
| MACK | 2ME29301P5 | |
| MACK | 2ME29301P3 | |
| MANITOWOC | 9642100072 | |
| MARATHON EQPT LTD | 4073737 | |
| MAREMONT | ZH201 | |
| MI-JACK | 4073737 | |
| NELSON | 86152M | |
| NELSON | 86111M | |
| NELSON | 86215M | |
| P & H | 27Q206 | |
| PETTIBONE | A1204214 | |
| RAINBOW MANUFACTURING | 18410 | |
| RENAULT VI | 5430119091 | |
| REXNORD | 2980518592 | |
| RIKER | 10908 | |
| STEMCO | 1909870 | |
| STEMCO | 1909869 | |
| STEMCO | 1909350 | |
| STEMCO | 1909336 | |
| TAYLOR | 2403054 | |
| TESSI TRUCK EXHAUST INC | 132038 | |
| UPTIME PARTS | 230010010 | |
| VOLVO | 230013815 | |
| VOLVO | 49015280 | |
| VOLVO | 49014272 | |
| VOLVO | 49039308 | |
| VOLVO | 049014272 | |
| VOLVO | 49047016 | |
| VOLVO | 049015280 | |
| VOLVO | 27076531 | |
| VOLVO | 049039308 | |
| VOLVO | 049047016 | |
| VOLVO | 230010009 | |
| VOLVO | 230010010 | |
| VOLVO | G717214 | |
| VOLVO | C4000035 | |
| VOLVO | V1111114 | |
| VOLVO | 1111114 | |
| VOLVO | V1111113 | |
| WALKER MANUFACTURING | 22835 | |
| WESTERN STAR TRUCK | 49037185 | |
| WESTERN STAR TRUCK | 49015280 | |
| WESTERN STAR TRUCK | 1050221 | |
| WHITE | 27137738 | |
| WHITE | 230010010 | |
| WHITE | 49037185 | |
| WHITE | 230010003 | |
| WHITE | 027137738 | |
| WHITE | 230010052 | |
| WHITE | 7GB010 |
