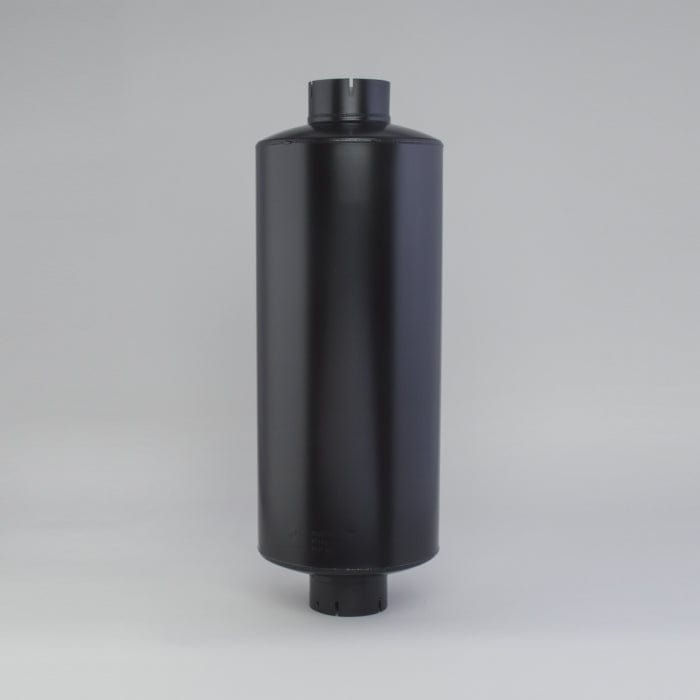

Muffler, Round Style 1 - Donaldson M120747
Muffler, Round Style 1 - Donaldson M120747
Regular price
£446.84
Regular price
Sale price
£446.84
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M120747
Muffler, Round Style 1| Inlet Diameter | 5.03 inch (127.64 mm) |
| Outlet Diameter | 5.03 inch (127.64 mm) |
| Body Diameter Maximum | 11.84 inch (300.7 mm) |
| Body Length | 25.75 inch (654 mm) |
| Overall Length | 34.00 inch (863.6 mm) |
| Rated Flow LR | 1762 cfm (49.9 m³/min) |
| Rated Flow MR | 2447 cfm (69.3 m³/min) |
| Rated Flow HR | 2447 cfm (69.3 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 12 dBA |
| Attenuation HR | 18 dBA |
| Style | Style 1 |
Share
Collapsible content
Specifications
Attributes
- Inlet Diameter: 127.64 mm (5.03 inch)
- Outlet Diameter: 127.64 mm (5.03 inch)
- Body Diameter Maximum: 300.7 mm (11.84 inch)
- Body Length: 654 mm (25.75 inch)
- Overall Length: 863.6 mm (34.00 inch)
- Rated Flow LR: 49.9 m³/min (1762 cfm)
- Rated Flow MR: 69.3 m³/min (2447 cfm)
- Rated Flow HR: 69.3 m³/min (2447 cfm)
- Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
- Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
- Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
- Attenuation LR: 12 dBA
- Attenuation HR: 18 dBA
- Style: Style 1
Packaged Dimensions
- Packaged Length: 0.875 m (35.00 inch)
- Packaged Width: 0.306 m (12.25 inch)
- Packaged Height: 0.310 m (12.40 inch)
- Packaged Weight: 15.890 kg (35.00 lb)
- Packaged Volume: 0.086 m3 (3.08 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 125850-08
- HTS Code: 8708923500
- UPC Code: 742330114049
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| NELSON | 201575N |
