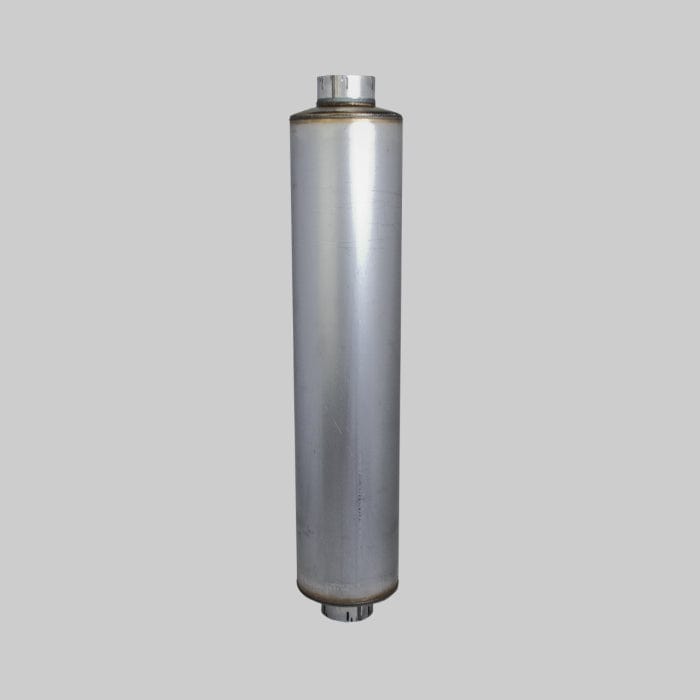

Muffler, Round Style 1 - Donaldson M100944

Muffler, Round Style 1 - Donaldson M100944

£289.37
£289.37
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson M100944

Muffler, Round Style 1
Inlet Diameter 5.03 inch (127.64 mm)
Outlet Diameter 5.03 inch (127.64 mm)
Body Diameter Maximum 10.06 inch (255.5 mm)
Body Length 44.25 inch (1124 mm)
Overall Length 51.00 inch (1295.4 mm)
Rated Flow LR 1762 cfm (49.9 m³/min)
Rated Flow MR 2493 cfm (70.6 m³/min)
Rated Flow HR 2949 cfm (83.5 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 16 dBA
Attenuation HR 23 dBA
Style Style 1
View full details

Specifications

Attributes

  • Inlet Diameter: 127.64 mm (5.03 inch)
  • Outlet Diameter: 127.64 mm (5.03 inch)
  • Body Diameter Maximum: 255.5 mm (10.06 inch)
  • Body Length: 1124 mm (44.25 inch)
  • Overall Length: 1295.4 mm (51.00 inch)
  • Rated Flow LR: 49.9 m³/min (1762 cfm)
  • Rated Flow MR: 70.6 m³/min (2493 cfm)
  • Rated Flow HR: 83.5 m³/min (2949 cfm)
  • Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
  • Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
  • Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
  • Attenuation LR: 16 dBA
  • Attenuation HR: 23 dBA
  • Style: Style 1

Packaged Dimensions

  • Packaged Length: 1.328 m (53.13 inch)
  • Packaged Width: 0.263 m (10.50 inch)
  • Packaged Height: 0.263 m (10.50 inch)
  • Packaged Weight: 14.760 kg (32.51 lb)
  • Packaged Volume: 0.095 m3 (3.39 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-07
  • HTS Code: 8708923500
  • UPC Code: 742330161234

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
FREIGHTLINER 0417179006
FREIGHTLINER 417179006
IMPERIAL MFM100944
KENWORTH 1413842003
KENWORTH D45000282
KENWORTH MFM100944
MACK 1NPN90506
MERCEDES-BENZ 0417179006
PACCAR 1413842003
PACCAR MFM100944
PETERBILT MFM100944
VOLVO 20354626
WESTERN STAR TRUCK 230013463
