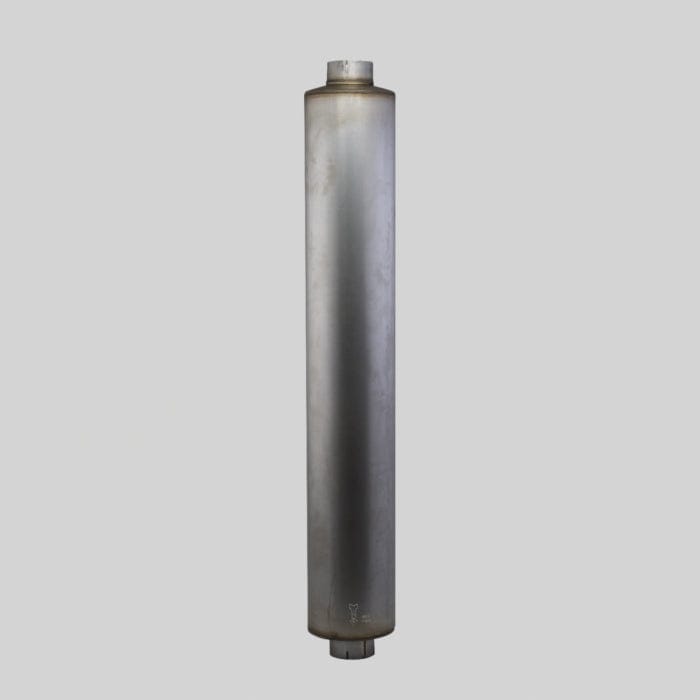

Muffler, Round Style 1 - Donaldson M100807

Muffler, Round Style 1 - Donaldson M100807

£480.55
£480.55
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson M100807

Muffler, Round Style 1
Inlet Diameter 5.03 inch (127.64 mm)
Outlet Diameter 5.03 inch (127.64 mm)
Body Diameter Maximum 10.08 inch (256 mm)
Body Length 59.75 inch (1517.6 mm)
Overall Length 66.50 inch (1689 mm)
Rated Flow LR 1504 cfm (42.6 m³/min)
Rated Flow MR 2129 cfm (60.3 m³/min)
Rated Flow HR 2610 cfm (73.9 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 19 dBA
Attenuation HR 25 dBA
Style Style 1
View full details

Specifications

Attributes

  • Inlet Diameter: 127.64 mm (5.03 inch)
  • Outlet Diameter: 127.64 mm (5.03 inch)
  • Body Diameter Maximum: 256 mm (10.08 inch)
  • Body Length: 1517.6 mm (59.75 inch)
  • Overall Length: 1689 mm (66.50 inch)
  • Rated Flow LR: 42.6 m³/min (1504 cfm)
  • Rated Flow MR: 60.3 m³/min (2129 cfm)
  • Rated Flow HR: 73.9 m³/min (2610 cfm)
  • Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
  • Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
  • Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
  • Attenuation LR: 19 dBA
  • Attenuation HR: 25 dBA
  • Style: Style 1

Packaged Dimensions

  • Packaged Length: 1.700 m (68.00 inch)
  • Packaged Width: 0.269 m (10.75 inch)
  • Packaged Height: 0.275 m (11.00 inch)
  • Packaged Weight: 24.970 kg (55.00 lb)
  • Packaged Volume: 0.130 m3 (4.65 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-07
  • HTS Code: 8708923500
  • UPC Code: 742330005620

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
A P PARTS 3873
AP EXHAUST PRODUCTS INC 3873
EAGLE TRUCK PRODUCTS E114
FORD E8HT5225LA
FREIGHTLINER DNM100807
HEAVY DUTY MFG 31163
INTERNATIONAL DCM100807
NELSON 86626M
RIKER 10922
RIKER 10021
STEMCO 1901231
TRUCKEX 3873
WALKER MANUFACTURING 22938
