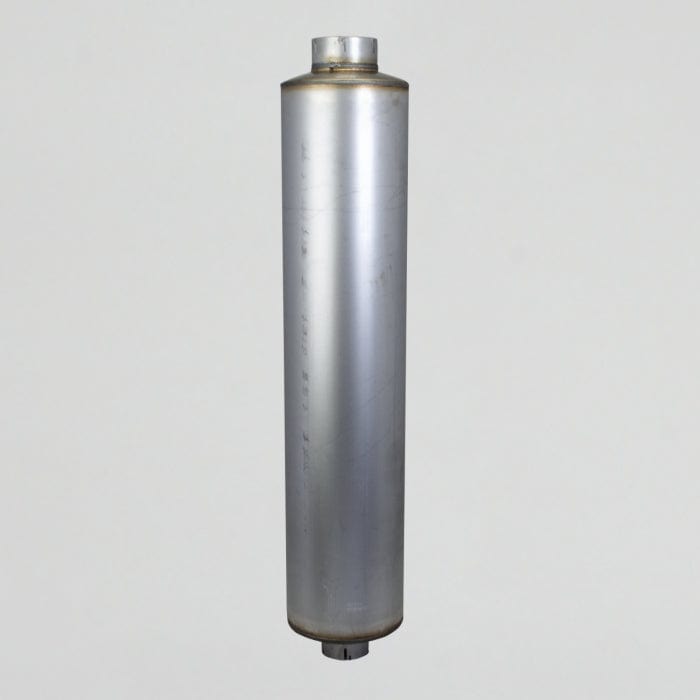

Muffler, Round Style 1 - Donaldson M100695

Muffler, Round Style 1 - Donaldson M100695

£290.16
£290.16
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson M100695

Muffler, Round Style 1
Inlet Diameter 4.02 inch (102 mm)
Outlet Diameter 5.03 inch (127.64 mm)
Body Diameter Maximum 10.06 inch (255.52 mm)
Body Length 44.25 inch (1123.95 mm)
Overall Length 51.00 inch (1295.4 mm)
Rated Flow LR 890 cfm (25.2 m³/min)
Rated Flow MR 1261 cfm (35.7 m³/min)
Rated Flow HR 1543 cfm (43.7 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 19 dBA
Attenuation HR 25 dBA
Style Style 1
View full details

Specifications

Attributes

  • Inlet Diameter: 102 mm (4.02 inch)
  • Outlet Diameter: 127.64 mm (5.03 inch)
  • Body Diameter Maximum: 255.52 mm (10.06 inch)
  • Body Length: 1123.95 mm (44.25 inch)
  • Overall Length: 1295.4 mm (51.00 inch)
  • Rated Flow LR: 25.2 m³/min (890 cfm)
  • Rated Flow MR: 35.7 m³/min (1261 cfm)
  • Rated Flow HR: 43.7 m³/min (1543 cfm)
  • Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
  • Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
  • Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
  • Attenuation LR: 19 dBA
  • Attenuation HR: 25 dBA
  • Style: Style 1

Packaged Dimensions

  • Packaged Length: 1.325 m (53.00 inch)
  • Packaged Width: 0.263 m (10.50 inch)
  • Packaged Height: 0.263 m (10.50 inch)
  • Packaged Weight: 12.258 kg (27.00 lb)
  • Packaged Volume: 0.095 m3 (3.38 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-06
  • HTS Code: 8708923500
  • UPC Code: 742330005569

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
A P PARTS 3715
A P PARTS 3715Q
AP EXHAUST PRODUCTS INC 3715
DYNAFLEX 874050205
EAGLE TRUCK PRODUCTS E115
FORD 9576M100695
FREIGHTLINER DNM100695
HEAVY DUTY MFG 31045
INTERNATIONAL 2585728C1
INTERNATIONAL DCM100695
INTERNATIONAL 1657436C1
INTERNATIONAL 1518317C1
NELSON 86535M
NELSON 86547M
RIKER 10945
STEMCO 1901205
STEMCO 1901234
TRUCKEX 3715
TRUCKEX 3893
UPTIME PARTS 8070241
VOLVO 8070241
WALKER MANUFACTURING 1901378
WALKER MANUFACTURING 22966
WALKER MANUFACTURING 22937
