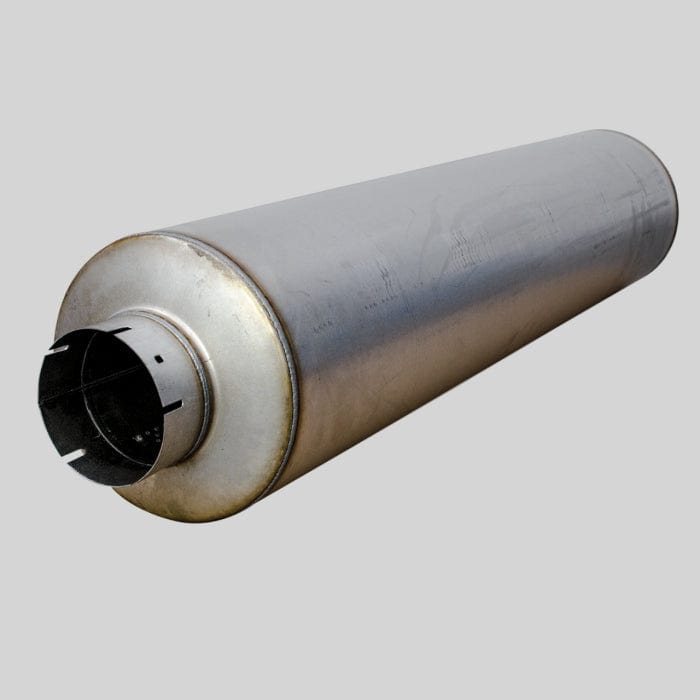

Muffler, Round Style 1 - Donaldson M100465
Muffler, Round Style 1 - Donaldson M100465
Regular price
£174.79
Regular price
Sale price
£174.79
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M100465
Muffler, Round Style 1| Inlet Diameter | 5.03 inch (127.64 mm) |
| Outlet Diameter | 5.03 inch (127.64 mm) |
| Body Diameter Maximum | 10.06 inch (255.5 mm) |
| Body Length | 44.44 inch (1128.8 mm) |
| Overall Length | 51.00 inch (1295.4 mm) |
| Rated Flow LR | 1610 cfm (45.6 m³/min) |
| Rated Flow MR | 2274 cfm (64.4 m³/min) |
| Rated Flow HR | 2790 cfm (79 m³/min) |
| Back Pressure Low-Range | 0.31 inch Hg (7.9 mm Hg) |
| Back Pressure Mid-Range | 0.62 inch Hg (15.7 mm Hg) |
| Back Pressure High-Range | 0.94 inch Hg (23.9 mm Hg) |
| Attenuation LR | 10 dBA |
| Attenuation HR | 15 dBA |
| Style | Style 1 |
Share
Collapsible content
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 3699 | |
| A P PARTS | 3699Q | |
| ACRAFIT | M10130 | |
| ACRAFIT | M10682 | |
| ADVANCE MIXER | 14354 | |
| ADVANCE MIXER | 14534 | |
| AUTO JET | B500500 | |
| BLUEBIRD | 5122291 | |
| BLUEBIRD | 1522291 | |
| BLUEBIRD | 01522291 | |
| COLT | 122807 | |
| CRANE CARRIER | 21078 | |
| CUB CADET | DCM100465 | |
| DART | MFM100465 | |
| DART | MPM100465 | |
| DYNAFLEX | 87500130 | |
| DYNAFLEX | 87500130Q | |
| EAGLE TRUCK PRODUCTS | E112 | |
| EX AIR | 551045 | |
| FORD | E05S5230CA | |
| FORD | D7HT5230BEA | |
| FORD | D7HT5225CLA | |
| FORD | E2HZ5230L | |
| FORD | D8HT5230CA | |
| FORD | D8HT5230BA | |
| FORD | 9575MPM100465 | |
| FORD | 9575MPM100465P | |
| FORD | D7HT5230GEA | |
| FORD | D7HT5230FRA | |
| FORD | D8HZ5230AF | |
| FORD | D8HZ5230B | |
| FORD | D8HZ5230AT | |
| FORD | D8HZ5230F | |
| FORD | E2HT5225BGA | |
| FORD | E2HT5225BCA | |
| FORD | D0HT5225CLA | |
| FORD | E2HT5225L | |
| FORD | E2HT5225BMA | |
| FORD | E2HT5225BM1A | |
| FORD | 9575M100465 | |
| FREIGHTLINER | DNM100465 | |
| FREIGHTLINER | A04118430 | |
| FREIGHTLINER | A0411843 | |
| FREIGHTLINER | A04118400 | |
| FREIGHTLINER | A04116940 | |
| FREIGHTLINER | A04120940 | |
| FREIGHTLINER | A0412094 | |
| FREIGHTLINER | A04129660 | |
| FREIGHTLINER | A0412966 | |
| FREIGHTLINER | A04125560 | |
| GROVE | 7624000049 | |
| GROVE | 7642000603 | |
| HEAVY DUTY MFG | 31165 | |
| INGERSOLL RAND | 57037558 | |
| INTERNATIONAL | 504886C1 | |
| INTERNATIONAL | 501464C1 | |
| INTERNATIONAL | 486118C1 | |
| INTERNATIONAL | 486110C1 | |
| INTERNATIONAL | 486109R91 | |
| INTERNATIONAL | 485934C1 | |
| INTERNATIONAL | DCM100465 | |
| INTERNATIONAL | DONM100465 | |
| INTERNATIONAL | 2585727C1 | |
| INTERNATIONAL | 586607C1 | |
| INTERNATIONAL | 586606C1 | |
| KOEHRING | 7170177 | |
| MACK | 2191M100465 | |
| MACK | 2ME49301P11 | |
| MACK | 2ME29301P1 | |
| MACK | 2ME29301P13 | |
| MACK | 2ME29301P14 | |
| MACK | 2ME29301P22 | |
| MACK | 2ME49301P2 | |
| MACK | 2ME49301P4 | |
| MACK | 2ME49301P7 | |
| MACK | 2ME49601P7 | |
| MANITOWOC | 7642000603 | |
| NELSON | 86682M | |
| NELSON | 86195M | |
| NELSON | 86130M | |
| OSHKOSH | 1488910 | |
| OSHKOSH | 107789B | |
| OSHKOSH | 109820B | |
| OSHKOSH | 69941BX | |
| OSHKOSH | 69941B | |
| RIKER | 10028 | |
| RIKER | 10020 | |
| RIKER | M5010 | |
| RIMPULL | 225021 | |
| STEMCO | 1901353 | |
| STEMCO | 1901352 | |
| STEMCO | 1901382 | |
| STEMCO | 1909892 | |
| STEMCO | 1901107 | |
| TAYLOR | 2403144 | |
| TEREX | 7170177 | |
| TESSI TRUCK EXHAUST INC | 135511 | |
| TESSI TRUCK EXHAUST INC | M5510SP | |
| TRUCKEX | 3699M | |
| TRUCKEX | 3699 | |
| UPTIME PARTS | 1111110 | |
| VOLVO | 230013807 | |
| VOLVO | 49045022 | |
| VOLVO | 49039309 | |
| VOLVO | 049045022 | |
| VOLVO | 049044073 | |
| VOLVO | 230010064 | |
| VOLVO | V1111110 | |
| VOLVO | 230010056 | |
| VOLVO | 1111110 | |
| VOLVO | V8056009 | |
| VOLVO | 230010070 | |
| VOLVO | 230013411 | |
| VOLVO | 230013420 | |
| VOLVO | 230013410 | |
| WALKER MANUFACTURING | 22963 | |
| WALKER MANUFACTURING | 22925 | |
| WALKER MANUFACTURING | 22924 | |
| WALKER MANUFACTURING | 22920 | |
| WESTERN STAR TRUCK | 230013420 | |
| WESTERN STAR TRUCK | 49045022 | |
| WESTERN STAR TRUCK | 49044073 | |
| WESTERN STAR TRUCK | MPM100465 | |
| WHITE | 49044073 |
