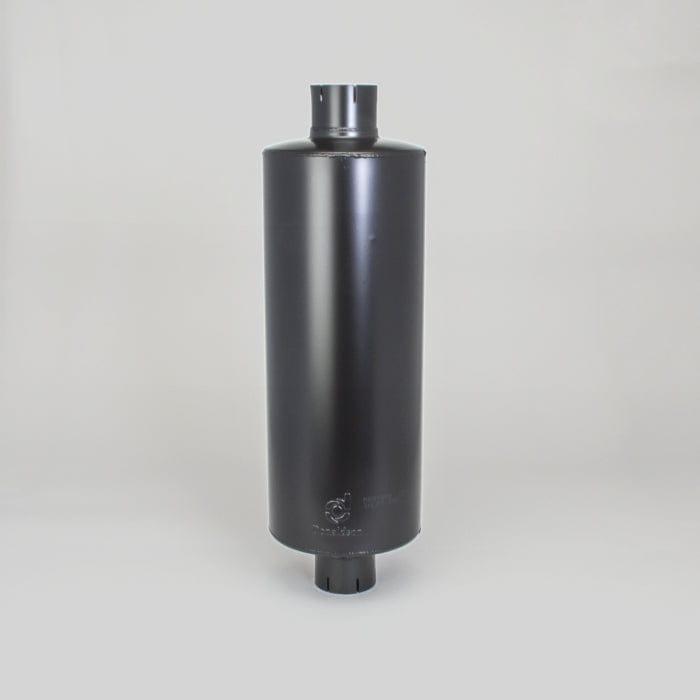

Muffler, Round Style 1 - Donaldson M091046
Muffler, Round Style 1 - Donaldson M091046
Regular price
£344.73
Regular price
Sale price
£344.73
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M091046
Muffler, Round Style 1| Inlet Diameter | 3.51 inch (89.28 mm) |
| Outlet Diameter | 3.51 inch (89.28 mm) |
| Body Diameter Maximum | 9.00 inch (228.6 mm) |
| Body Length | 21.75 inch (552.4 mm) |
| Overall Length | 29.00 inch (736.6 mm) |
| Rated Flow LR | 865 cfm (24.5 m³/min) |
| Rated Flow MR | 1201 cfm (34 m³/min) |
| Rated Flow HR | 1526 cfm (43.2 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 12 dBA |
| Attenuation HR | 18 dBA |
| Style | Style 1 |
Share
Collapsible content
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| GROVE | 7642000012 | |
| LETOURNEAU | 0868829 | |
| NELSON | 201565N | |
| VERMEER | 296277847 |
