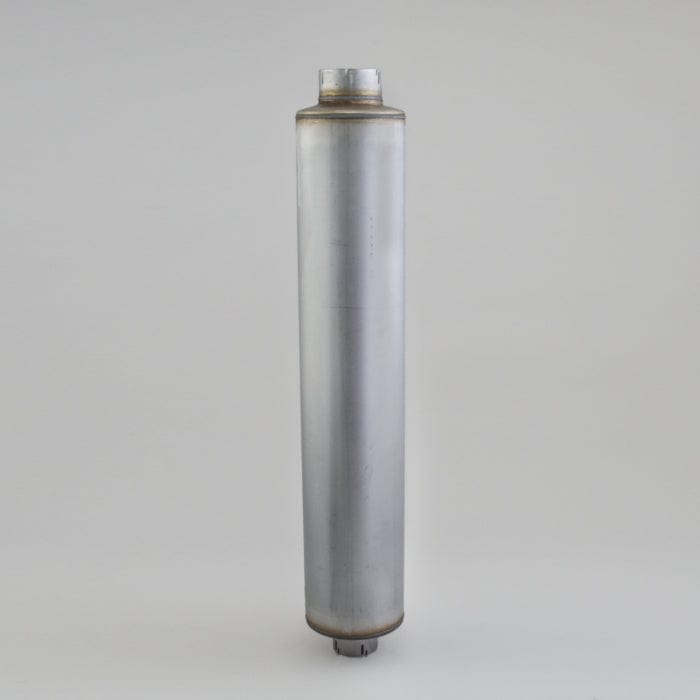

Muffler, Round Style 1 - Donaldson M090781
Muffler, Round Style 1 - Donaldson M090781
Regular price
£239.32
Regular price
Sale price
£239.32
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M090781
Muffler, Round Style 1| Inlet Diameter | 4.02 inch (102.11 mm) |
| Outlet Diameter | 5.03 inch (127.64 mm) |
| Body Diameter Maximum | 9.01 inch (228.85 mm) |
| Body Length | 44.44 inch (1128.78 mm) |
| Overall Length | 50.98 inch (1295 mm) |
| Rated Flow LR | 1522 cfm (43.1 m³/min) |
| Rated Flow MR | 2154 cfm (61 m³/min) |
| Rated Flow HR | 2638 cfm (74.7 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 15 dBA |
| Attenuation HR | 20 dBA |
| Style | Style 1 |
Share
Collapsible content
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 3731 | |
| A P PARTS | 3731Q | |
| A P PARTS | 4218 | |
| A P PARTS | 3712 | |
| A P PARTS | 3712Q | |
| A P PARTS | 3890 | |
| ACRAFIT | M10514 | |
| ACRAFIT | M10740 | |
| AP EXHAUST PRODUCTS INC | 3712 | |
| DART | MFM090545 | |
| DART | MOM090545 | |
| DYNAFLEX | 874050514 | |
| DYNAFLEX | 8740505140Q | |
| DYNAFLEX | 874050514Q | |
| DYNAFLEX | 8745050514Q | |
| FORD | 9575M090545 | |
| FORD | 9575M090547 | |
| FORD | 9575MOM090547P | |
| FORD | 9575M090781 | |
| HEAVY DUTY MFG | 31514 | |
| HEAVY DUTY MFG | 30781 | |
| INTERNATIONAL | DCM090781 | |
| INTERNATIONAL | 584173C1 | |
| INTERNATIONAL | 582123C1 | |
| INTERNATIONAL | 582122C1 | |
| MACK | 2ME3102 | |
| NELSON | 86740M | |
| NELSON | 86514M | |
| PAI INDUSTRIES INC | EEM1895 | |
| RIKER | 90945 | |
| STEMCO | 1901361 | |
| STEMCO | 1909377 | |
| TRUCKEX | 3712 | |
| TRUCKEX | 3890 | |
| VERMEER | 284428001 | |
| VOLVO | M090547 | |
| WALKER MANUFACTURING | 22896 | |
| WALKER MANUFACTURING | 22941 |
