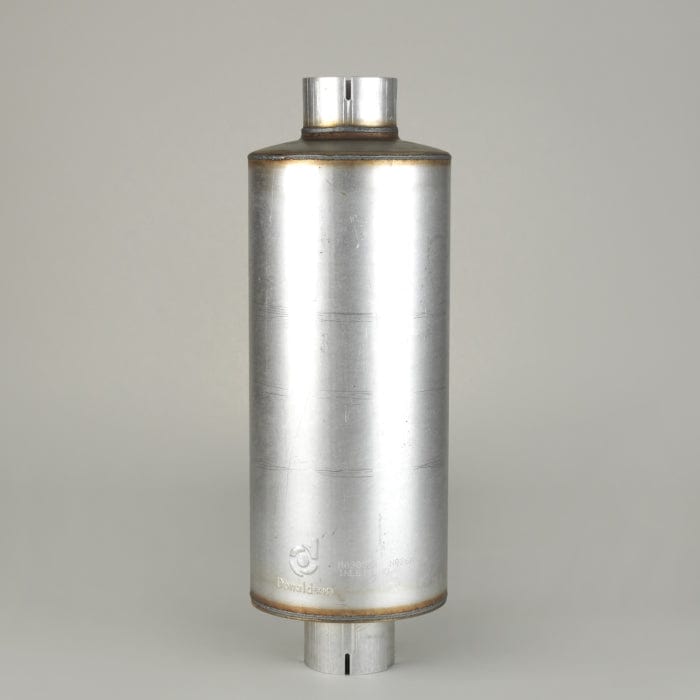

Muffler, Round Style 1 - Donaldson M090594
Muffler, Round Style 1 - Donaldson M090594
Regular price
£212.30
Regular price
Sale price
£212.30
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M090594
Muffler, Round Style 1| Inlet Diameter | 4.02 inch (102.11 mm) |
| Outlet Diameter | 4.02 inch (102.11 mm) |
| Body Diameter Maximum | 9.02 inch (229 mm) |
| Body Length | 19.75 inch (501.65 mm) |
| Overall Length | 26.50 inch (673.1 mm) |
| Rated Flow LR | 961 cfm (27.2 m³/min) |
| Rated Flow MR | 1006 cfm (28.5 m³/min) |
| Rated Flow HR | 1667 cfm (47.2 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 10 dBA |
| Attenuation HR | 15 dBA |
| Style | Style 1 |
Share
Collapsible content
Specifications
Attributes
- Inlet Diameter: 102.11 mm (4.02 inch)
- Outlet Diameter: 102.11 mm (4.02 inch)
- Body Diameter Maximum: 229 mm (9.02 inch)
- Body Length: 501.65 mm (19.75 inch)
- Overall Length: 673.1 mm (26.50 inch)
- Rated Flow LR: 27.2 m³/min (961 cfm)
- Rated Flow MR: 28.5 m³/min (1006 cfm)
- Rated Flow HR: 47.2 m³/min (1667 cfm)
- Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
- Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
- Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
- Attenuation LR: 10 dBA
- Attenuation HR: 15 dBA
- Style: Style 1
Packaged Dimensions
- Packaged Length: 0.772 m (30.88 inch)
- Packaged Width: 0.269 m (10.75 inch)
- Packaged Height: 0.273 m (10.90 inch)
- Packaged Weight: 6.783 kg (14.94 lb)
- Packaged Volume: 0.059 m3 (2.09 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 125850-07
- HTS Code: 8708923500
- UPC Code: 742330005293
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 3888 | |
| AP EXHAUST PRODUCTS INC | 3888 | |
| ASTEC UNDERGROUND | AU103151 | |
| CADILLAC & LAKE CITY ROADWAY | 131204 | |
| CASE/CASE IH | NM090594 | |
| CETCO INCORPORATED | 1243122H1 | |
| CMI | 4013311000 | |
| CMI | 3114112501 | |
| CMI | 004013311000 | |
| CMI | 413311 | |
| CUB CADET | DCM090594 | |
| DRESSER | 1243122H1 | |
| DRESSER | B253311 | |
| DRESSER | 1432461H1 | |
| DYNAFLEX | 87400594 | |
| DYNAFLEX | 87400594Q | |
| FMC | 348027 | |
| FORD | 9575M090594 | |
| FRANKLIN | 1511657 | |
| FREIGHTLINER | DNM090594 | |
| FURUKAWA | 124312241 | |
| FURUKAWA | 1243122H1 | |
| GRADALL | 86983714 | |
| GROVE | 7642000093 | |
| HEAVY DUTY MFG | 31252 | |
| HEAVY DUTY MFG | HD414 | |
| HOIST LIFTTRUCK MANUFACTURING | 140760801 | |
| HOIST LIFTTRUCK MANUFACTURING | M14958 | |
| INTERNATIONAL | DCM090594 | |
| KOMATSU | 1243122H1 | |
| KOMATSU | 1432461H1 | |
| MACK | 2191M090594 | |
| MANITOWOC | 7642000093 | |
| MORBARK | 29323061 | |
| NELSON | 86560M | |
| RAINBOW MANUFACTURING | 18421 | |
| REEDRILL | 70930 | |
| RIKER | 91910 | |
| RIKER | 90910 | |
| RIKER | XD414 | |
| STEMCO | 1909316 | |
| SULLAIR | 02250186513 | |
| TRUCKEX | 3888 | |
| WALKER MANUFACTURING | 22572 |
