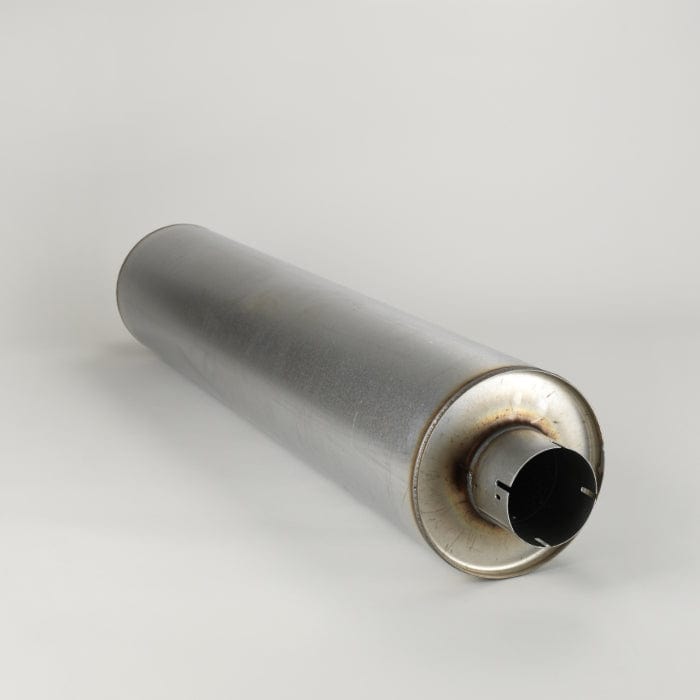

Muffler, Round Style 1 - Donaldson M090544
Muffler, Round Style 1 - Donaldson M090544
Regular price
£226.03
Regular price
Sale price
£226.03
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M090544
Muffler, Round Style 1| Inlet Diameter | 4.02 inch (102.11 mm) |
| Outlet Diameter | 4.02 inch (102.11 mm) |
| Body Diameter Maximum | 9.01 inch (228.85 mm) |
| Body Length | 44.44 inch (1128.78 mm) |
| Overall Length | 51.00 inch (1295.4 mm) |
| Rated Flow LR | 1158 cfm (32.8 m³/min) |
| Rated Flow MR | 1639 cfm (46.4 m³/min) |
| Rated Flow HR | 2006 cfm (56.8 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 13 dBA |
| Attenuation HR | 18 dBA |
| Style | Style 1 |
Share
Collapsible content
Specifications
Attributes
- Inlet Diameter: 102.11 mm (4.02 inch)
- Outlet Diameter: 102.11 mm (4.02 inch)
- Body Diameter Maximum: 228.85 mm (9.01 inch)
- Body Length: 1128.78 mm (44.44 inch)
- Overall Length: 1295.4 mm (51.00 inch)
- Rated Flow LR: 32.8 m³/min (1158 cfm)
- Rated Flow MR: 46.4 m³/min (1639 cfm)
- Rated Flow HR: 56.8 m³/min (2006 cfm)
- Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
- Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
- Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
- Attenuation LR: 13 dBA
- Attenuation HR: 18 dBA
- Style: Style 1
Packaged Dimensions
- Packaged Length: 4.58 FT
- Packaged Width: 0.81 FT
- Packaged Height: 0.81 FT
- Packaged Weight: 11.804 kg (26.00 lb)
- Packaged Volume: 0.085 m3 (3.03 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 125850-07
- HTS Code: 8708923500
- UPC Code: 742330005248
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 3872 | |
| A P PARTS | 3666Q | |
| A P PARTS | 3664 | |
| A P PARTS | 3666 | |
| ACRAFIT | M10108 | |
| ACRAFIT | M10713 | |
| AG CHEM EQUIPMENT | 605405 | |
| AG CHEM EQUIPMENT | 514061 | |
| AGCO | AG605405 | |
| AP EXHAUST PRODUCTS INC | 3666 | |
| BADGER | 76043380 | |
| BADGER | 76079720 | |
| BROCKWAY | 528905 | |
| CHICAGO PNEUMATIC | IPS0848 | |
| CHRYSLER | 2831025 | |
| CHRYSLER | 2909336 | |
| CHRYSLER | 3634560 | |
| CRANE CARRIER | 21013 | |
| CRANE CARRIER | 21035 | |
| CUB CADET | DCM090544 | |
| CUMMINS | 211197 | |
| CUMMINS | 156815 | |
| DART | MFM090544 | |
| DIAMOND REO | N21470A | |
| DIAMOND REO | 992L12 | |
| DRESSER | 04320102 | |
| DRESSER | HW0449 | |
| DRESSER | 4603865H1 | |
| DYNAFLEX | 87400108 | |
| DYNAFLEX | 87400120 | |
| DYNAFLEX | 87400108Q | |
| DYNAFLEX | 87400131 | |
| DYNAFLEX | 87400131Q | |
| EAGLE TRUCK PRODUCTS | E102 | |
| EAGLE TRUCK PRODUCTS | E101 | |
| FMC | 8A4282 | |
| FMC | 2672160 | |
| FORD | 9575M090544 | |
| FORD | 9575MFM090544P | |
| FORD | E2HZ5230Y | |
| FORD | D2HA5230AA | |
| FORD | D0HA5230J | |
| FORD | D2HZ5230A | |
| FORD | C3TA5230S | |
| FORD | C3TZ5230F | |
| FORD | C6TZ5230F | |
| FORD | C6TZ5230AH | |
| FREIGHTLINER | DNM090544 | |
| FREIGHTLINER | A04105620 | |
| FREIGHTLINER | A0410617 | |
| FREIGHTLINER | A04106180 | |
| FREIGHTLINER | A04106171 | |
| FREIGHTLINER | A04106170 | |
| FWD | 10175510 | |
| FWD | 10175617 | |
| FWD | 00533938 | |
| FWD | 54962 | |
| FWD | 533938 | |
| GROVE | 7642000027 | |
| GROVE | 7642000022 | |
| GROVE | 76420000027 | |
| GROVE | 7642000088 | |
| HAVAM | HD4120 | |
| HEAVY DUTY MFG | 31022 | |
| HEAVY DUTY MFG | 31119 | |
| HEAVY DUTY MFG | 31020 | |
| HOIST LIFTTRUCK MANUFACTURING | M03845 | |
| HYSTER | 228355 | |
| HYSTER | 217149 | |
| INGERSOLL RAND | 90600434 | |
| INTERNATIONAL | 409828C1 | |
| INTERNATIONAL | 442930C1 | |
| INTERNATIONAL | 53247C91 | |
| INTERNATIONAL | 871834R91 | |
| INTERNATIONAL | 532347R91 | |
| INTERNATIONAL | 463026C1 | |
| INTERNATIONAL | 431517R91 | |
| INTERNATIONAL | 462513C91 | |
| INTERNATIONAL | 424858C1 | |
| INTERNATIONAL | 424857C1 | |
| INTERNATIONAL | 2585725C1 | |
| INTERNATIONAL | DCM090544 | |
| INTERNATIONAL | 454306R91 | |
| INTERNATIONAL | 422930C1 | |
| INTERNATIONAL | 425507C1 | |
| INTERNATIONAL | 979541R91 | |
| KENWORTH | MFM090544 | |
| KOEHRING | 125658 | |
| KOEHRING | 9949979 | |
| KOMATSU | 04320102 | |
| KOMATSU | 4603865H1 | |
| KOMATSU | 4320102 | |
| MACK | 1ME19301P5 | |
| MACK | 1ME19301P7 | |
| MACK | 1MEA19301P5 | |
| MACK | 2ME399 | |
| MACK | 2191MFM090544 | |
| MACK | 2ME49301 | |
| MACK | 1ME19301 | |
| MACK | 1ME19301P1 | |
| MACK | 2ME375 | |
| MACK | 2191M090544 | |
| MACK | 2ME3339 | |
| MANITOWOC | 7642000088 | |
| MANITOWOC | 5369880 | |
| MAREMONT | ZH203 | |
| MAREMONT | ZH202 | |
| MCNEILUS | 3234765 | |
| MERITOR | 102902 | |
| NELSON | 86108M | |
| NELSON | 86713M | |
| NELSON | 86131M | |
| OSHKOSH | 54906B | |
| OSHKOSH | 47786BX | |
| OSHKOSH | 47786B | |
| OSHKOSH | 3234765 | |
| P & H | 27Q762D1 | |
| P & H | 27Q7621D1 | |
| P & H | 27Z1138 | |
| P & H | 27Z285 | |
| PACCAR | 056005 | |
| PACCAR | 56005 | |
| PAI INDUSTRIES INC | EEM1879 | |
| PEERLESS PUMP | 2672160 | |
| PETTIBONE | R02318051 | |
| PETTIBONE | A2318051 | |
| RAYGO | 217326 | |
| REEDRILL | 70977 | |
| RIKER | 90916 | |
| RIKER | 9XD403 | |
| RIKER | 9XD404 | |
| RIKER | 9XD405 | |
| RIKER | 9XD408 | |
| RIKER | 9XD400 | |
| RIKER | 9XD448 | |
| RIKER | 8XD448 | |
| RIKER | M4090 | |
| RUSTON BUCYRUS | 46652000 | |
| STEMCO | 1901384 | |
| STEMCO | 1901358 | |
| STEMCO | 1901345 | |
| STEMCO | 1909353 | |
| STEMCO | 1909352 | |
| STEMCO | 1909349 | |
| STEMCO | 1909348 | |
| STEMCO | 1909344 | |
| STEMCO | 1909809 | |
| STEMCO | 1909306 | |
| STEMCO | 1909300 | |
| TAYLOR | 8613U | |
| TAYLOR | 2403151 | |
| TAYLOR | 2403034 | |
| TESSI TRUCK EXHAUST INC | 134591 | |
| TESSI TRUCK EXHAUST INC | M4590SP | |
| TRANSPORTATION ACCESSORIES | TAC400BB | |
| TRUCKEX | 3891 | |
| TRUCKEX | 3666 | |
| VOLVO | 49014273 | |
| VOLVO | 49014270 | |
| VOLVO | 49014271 | |
| VOLVO | 7GB010 | |
| VOLVO | 049014271 | |
| VOLVO | 85107180 | |
| VOLVO | 049014270 | |
| VOLVO | 049014273 | |
| VOLVO | 998580 | |
| VOLVO | 230010002 | |
| VOLVO | V1111111 | |
| VOLVO | 230010005 | |
| VOLVO | 1111111 | |
| VOLVO | 835866 | |
| VOLVO | 230010073 | |
| WABCO | HW0449 | |
| WALKER MANUFACTURING | 22965 | |
| WALKER MANUFACTURING | 22936 | |
| WALKER MANUFACTURING | 22828 | |
| WALKER MANUFACTURING | 22809 | |
| WALKER MANUFACTURING | 22834 | |
| WESTERN STAR TRUCK | 49014271 | |
| WHITE | 998580 | |
| WHITE | 230010005 | |
| WHITE | 230010002 | |
| WHITE | 9014271 |
