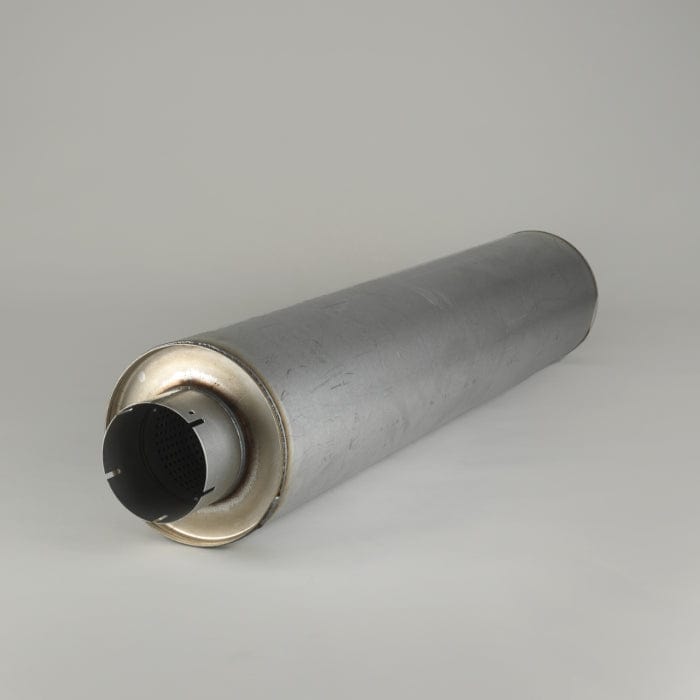

Muffler, Round Style 1 - Donaldson M090535
Muffler, Round Style 1 - Donaldson M090535
Regular price
£233.20
Regular price
Sale price
£233.20
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M090535
Muffler, Round Style 1| Inlet Diameter | 5.03 inch (127.64 mm) |
| Outlet Diameter | 5.03 inch (127.64 mm) |
| Body Diameter Maximum | 9.01 inch (228.9 mm) |
| Body Length | 44.44 inch (1128.8 mm) |
| Overall Length | 51.00 inch (1295.4 mm) |
| Rated Flow LR | 2338 cfm (66.2 m³/min) |
| Rated Flow MR | 3097 cfm (87.7 m³/min) |
| Rated Flow HR | 3260 cfm (92.3 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 12 dBA |
| Attenuation HR | 17 dBA |
| Style | Style 1 |
Share
Collapsible content
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 3667 | |
| A P PARTS | 3667Q | |
| A P PARTS | 3897 | |
| ACRAFIT | M10102 | |
| ACRAFIT | M10739 | |
| ALLIED SYSTEM | 11023 | |
| AP EXHAUST PRODUCTS INC | 3897 | |
| AP EXHAUST PRODUCTS INC | 3667 | |
| APE INDUSTRI AB | 3667 | |
| BADGER | 76047717 | |
| CASE/CASE IH | NM090535 | |
| CHARDONNET | 7409020600 | |
| CHICAGO PNEUMATIC | 6PS4174 | |
| CHRYSLER | 38228126 | |
| CHRYSLER | 3828126 | |
| CLARK | 1519325 | |
| CRANE CARRIER | 21037 | |
| CRANE CARRIER | 21070 | |
| CUB CADET | DCM090535 | |
| DART | MPM090535 | |
| DIAMOND REO | 992L11 | |
| DRESSER | PB2414 | |
| DYNAFLEX | 87500102 | |
| DYNAFLEX | 87500102Q | |
| EAGLE TRUCK PRODUCTS | E103 | |
| FORD | D3HZ5230M | |
| FORD | 9575M090535 | |
| FORD | 9575MPM090535P | |
| FORD | D3HA5230FA | |
| FREIGHTLINER | DNM090535 | |
| FREIGHTLINER | A04103420 | |
| FREIGHTLINER | A0410342 | |
| FREIGHTLINER | MPM090535 | |
| FREIGHTLINER | A04108791 | |
| FREIGHTLINER | A04108790 | |
| FREIGHTLINER | A0410879 | |
| GRADALL | 5840015 | |
| GROVE | 7642000028 | |
| GROVE | 76420000028 | |
| GROVE | 7624000028 | |
| HAVAM | HD4230 | |
| HAVAM | HD4130 | |
| HEAVY DUTY MFG | 31023 | |
| INGERSOLL RAND | 35829944 | |
| INGERSOLL RAND | 57031403 | |
| INTERNATIONAL | 504943C1 | |
| INTERNATIONAL | 442928C1 | |
| INTERNATIONAL | 501462C1 | |
| INTERNATIONAL | 434847C1 | |
| INTERNATIONAL | 753980C1 | |
| INTERNATIONAL | 1609419C1 | |
| INTERNATIONAL | 469801C1 | |
| INTERNATIONAL | 45430891 | |
| INTERNATIONAL | 2585724C1 | |
| INTERNATIONAL | DCM090535 | |
| KERSHAW | 144634 | |
| KOEHRING | 4204388 | |
| KOEHRING | 420V4388 | |
| KOMATSU | PB2414 | |
| LEROI | GD5840015 | |
| LINK BELT | 36A2273 | |
| MACK | 2191MPM090535 | |
| MACK | 2ME374P1 | |
| MACK | 1ME19301P10 | |
| MACK | 2ME374 | |
| MACK | 2ME374P2 | |
| MACK | 2191M090535 | |
| MACK | 2ME29301P6 | |
| MACK | 2ME49301P6 | |
| MAN | 82151010021 | |
| MANITOWOC | 7642000028 | |
| MAREMONT | ZH206 | |
| MAREMONT | TD17 | |
| MAREMONT | TD017 | |
| MI-JACK | 33170108 | |
| MI-JACK | 33170018 | |
| MI-JACK | 37224213 | |
| NELSON | 86102M | |
| NEW HOLLAND | 700051115 | |
| OSHKOSH | 53259B | |
| OSHKOSH | 53258BX | |
| OSHKOSH | 53258B | |
| P & H | 27Q590 | |
| P & H | 27Q713 | |
| P & H | 27U215 | |
| PAI INDUSTRIES INC | EEM1901 | |
| PETTIBONE | A1204227 | |
| REICHDRILL | PS41746 | |
| REICHDRILL | 6PS4174 | |
| REX | 2120401292 | |
| RIKER | 9XD508 | |
| RIKER | 9XD508W | |
| RIKER | M5090 | |
| RIMPULL | 225002 | |
| RUSTON BUCYRUS | 46665796 | |
| SCANIA | LO2840 | |
| STEMCO | 1909354 | |
| STEMCO | 1909327 | |
| SULLAIR | 405097 | |
| TAYLOR | 2403049 | |
| TEREX | 728599 | |
| TRUCKEX | 3667 | |
| UNIT RIG EQUIPMENT | 1008481 | |
| VOLVO | 49033350 | |
| VOLVO | 49034554 | |
| VOLVO | 49037199 | |
| VOLVO | 49043656 | |
| VOLVO | 49039300 | |
| VOLVO | 049039300 | |
| VOLVO | 230010004 | |
| VOLVO | V111111 | |
| VOLVO | 1111112 | |
| VOLVO | V1111112 | |
| VOLVO | V11111112 | |
| WALGAHN-MOTORENTECHN | 00810306 | |
| WALGAHN-MOTORENTECHN | 810320 | |
| WALGAHN-MOTORENTECHN | 00810320 | |
| WALGAHN-MOTORENTECHN | 810311 | |
| WALGAHN-MOTORENTECHN | 810306 | |
| WALGAHN-MOTORENTECHN | 00810311 | |
| WALKER MANUFACTURING | 22823 | |
| WALKER MANUFACTURING | 22829 | |
| WESTERN STAR TRUCK | MPM090535 | |
| WHITE | 049039300 | |
| WHITE | 049033350 | |
| WHITE | 049034554 | |
| WHITE | 49039300 |
