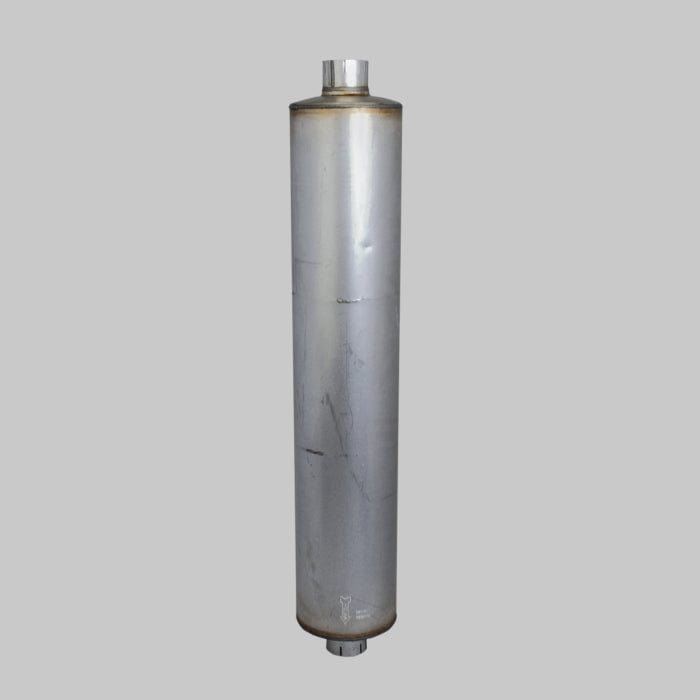

Muffler, Round Style 1 - Donaldson M090146
Muffler, Round Style 1 - Donaldson M090146
Regular price
£315.90
Regular price
Sale price
£315.90
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M090146
Muffler, Round Style 1| Inlet Diameter | 3.51 inch (89.28 mm) |
| Outlet Diameter | 3.51 inch (89.28 mm) |
| Body Diameter Maximum | 8.97 inch (227.8 mm) |
| Body Length | 44.44 inch (1128.8 mm) |
| Overall Length | 51.00 inch (1295.4 mm) |
| Rated Flow LR | 579 cfm (16.4 m³/min) |
| Rated Flow MR | 816 cfm (23.1 m³/min) |
| Rated Flow HR | 102 cfm (2.9 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 18 dBA |
| Attenuation HR | 25 dBA |
| Style | Style 1 |
Share
Collapsible content
Specifications
Attributes
- Inlet Diameter: 89.28 mm (3.51 inch)
- Outlet Diameter: 89.28 mm (3.51 inch)
- Body Diameter Maximum: 227.8 mm (8.97 inch)
- Body Length: 1128.8 mm (44.44 inch)
- Overall Length: 1295.4 mm (51.00 inch)
- Rated Flow LR: 16.4 m³/min (579 cfm)
- Rated Flow MR: 23.1 m³/min (816 cfm)
- Rated Flow HR: 2.9 m³/min (102 cfm)
- Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
- Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
- Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
- Attenuation LR: 18 dBA
- Attenuation HR: 25 dBA
- Style: Style 1
Packaged Dimensions
- Packaged Length: 1.319 m (52.75 inch)
- Packaged Width: 0.244 m (9.75 inch)
- Packaged Height: 0.238 m (9.50 inch)
- Packaged Weight: 12.875 kg (28.36 lb)
- Packaged Volume: 0.079 m3 (2.83 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 125850-08
- HTS Code: 8708923500
- UPC Code: 742330005088
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 3679 | |
| A P PARTS | 3679Q | |
| AP EXHAUST PRODUCTS INC | 3679 | |
| COMPACTION AMERICA | 846100359 | |
| DYNAFLEX | 87350345 | |
| DYNAFLEX | 87350113Q | |
| DYNAFLEX | 87350113 | |
| EAGLE TRUCK PRODUCTS | E108 | |
| FMC | 12A3569 | |
| FORD | D4HA5225EA | |
| FORD | 9575M090146 | |
| FORD | D3HZ5255A | |
| FORD | D4HZ5230C | |
| FORD | D3HA5225AAA | |
| FORD | D3HZ5230D | |
| FREIGHTLINER | DNM090146 | |
| FWD | 10175624 | |
| GROVE | 76420000036 | |
| GROVE | 7642000610 | |
| HEAVY DUTY MFG | 31025 | |
| INGERSOLL RAND | 35304310 | |
| INTERNATIONAL | 447125C1 | |
| INTERNATIONAL | DCM090146 | |
| INTERNATIONAL | 447124C1 | |
| INTERNATIONAL | 429619C1 | |
| INTERNATIONAL | 436198C1 | |
| INTERNATIONAL | 366303C1 | |
| LETOURNEAU | 4068782 | |
| MAREMONT | ZH209 | |
| NELSON | 86216M | |
| NELSON | 86113M | |
| NEW HOLLAND | D3HZ5230D | |
| OSHKOSH | 57200BX | |
| OSHKOSH | 57200B | |
| PETTIBONE | LL847181 | |
| RIKER | 90915 | |
| RIKER | 9XD358 | |
| STEMCO | 1909351 | |
| STEMCO | 1909341 | |
| STEMCO | 1909376 | |
| TAYLOR | 2403052 | |
| TOWMOTOR | 534948 | |
| TRANSPORTATION ACCESSORIES | 86113M | |
| TRANSPORTATION ACCESSORIES | TAC427 | |
| TRUCKEX | 3679 | |
| WALGAHN-MOTORENTECHN | 810313 | |
| WALGAHN-MOTORENTECHN | 00810313 | |
| WALKER MANUFACTURING | 22844 |
