• Donaldson Muffler, Round Style 1 - Donaldson M085407
1 1

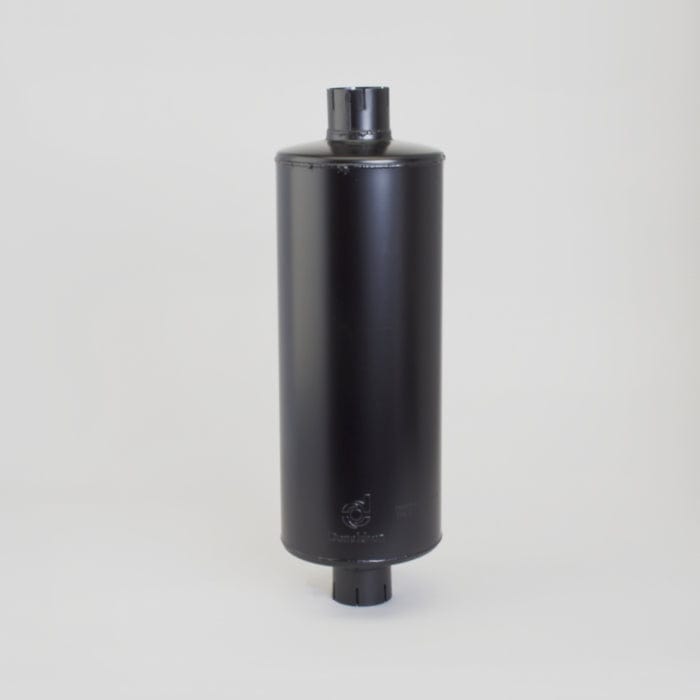

Muffler, Round Style 1 - Donaldson M085407

Muffler, Round Style 1 - Donaldson M085407

£289.68
£289.68
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson M085407

Muffler, Round Style 1
Inlet Diameter 3.02 inch (76.66 mm)
Outlet Diameter 3.02 inch (76.66 mm)
Body Diameter Maximum 8.46 inch (215 mm)
Body Length 19.75 inch (501.6 mm)
Overall Length 26.50 inch (673 mm)
Rated Flow LR 636 cfm (18 m³/min)
Rated Flow MR 883 cfm (25 m³/min)
Rated Flow HR 883 cfm (25 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 12 dBA
Attenuation HR 18 dBA
Style Style 1
View full details

Specifications

Attributes

  • Inlet Diameter: 76.66 mm (3.02 inch)
  • Outlet Diameter: 76.66 mm (3.02 inch)
  • Body Diameter Maximum: 215 mm (8.46 inch)
  • Body Length: 501.6 mm (19.75 inch)
  • Overall Length: 673 mm (26.50 inch)
  • Rated Flow LR: 18 m³/min (636 cfm)
  • Rated Flow MR: 25 m³/min (883 cfm)
  • Rated Flow HR: 25 m³/min (883 cfm)
  • Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
  • Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
  • Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
  • Attenuation LR: 12 dBA
  • Attenuation HR: 18 dBA
  • Style: Style 1

Packaged Dimensions

  • Packaged Length: 0.719 m (28.75 inch)
  • Packaged Width: 0.234 m (9.38 inch)
  • Packaged Height: 0.238 m (9.50 inch)
  • Packaged Weight: 7.253 kg (15.98 lb)
  • Packaged Volume: 0.041 m3 (1.48 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-06
  • HTS Code: 8708923500
  • UPC Code: 742330113882

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
HEAVY DUTY MFG 31407
HOIST LIFTTRUCK MANUFACTURING M15456
MORBARK 2323080
MORBARK 29323080
MORBARK 900424
NELSON 201560N
NELSON 86186M
PRINOTH 114666796
