Donaldson M065071

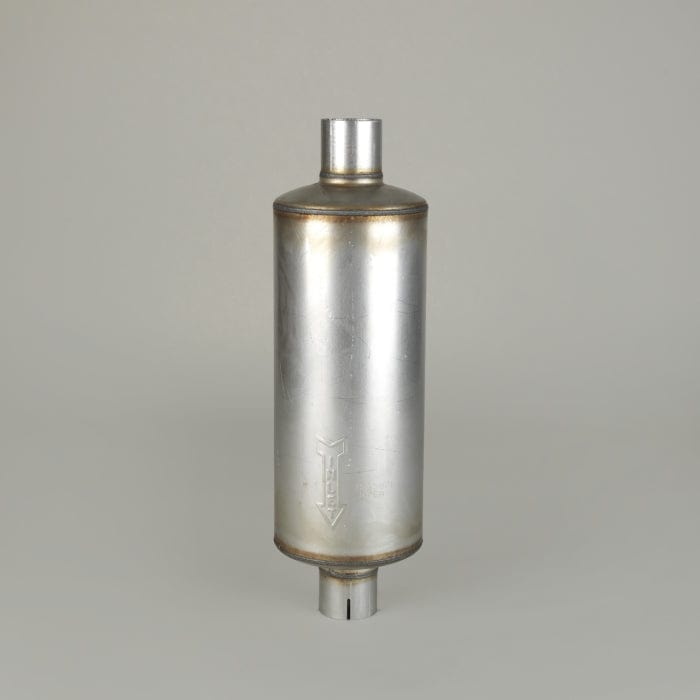

Muffler, Round Style 1
Inlet Diameter 2.51 inch (63.88 mm)
Outlet Diameter 2.64 inch (67 mm)
Body Diameter Maximum 6.61 inch (167.89 mm)
Body Length 15.00 inch (381 mm)
Overall Length 22.00 inch (558.8 mm)
Rated Flow LR 456 cfm (12.9 m³/min)
Rated Flow MR 646 cfm (18.3 m³/min)
Rated Flow HR 791 cfm (22.4 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 6 dBA
Attenuation HR 12 dBA
Style Style 1
View full details

Specifications

Attributes

  • Inlet Diameter: 63.88 mm (2.51 inch)
  • Outlet Diameter: 67 mm (2.64 inch)
  • Body Diameter Maximum: 167.89 mm (6.61 inch)
  • Body Length: 381 mm (15.00 inch)
  • Overall Length: 558.8 mm (22.00 inch)
  • Rated Flow LR: 12.9 m³/min (456 cfm)
  • Rated Flow MR: 18.3 m³/min (646 cfm)
  • Rated Flow HR: 22.4 m³/min (791 cfm)
  • Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
  • Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
  • Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
  • Attenuation LR: 6 dBA
  • Attenuation HR: 12 dBA
  • Style: Style 1

Packaged Dimensions

  • Packaged Length: 0.628 m (25.13 inch)
  • Packaged Width: 0.193 m (7.70 inch)
  • Packaged Height: 0.190 m (7.60 inch)
  • Packaged Weight: 3.836 kg (8.45 lb)
  • Packaged Volume: 0.024 m3 (0.85 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-07
  • HTS Code: 8708923500
  • UPC Code: 742330004678

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
A P PARTS 3621
A P PARTS 3621Q
ALLMAND BROS ME355M
AP EXHAUST PRODUCTS INC 3621
ATHEY 5720341
BARBER-GREENE 29L16
BLOUNT 565477
CASE/CASE IH A24314
CASE/CASE IH A23476
CASE/CASE IH NX14152064
CASE/CASE IH A21464
CATERPILLAR 3324011
CATERPILLAR 565477
DYNAFLEX 87250186Q
EIMCO 64804786
FORD 167650
FORD 606T122
GRADALL 91233003
HEAVY DUTY MFG 31076
HOBART ET5048
INTERNATIONAL DCM065071
LOCKWOOD 8733
NELSON 86178M
PERKINS 13000650
RAINBOW MANUFACTURING 18409
SHUTTLELIFT INC 703130
STEMCO 1909004
TROJAN 204690000
TROJAN 2046900
WABCO KC3015
WALDON 419499
WALKER MANUFACTURING 21723
