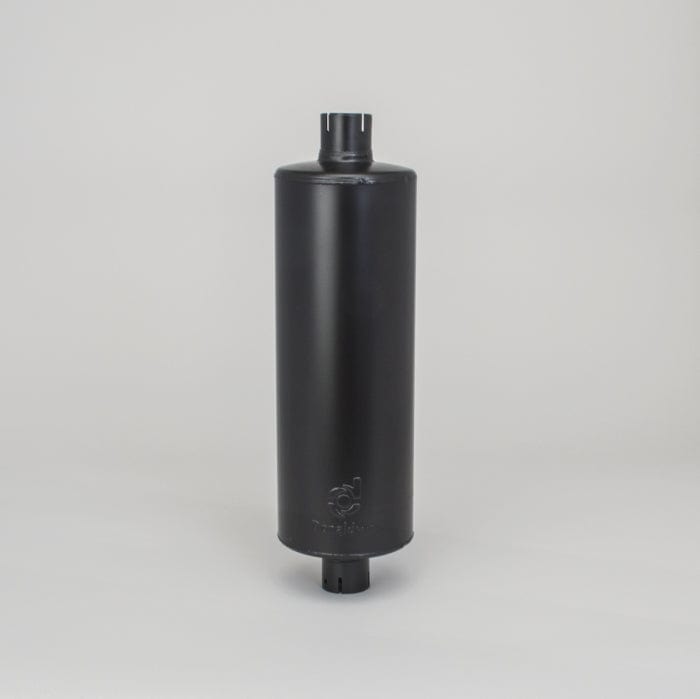

Muffler, Round Style 1 - Donaldson M060479
Muffler, Round Style 1 - Donaldson M060479
Regular price
£194.82
Regular price
Sale price
£194.82
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M060479
Muffler, Round Style 1| Inlet Diameter | 2.02 inch (51.31 mm) |
| Outlet Diameter | 2.02 inch (51.38 mm) |
| Body Diameter Maximum | 5.99 inch (152.15 mm) |
| Body Length | 15.75 inch (400 mm) |
| Overall Length | 21.00 inch (533.4 mm) |
| Rated Flow LR | 283 cfm (8 m³/min) |
| Rated Flow MR | 646 cfm (18.3 m³/min) |
| Rated Flow HR | 392 cfm (11.1 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 12 dBA |
| Attenuation HR | 18 dBA |
| Style | Style 1 |
Share
Collapsible content
Specifications
Attributes
- Inlet Diameter: 51.31 mm (2.02 inch)
- Outlet Diameter: 51.38 mm (2.02 inch)
- Body Diameter Maximum: 152.15 mm (5.99 inch)
- Body Length: 400 mm (15.75 inch)
- Overall Length: 533.4 mm (21.00 inch)
- Rated Flow LR: 8 m³/min (283 cfm)
- Rated Flow MR: 18.3 m³/min (646 cfm)
- Rated Flow HR: 11.1 m³/min (392 cfm)
- Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
- Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
- Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
- Attenuation LR: 12 dBA
- Attenuation HR: 18 dBA
- Style: Style 1
Packaged Dimensions
- Packaged Length: 0.613 m (24.50 inch)
- Packaged Width: 0.163 m (6.50 inch)
- Packaged Height: 0.168 m (6.70 inch)
- Packaged Weight: 3.814 kg (8.40 lb)
- Packaged Volume: 0.017 m3 (0.62 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 125850-08
- HTS Code: 8708923500
- UPC Code: 742330113783
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| HURRICANE COMPRESSOR | 12471752 | |
| NELSON | 201550N |
