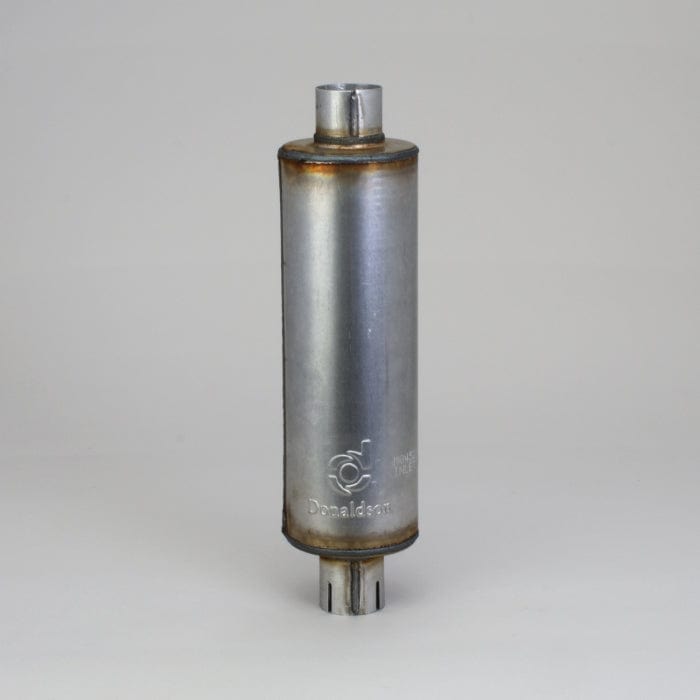

Muffler, Round Style 1 - Donaldson M045237
Muffler, Round Style 1 - Donaldson M045237
Regular price
£113.60
Regular price
Sale price
£113.60
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M045237
Muffler, Round Style 1| Inlet Diameter | 2.02 inch (51.31 mm) |
| Outlet Diameter | 2.12 inch (53.85 mm) |
| Body Diameter Maximum | 4.37 inch (111 mm) |
| Body Length | 12.50 inch (317.5 mm) |
| Overall Length | 17.00 inch (431.8 mm) |
| Rated Flow LR | 307 cfm (8.7 m³/min) |
| Rated Flow MR | 434 cfm (12.3 m³/min) |
| Rated Flow HR | 530 cfm (15 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 8 dBA |
| Attenuation HR | 12 dBA |
| Style | Style 1 |
Share
Collapsible content
Specifications
Attributes
- Inlet Diameter: 51.31 mm (2.02 inch)
- Outlet Diameter: 53.85 mm (2.12 inch)
- Body Diameter Maximum: 111 mm (4.37 inch)
- Body Length: 317.5 mm (12.50 inch)
- Overall Length: 431.8 mm (17.00 inch)
- Rated Flow LR: 8.7 m³/min (307 cfm)
- Rated Flow MR: 12.3 m³/min (434 cfm)
- Rated Flow HR: 15 m³/min (530 cfm)
- Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
- Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
- Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
- Attenuation LR: 8 dBA
- Attenuation HR: 12 dBA
- Style: Style 1
Packaged Dimensions
- Packaged Length: 0.485 m (19.40 inch)
- Packaged Width: 0.118 m (4.70 inch)
- Packaged Height: 0.120 m (4.80 inch)
- Packaged Weight: 1.764 kg (3.89 lb)
- Packaged Volume: 0.007 m3 (0.25 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 125850-09
- HTS Code: 8708923500
- UPC Code: 742330004487
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 80 | |
| AG CHEM EQUIPMENT | 720000 | |
| AG CHEM EQUIPMENT | 69445089 | |
| APE INDUSTRI AB | 80 | |
| ASV INCORPORATED | 2050029 | |
| BADGER | 76020614 | |
| BRODERSON | 60094381 | |
| CARRIER TRANSICOLD | 66U21491 | |
| CARRIER TRANSICOLD | 66U21491 | |
| CASE/CASE IH | N100615 | |
| CASE/CASE IH | F18685 | |
| DRESSER | 1249281H1 | |
| DYNAPAC | 921989 | |
| DYNAPAC | 4700921989 | |
| EIMCO | 950250016 | |
| ERICKSON | 34112 | |
| FARMHAND | 1D22101 | |
| FMC | 2260801 | |
| FMC | 16H40043 | |
| FMC | 401666 | |
| FORD | 9575M045237 | |
| FORD | 197700 | |
| FORD | 199254 | |
| FORD | 260424V11 | |
| GETMAN | 604966 | |
| GRADALL | 76020614 | |
| GRADALL | 91203058 | |
| GRADALL | 43B25 | |
| GROVE | 764210000 | |
| HAVAM | HD4020 | |
| HEAVY DUTY MFG | 31074 | |
| HOIST LIFTTRUCK MANUFACTURING | M06554 | |
| INTERNATIONAL | DCM045237 | |
| JLG | 3220033 | |
| JOHN DEERE | AT10646 | |
| JOY | 519020018 | |
| JOY | 51910218 | |
| KOEHRING | 846100209 | |
| KOMATSU | 1249281H1 | |
| LEROI | 78152 | |
| LISSMAC | 206655 | |
| LONG | 806556 | |
| NELSON | 86177M | |
| PERKINS | 13000402 | |
| PETTIBONE | LL84786 | |
| PETTIBONE | MM313 | |
| RICKEL | 013706 | |
| RICKEL | 13706 | |
| ROSCO | 34862 | |
| SANDVIK | 64572841 | |
| SELLICK EQPT LTD | 180363 | |
| SICARD | 10002214 | |
| SULLAIR | 40009 | |
| SULLIVAN PALATEK | 519020018 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 911349 | |
| VERSATILE | 260424V11 | |
| WALGAHN-MOTORENTECHN | 00810261 | |
| WALGAHN-MOTORENTECHN | 810261 | |
| WALKER MANUFACTURING | 21025 | |
| WALKER MANUFACTURING | 21722 | |
| WALKER MANUFACTURING | 21188 | |
| WARNER & SWASEY | 76020614 | |
| WILMAR | 11908 | |
| WORTHINGTON | MUF20006 |
