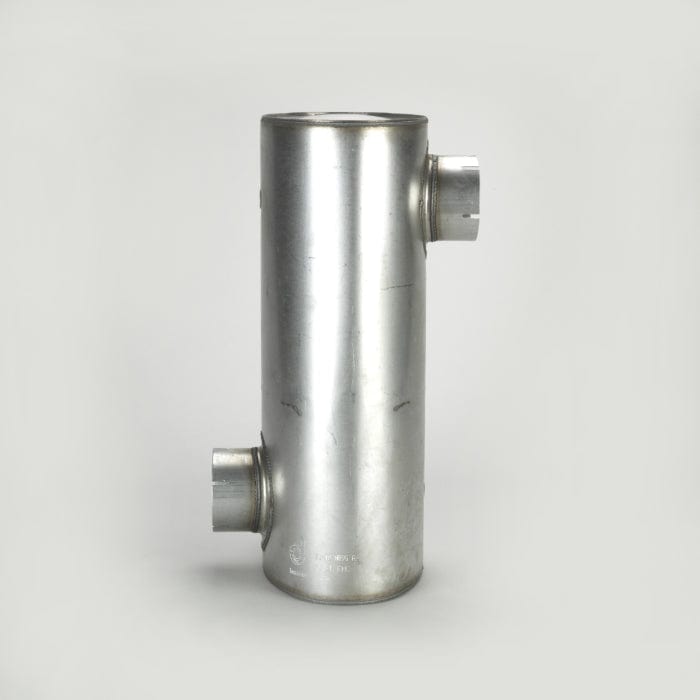

Muffler, Oval Style 6 - Donaldson M120418

Muffler, Oval Style 6 - Donaldson M120418

£486.44
£486.44
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson M120418

Muffler, Oval Style 6
Inlet Diameter 5.03 inch (127.64 mm)
Outlet Diameter 5.03 inch (127.64 mm)
Body Diameter Minimum 10.00 inch (254 mm)
Body Diameter Maximum 15.00 inch (381 mm)
Body Length 27.50 inch (698.5 mm)
Overall Length 28.26 inch (717.7 mm)
Rated Flow LR 1356 cfm (38.4 m³/min)
Rated Flow MR 1918 cfm (54.3 m³/min)
Rated Flow HR 2348 cfm (66.5 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 15 dBA
Attenuation HR 20 dBA
Inlet Clock Position 6:00
Outlet Clock Position 12:00
Style Style 6
View full details

Specifications

Attributes

  • Inlet Diameter: 127.64 mm (5.03 inch)
  • Outlet Diameter: 127.64 mm (5.03 inch)
  • Body Diameter Minimum: 254 mm (10.00 inch)
  • Body Diameter Maximum: 381 mm (15.00 inch)
  • Body Length: 698.5 mm (27.50 inch)
  • Overall Length: 717.7 mm (28.26 inch)
  • Rated Flow LR: 38.4 m³/min (1356 cfm)
  • Rated Flow MR: 54.3 m³/min (1918 cfm)
  • Rated Flow HR: 66.5 m³/min (2348 cfm)
  • Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
  • Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
  • Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
  • Attenuation LR: 15 dBA
  • Attenuation HR: 20 dBA
  • Inlet Clock Position: 6
  • Outlet Clock Position: 12
  • Style: Style 6

Packaged Dimensions

  • Packaged Length: 0.781 m (31.25 inch)
  • Packaged Width: 0.413 m (16.50 inch)
  • Packaged Height: 0.406 m (16.25 inch)
  • Packaged Weight: 14.324 kg (31.55 lb)
  • Packaged Volume: 0.136 m3 (4.85 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-05
  • HTS Code: 8708923500
  • UPC Code: 742330006009

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AP EXHAUST PRODUCTS INC 3941
ASTEC UNDERGROUND 3018051102
CASE/CASE IH NM120418
CMI 4013195000
CMI 413195
CMI 4001319500
CMI 004013195000
CUMMINS 10000494
FORD 9575M120418
HEAVY DUTY MFG 31250
HOBART EB5922
HOBART EB5665
HURRICANE COMPRESSOR 63229
INTERNATIONAL DCM120418
OSHKOSH P103952
RIKER 15911
RIKER 15011
STEMCO 1901134
TRUCKEX 3941
WALKER MANUFACTURING 22452
