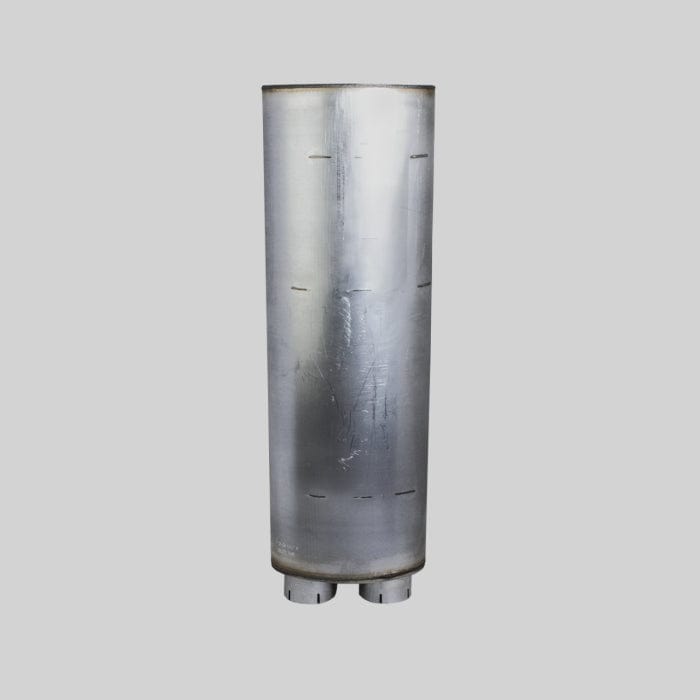

Muffler, Oval Style 5 - Donaldson M120450

Muffler, Oval Style 5 - Donaldson M120450

£512.14
£512.14
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson M120450

Muffler, Oval Style 5
Inlet Diameter 5.03 inch (127.64 mm)
Outlet Diameter 5.03 inch (127.64 mm)
Body Diameter Minimum 10.00 inch (254 mm)
Body Diameter Maximum 15.00 inch (381 mm)
Body Length 44.02 inch (1118 mm)
Overall Length 47.38 inch (1203.45 mm)
Rated Flow LR 1547 cfm (43.8 m³/min)
Rated Flow MR 2186 cfm (61.9 m³/min)
Rated Flow HR 2677 cfm (75.8 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 13 dBA
Attenuation HR 18 dBA
Inlet Clock Position 3:00
Outlet Clock Position 9:00
Style Style 5
View full details

Specifications

Attributes

  • Inlet Diameter: 127.64 mm (5.03 inch)
  • Outlet Diameter: 127.64 mm (5.03 inch)
  • Body Diameter Minimum: 254 mm (10.00 inch)
  • Body Diameter Maximum: 381 mm (15.00 inch)
  • Body Length: 1118 mm (44.02 inch)
  • Overall Length: 1203.45 mm (47.38 inch)
  • Rated Flow LR: 43.8 m³/min (1547 cfm)
  • Rated Flow MR: 61.9 m³/min (2186 cfm)
  • Rated Flow HR: 75.8 m³/min (2677 cfm)
  • Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
  • Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
  • Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
  • Attenuation LR: 13 dBA
  • Attenuation HR: 18 dBA
  • Inlet Clock Position: 3
  • Outlet Clock Position: 9
  • Style: Style 5

Packaged Dimensions

  • Packaged Length: 1.225 m (49.00 inch)
  • Packaged Width: 0.391 m (15.63 inch)
  • Packaged Height: 0.263 m (10.50 inch)
  • Packaged Weight: 15.890 kg (35.00 lb)
  • Packaged Volume: 0.130 m3 (4.65 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-08
  • HTS Code: 8708923500
  • UPC Code: 742330106310

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
A P PARTS 4205
AP EXHAUST PRODUCTS INC 4205
CASE/CASE IH NM120450
CATERPILLAR 6814910700
DRILTECH 0080831
FREIGHTLINER DNM120450
GROVE 7642100035
KENWORTH MOM120450171
KENWORTH D45000259
KENWORTH M0M120450171
MERCEDES-BENZ 6814910700
PACCAR M120450171
TRUCKEX 4205
WESTERN STAR TRUCK 6814910700
