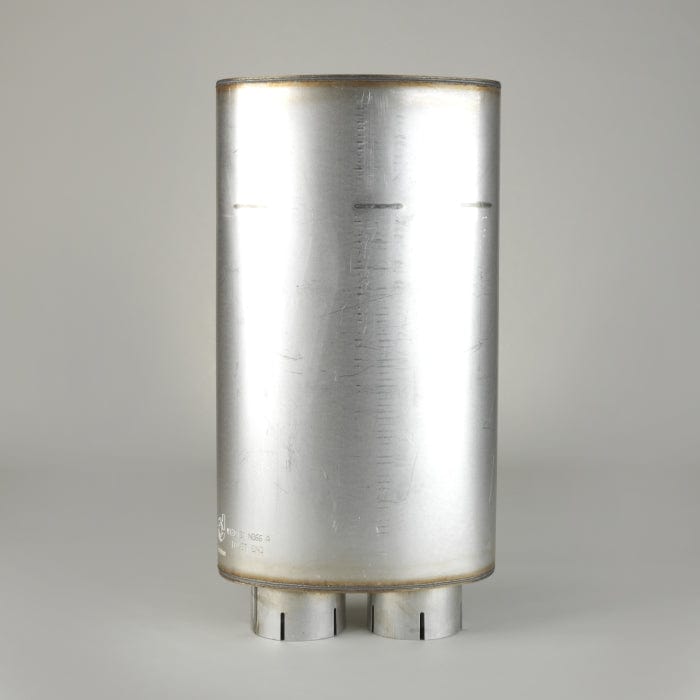

Muffler, Oval Style 5 - Donaldson M120131
Muffler, Oval Style 5 - Donaldson M120131
Regular price
£422.07
Regular price
Sale price
£422.07
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M120131
Muffler, Oval Style 5| Inlet Diameter | 5.03 inch (127.64 mm) |
| Outlet Diameter | 5.03 inch (127.64 mm) |
| Body Diameter Minimum | 10.00 inch (254 mm) |
| Body Diameter Maximum | 15.00 inch (381 mm) |
| Body Length | 25.50 inch (647.7 mm) |
| Overall Length | 29.39 inch (746.4 mm) |
| Rated Flow LR | 1681 cfm (47.6 m³/min) |
| Rated Flow MR | 2377 cfm (67.3 m³/min) |
| Rated Flow HR | 2910 cfm (82.4 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 8 dBA |
| Attenuation HR | 12 dBA |
| Inlet Clock Position | 3:00 |
| Outlet Clock Position | 9:00 |
| Style | Style 5 |
Share
Collapsible content
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 3648Q | |
| A P PARTS | 3648 | |
| A P PARTS | 3900 | |
| AMERICAN CRANE CORPORATION | 1151918 | |
| AP EXHAUST PRODUCTS INC | 3900 | |
| ATLAS COPCO | 354612 | |
| BADGER | 76045587 | |
| BARKO HYDRAULICS | 53501057 | |
| BARKO HYDRAULICS | 53504057 | |
| CAMECO | 0551368096 | |
| CAMECO | 551368096 | |
| CASE/CASE IH | NM120131 | |
| CATERPILLAR | 0818035 | |
| CATERPILLAR | 818035 | |
| CENTURY II | 27Q429 | |
| CHRYSLER | 3634620 | |
| CMI | 4002768000 | |
| CMI | 42768 | |
| CMI | 004002768000 | |
| CRANE CARRIER | 21048 | |
| CRANE CARRIER | 2100048 | |
| CRANE CARRIER | 2100128 | |
| DETROIT DIESEL | DM120131 | |
| DRILTECH | 008024001 | |
| DRILTECH | 8024001 | |
| DYNAFLEX | 88500121 | |
| EAGLE TRUCK PRODUCTS | E502 | |
| EATON | 210557600 | |
| EMERGENCY ONE, INC. | 597126 | |
| ENMTP CPG | 5605586 | |
| EUCLID | EH6232815 | |
| EUCLID | 6232815 | |
| FORD | 9575M120131 | |
| FREIGHTLINER | DNM120131 | |
| GROVE | 7642000057 | |
| HEAVY DUTY MFG | 31181 | |
| HEAVY DUTY MFG | 31200 | |
| HITACHI | E6232815 | |
| INGERSOLL RAND | 35584499 | |
| INSLEY | 520330 | |
| INTERNATIONAL | DCM120131 | |
| INTERNATIONAL | 788022C1 | |
| KENWORTH | MDM120131 | |
| KENWORTH | MOM120131 | |
| KOEHRING | 32564206302 | |
| KOEHRING | 4206022 | |
| KOEHRING | 4206302 | |
| KOEHRING | 42066302 | |
| LETOURNEAU | 4224488 | |
| LIEBHERR | 5605586 | |
| MACK | 2ME29302 | |
| NABI BUS | 5008421 | |
| NELSON | 86121M | |
| NELSON | 86116M | |
| NEOPLAN | DONMOM120131 | |
| P & H | 27Q429 | |
| RAYGO | 818035 | |
| RAYGO | 0818035 | |
| RIKER | 15902 | |
| RUSTON BUCYRUS | 46651044 | |
| RUSTON BUCYRUS | 46653365 | |
| SANDVIK | 04710302 | |
| SEAGRAVE | P1997770 | |
| SPARTAN MOTORS | 1097LL2001 | |
| STEMCO | 1909428 | |
| SULLAIR | 250010865 | |
| SULLIVAN PALATEK | 050187850039 | |
| TAMROCK | 008024001 | |
| TAMROCK | 8024001 | |
| TAMROCK | 4710302 | |
| TAMROCK | 04710302 | |
| TEREX | 420V6302 | |
| TEREX | P3141445 | |
| TROJAN | 210557600 | |
| TROJAN | 2105576 | |
| TRUCKEX | 3900 | |
| UPTIME PARTS | A2300003 | |
| UPTIME PARTS | A2300003001 | |
| UPTIME PARTS | A2300003A001 | |
| VME | EH6232815 | |
| VME | 6232815 | |
| VOLVO | DNM120131 | |
| VOLVO | EH6232815 | |
| VOLVO | 6232815 | |
| WAGNER MINING EQUIPMENT | 354612 | |
| WALGAHN-MOTORENTECHN | 00810339 | |
| WALGAHN-MOTORENTECHN | 810339 | |
| WALGAHN-MOTORENTECHN | 810336 | |
| WALGAHN-MOTORENTECHN | 00810336 | |
| WALKER MANUFACTURING | 22381 | |
| WESTERN STAR TRUCK | 049034037 | |
| WESTERN STAR TRUCK | 49034037 | |
| WHITE | 049034037 | |
| WHITE | 519058 | |
| WHITE | 49034037 | |
| WHITE | 565231 |
