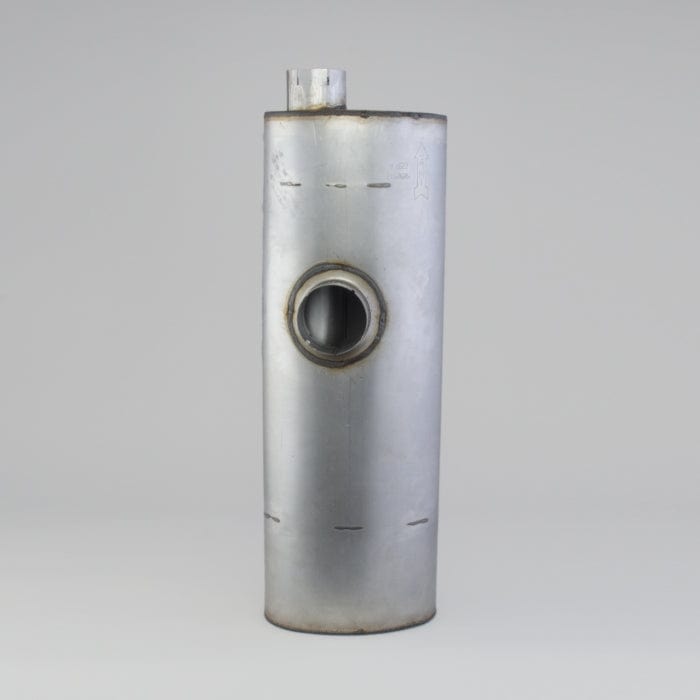

Muffler, Oval Style 4 - Donaldson M090547

Muffler, Oval Style 4 - Donaldson M090547

£354.22
£354.22
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson M090547

Muffler, Oval Style 4
Inlet Diameter 3.51 inch (89.28 mm)
Outlet Diameter 4.02 inch (102.11 mm)
Body Diameter Minimum 8.21 inch (208.5 mm)
Body Diameter Maximum 11.46 inch (291.1 mm)
Body Length 32.56 inch (827 mm)
Overall Length 35.16 inch (893 mm)
Rated Flow LR 865 cfm (24.5 m³/min)
Rated Flow MR 1222 cfm (34.6 m³/min)
Rated Flow HR 1501 cfm (42.5 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 13 dBA
Attenuation HR 18 dBA
Inlet Clock Position 9:00
Outlet Clock Position 7:00
Style Style 4
View full details

Specifications

Attributes

  • Inlet Diameter: 89.28 mm (3.51 inch)
  • Outlet Diameter: 102.11 mm (4.02 inch)
  • Body Diameter Minimum: 208.5 mm (8.21 inch)
  • Body Diameter Maximum: 291.1 mm (11.46 inch)
  • Body Length: 827 mm (32.56 inch)
  • Overall Length: 893 mm (35.16 inch)
  • Rated Flow LR: 24.5 m³/min (865 cfm)
  • Rated Flow MR: 34.6 m³/min (1222 cfm)
  • Rated Flow HR: 42.5 m³/min (1501 cfm)
  • Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
  • Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
  • Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
  • Attenuation LR: 13 dBA
  • Attenuation HR: 18 dBA
  • Inlet Clock Position: 9
  • Outlet Clock Position: 7
  • Style: Style 4

Packaged Dimensions

  • Packaged Length: 0.981 m (39.25 inch)
  • Packaged Width: 0.300 m (12.00 inch)
  • Packaged Height: 0.300 m (12.00 inch)
  • Packaged Weight: 11.466 kg (25.26 lb)
  • Packaged Volume: 0.092 m3 (3.27 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-09
  • HTS Code: 8708923500
  • UPC Code: 742330005262

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
A P PARTS 3704Q
A P PARTS 3704
A P PARTS 3729
A P PARTS 3729Q
ACRAFIT M30537
ACRAFIT M30510
AP EXHAUST PRODUCTS INC 3704
DART MOM090547
EAGLE TRUCK PRODUCTS E708
FREIGHTLINER DNM090547
HEAVY DUTY MFG 31214
INTERNATIONAL DCM090547
INTERNATIONAL 1657434C1
INTERNATIONAL 481727C2
INTERNATIONAL 4812727C2
KOMATSU 1648000C2
MAREMONT ZF955
MERITOR 103021
NELSON 86510M
NELSON 86537M
STEMCO 1909537
STEMCO 1901181
STEMCO 1901221
TRUCKEX 3915
WALKER MANUFACTURING 22604
WALKER MANUFACTURING 22214
WALKER MANUFACTURING 21074
