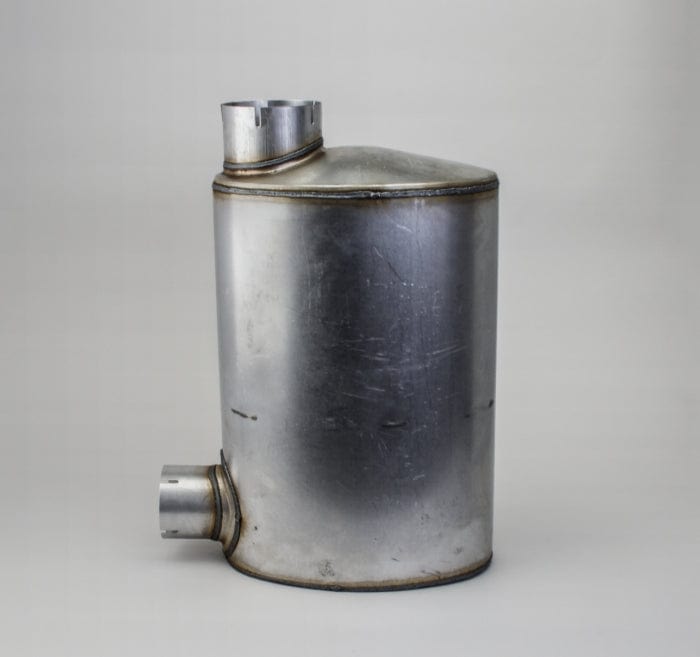

Muffler, Oval Style 3 - Donaldson M120566

Muffler, Oval Style 3 - Donaldson M120566

£525.76
£525.76
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson M120566

Muffler, Oval Style 3
Inlet Diameter 4.02 inch (102 mm)
Outlet Diameter 5.02 inch (127.63 mm)
Body Diameter Minimum 10.00 inch (254 mm)
Body Diameter Maximum 15.00 inch (381 mm)
Body Length 20.75 inch (527 mm)
Overall Length 25.25 inch (641.4 mm)
Rated Flow LR 1271 cfm (36 m³/min)
Rated Flow MR 1798 cfm (50.9 m³/min)
Rated Flow HR 2204 cfm (62.4 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 12 dBA
Attenuation HR 17 dBA
Inlet Clock Position 3:00
Outlet Clock Position 3:00
Style Style 3
View full details

Specifications

Attributes

  • Inlet Diameter: 102 mm (4.02 inch)
  • Outlet Diameter: 127.63 mm (5.02 inch)
  • Body Diameter Minimum: 254 mm (10.00 inch)
  • Body Diameter Maximum: 381 mm (15.00 inch)
  • Body Length: 527 mm (20.75 inch)
  • Overall Length: 641.4 mm (25.25 inch)
  • Rated Flow LR: 36 m³/min (1271 cfm)
  • Rated Flow MR: 50.9 m³/min (1798 cfm)
  • Rated Flow HR: 62.4 m³/min (2204 cfm)
  • Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
  • Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
  • Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
  • Attenuation LR: 12 dBA
  • Attenuation HR: 17 dBA
  • Inlet Clock Position: 3
  • Outlet Clock Position: 3
  • Style: Style 3

Packaged Dimensions

  • Packaged Length: 0.788 m (31.50 inch)
  • Packaged Width: 0.475 m (19.00 inch)
  • Packaged Height: 0.275 m (11.00 inch)
  • Packaged Weight: 12.501 kg (27.54 lb)
  • Packaged Volume: 0.107 m3 (3.81 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-05
  • HTS Code: 8708923500
  • UPC Code: 742330006023

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
A P PARTS 3718
A P PARTS 3931
AP EXHAUST PRODUCTS INC 3931
EAGLE TRUCK PRODUCTS E705
GROVE 7642100009
HEAVY DUTY MFG 31566
INTERNATIONAL DCM120566
LINK BELT J7H0053
MACK 2ME3106A
MANITOWOC 7642100009
NELSON 86542M
PAI INDUSTRIES INC EEM1899
PERKINS 13000544
STEMCO 1901220
TRUCKEX 3931
