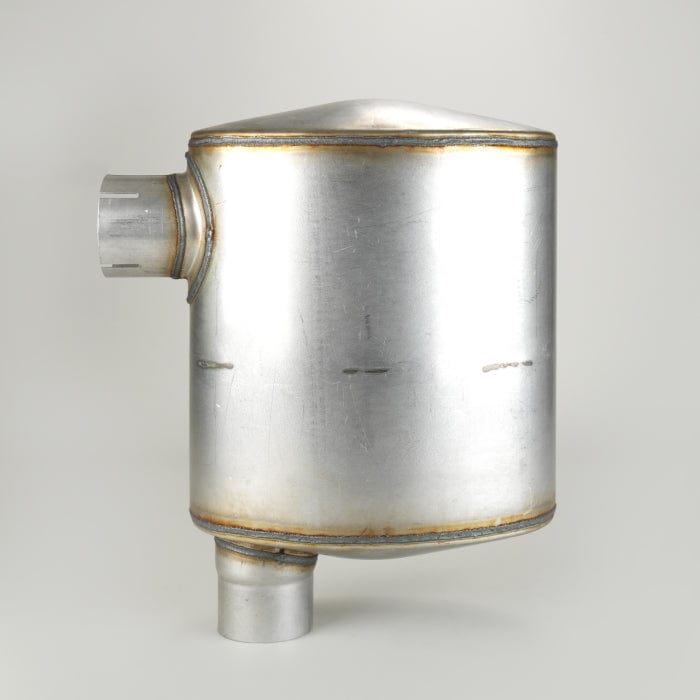

Muffler, Oval Style 3 - Donaldson M120382

Muffler, Oval Style 3 - Donaldson M120382

£375.14
£375.14
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson M120382

Muffler, Oval Style 3
Inlet Diameter 4.02 inch (102 mm)
Outlet Diameter 3.86 inch (98 mm)
Body Diameter Minimum 10.00 inch (254 mm)
Body Diameter Maximum 15.00 inch (381 mm)
Body Length 15.00 inch (381 mm)
Overall Length 21.57 inch (547.88 mm)
Rated Flow LR 1307 cfm (37 m³/min)
Rated Flow MR 1847 cfm (52.3 m³/min)
Rated Flow HR 2264 cfm (64.1 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 12 dBA
Attenuation HR 18 dBA
Inlet Clock Position 9:00
Outlet Clock Position 9:00
Style Style 3
View full details

Specifications

Attributes

  • Inlet Diameter: 102 mm (4.02 inch)
  • Outlet Diameter: 98 mm (3.86 inch)
  • Body Diameter Minimum: 254 mm (10.00 inch)
  • Body Diameter Maximum: 381 mm (15.00 inch)
  • Body Length: 381 mm (15.00 inch)
  • Overall Length: 547.88 mm (21.57 inch)
  • Rated Flow LR: 37 m³/min (1307 cfm)
  • Rated Flow MR: 52.3 m³/min (1847 cfm)
  • Rated Flow HR: 64.1 m³/min (2264 cfm)
  • Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
  • Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
  • Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
  • Attenuation LR: 12 dBA
  • Attenuation HR: 18 dBA
  • Inlet Clock Position: 9
  • Outlet Clock Position: 9
  • Style: Style 3

Packaged Dimensions

  • Packaged Length: 0.602 m (24.10 inch)
  • Packaged Width: 0.478 m (19.10 inch)
  • Packaged Height: 0.280 m (11.20 inch)
  • Packaged Weight: 9.509 kg (20.95 lb)
  • Packaged Volume: 0.084 m3 (2.98 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-06
  • HTS Code: 8708923500
  • UPC Code: 742330005989

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
A P PARTS 3678Q
A P PARTS 3678
DART MOM120382
EAGLE TRUCK PRODUCTS E704
FORD 9575MOM120382P
FORD 9575M120382
FREIGHTLINER DNM120382
GROVE 7642100013
HEAVY DUTY MFG 31202
INTERNATIONAL DCM120382
MACK 2ME361P5
MACK 2ME361P3
MACK 2191M120382
MANITOWOC 7642100013
NELSON 86149M
PAI INDUSTRIES INC EEM1917
RIKER 15007
STEMCO 1901125
STEMCO 1909515
STEMCO 1909926
TRUCKEX 3678
WALKER MANUFACTURING 21971
