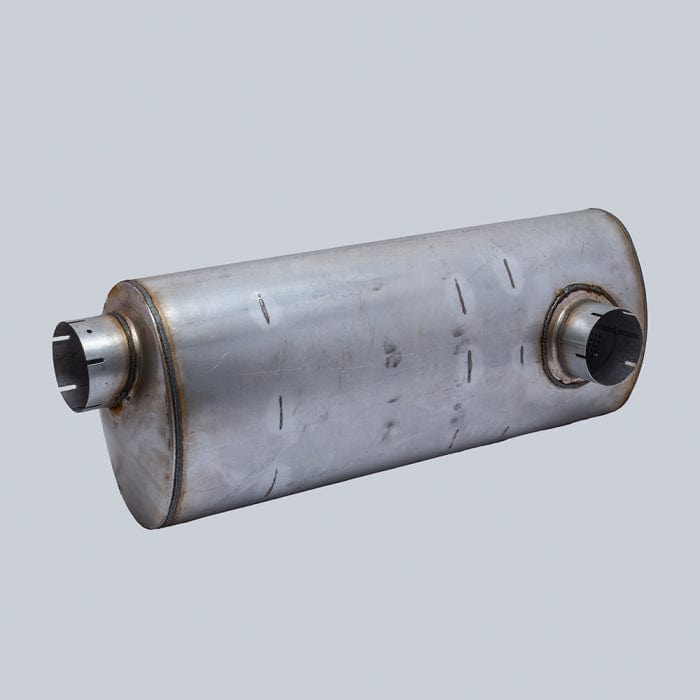

Muffler, Oval Style 3 - Donaldson M120235
Muffler, Oval Style 3 - Donaldson M120235
Regular price
£553.78
Regular price
Sale price
£553.78
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M120235
Muffler, Oval Style 3| Inlet Diameter | 5.03 inch (127.64 mm) |
| Outlet Diameter | 5.03 inch (127.64 mm) |
| Body Diameter Minimum | 10.00 inch (254 mm) |
| Body Diameter Maximum | 15.00 inch (381 mm) |
| Body Length | 35.87 inch (911.1 mm) |
| Overall Length | 39.87 inch (1012.7 mm) |
| Rated Flow LR | 1211 cfm (34.3 m³/min) |
| Rated Flow MR | 1713 cfm (48.5 m³/min) |
| Rated Flow HR | 2098 cfm (59.4 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 15 dBA |
| Attenuation HR | 20 dBA |
| Inlet Clock Position | 6:00 |
| Outlet Clock Position | 9:00 |
| Style | Style 3 |
Share
Collapsible content
Specifications
Attributes
- Inlet Diameter: 127.64 mm (5.03 inch)
- Outlet Diameter: 127.64 mm (5.03 inch)
- Body Diameter Minimum: 254 mm (10.00 inch)
- Body Diameter Maximum: 381 mm (15.00 inch)
- Body Length: 911.1 mm (35.87 inch)
- Overall Length: 1012.7 mm (39.87 inch)
- Rated Flow LR: 34.3 m³/min (1211 cfm)
- Rated Flow MR: 48.5 m³/min (1713 cfm)
- Rated Flow HR: 59.4 m³/min (2098 cfm)
- Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
- Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
- Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
- Attenuation LR: 15 dBA
- Attenuation HR: 20 dBA
- Inlet Clock Position: 6
- Outlet Clock Position: 9
- Style: Style 3
Packaged Dimensions
- Packaged Length: 1.134 m (45.38 inch)
- Packaged Width: 0.431 m (17.25 inch)
- Packaged Height: 0.347 m (13.88 inch)
- Packaged Weight: 20.385 kg (44.90 lb)
- Packaged Volume: 0.176 m3 (6.28 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 125850-05
- HTS Code: 8708923500
- UPC Code: 742330005934
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 3645 | |
| A P PARTS | 3645Q | |
| AG CHEM EQUIPMENT | AG123684 | |
| AG CHEM EQUIPMENT | 123684 | |
| AGCO | AG123684 | |
| AGCO | 123684 | |
| AP EXHAUST PRODUCTS INC | 3645 | |
| CENTURY II | 3227Q3 | |
| CENTURY II | 27Q288D1 | |
| CRANE CARRIER | 21094 | |
| CRANE CARRIER | 21099 | |
| CUMMINS | 10000881 | |
| CUMMINS | M120234 | |
| CUMMINS | CDD000013 | |
| FORD | 9575M120235 | |
| FREIGHTLINER | DNM120235 | |
| GROVE | 764200068 | |
| GROVE | 5369750 | |
| GROVE | 7642000068 | |
| HEAVY DUTY MFG | A31191 | |
| HEAVY DUTY MFG | 31191 | |
| INGERSOLL RAND | 22456172 | |
| INTERNATIONAL | DCM120235 | |
| KERSHAW | 170797 | |
| KOEHRING | 3227Q3 | |
| KOEHRING | 32564204391 | |
| KOEHRING | 3256420V4391 | |
| KOEHRING | 420V4391 | |
| KOEHRING | 4204391 | |
| MANITOWOC | 7642000068 | |
| MANITOWOC | 5369750 | |
| MANITOWOC | 536975 | |
| MI-JACK | 33170508 | |
| NELSON | 86194M | |
| OSHKOSH | 1736900 | |
| P & H | 27Q288D1 | |
| PANDROL JACKSON | 1572191 | |
| PETTIBONE | R023180137 | |
| RAABA | 658184 | |
| RIKER | 15909 | |
| RIKER | 15909Q | |
| RIKER | 15010 | |
| STEMCO | 1901351 | |
| SULLAIR | 410354 | |
| TRUCKEX | 3645 | |
| TRUCKEX | 3933 | |
| VERMEER | 9036810011 | |
| WALKER MANUFACTURING | 22917 |
