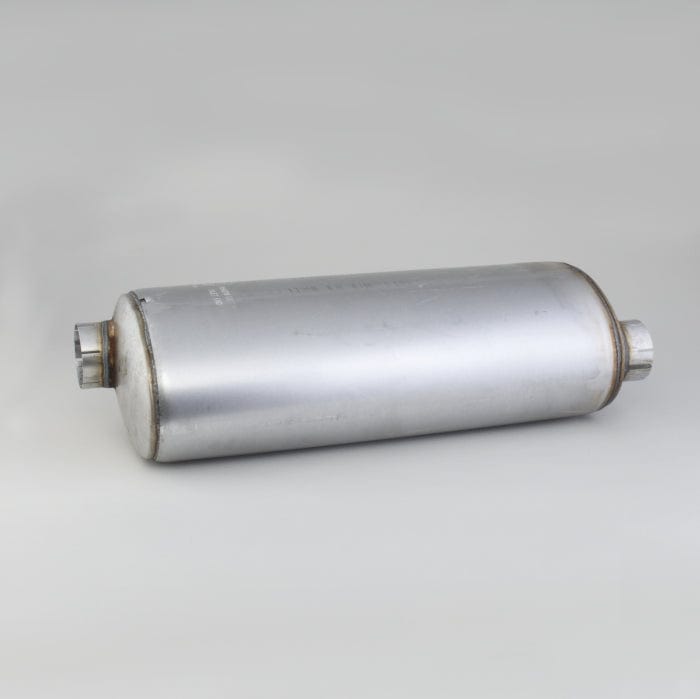

Muffler, Oval Style 2 Wrapped - Donaldson M090210
Muffler, Oval Style 2 Wrapped - Donaldson M090210
Regular price
£530.36
Regular price
Sale price
£530.36
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M090210
Muffler, Oval Style 2 Wrapped| Inlet Diameter | 3.51 inch (89.28 mm) |
| Outlet Diameter | 3.51 inch (89.28 mm) |
| Body Diameter Minimum | 8.56 inch (217.4 mm) |
| Body Diameter Maximum | 11.81 inch (300 mm) |
| Body Length | 26.00 inch (660.4 mm) |
| Overall Length | 32.25 inch (819.2 mm) |
| Rated Flow LR | 763 cfm (21.6 m³/min) |
| Rated Flow MR | 1081 cfm (30.6 m³/min) |
| Rated Flow HR | 1324 cfm (37.5 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 15 dBA |
| Attenuation HR | 20 dBA |
| Inlet Clock Position | 3:00 |
| Outlet Clock Position | 9:00 |
| Type | Wrapped |
| Style | Style 2 |
Share
Collapsible content
Specifications
Attributes
- Inlet Diameter: 89.28 mm (3.51 inch)
- Outlet Diameter: 89.28 mm (3.51 inch)
- Body Diameter Minimum: 217.4 mm (8.56 inch)
- Body Diameter Maximum: 300 mm (11.81 inch)
- Body Length: 660.4 mm (26.00 inch)
- Overall Length: 819.2 mm (32.25 inch)
- Rated Flow LR: 21.6 m³/min (763 cfm)
- Rated Flow MR: 30.6 m³/min (1081 cfm)
- Rated Flow HR: 37.5 m³/min (1324 cfm)
- Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
- Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
- Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
- Attenuation LR: 15 dBA
- Attenuation HR: 20 dBA
- Inlet Clock Position: 3
- Outlet Clock Position: 9
- Type: Wrapped
- Style: Style 2
Packaged Dimensions
- Packaged Length: 0.925 m (37.00 inch)
- Packaged Width: 0.313 m (12.50 inch)
- Packaged Height: 0.244 m (9.75 inch)
- Packaged Weight: 17.161 kg (37.80 lb)
- Packaged Volume: 0.073 m3 (2.61 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 125850-09
- HTS Code: 8708923500
- UPC Code: 742330005125
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 3634 | |
| A P PARTS | 3634Q | |
| BARBER-GREENE | 1110389 | |
| BARBER-GREENE | 16R48 | |
| BOMBARDIER | 114144400 | |
| CATERPILLAR | 1110389 | |
| CENTURY II | 27Q82 | |
| CLARK | 2510883 | |
| DRESSER | 125925 | |
| DROTT | 224620 | |
| DYNAPAC | 00023374 | |
| ERICKSON | 34691 | |
| FAIRMONT RAILWAY MOTORS | F19008 | |
| FRANKLIN | 1503535 | |
| FREIGHTLINER | DNM090210 | |
| GRADALL | 73671042 | |
| GRADALL | 93671042 | |
| GRADALL | 83671042 | |
| GRADALL | VA25990015 | |
| GRADALL | VA25990014 | |
| GROVE | 7642000059 | |
| GROVE | 7642000055 | |
| HEAVY DUTY MFG | 31129W | |
| INGERSOLL RAND | 35797877 | |
| INGERSOLL RAND | 43919646 | |
| INGERSOLL RAND | RM43919646 | |
| INTERNATIONAL | DCM090210 | |
| JLG | 3220039 | |
| JOHN DEERE | 810803400 | |
| KERSHAW | 044751 | |
| KOMATSU | 125925 | |
| MANITOWOC | 7642000055 | |
| MI-JACK | S224620 | |
| NELSON | 86206M | |
| P & H | 27Q82 | |
| PETTIBONE | LL847245 | |
| PETTIBONE | FP1503535 | |
| TAMPO | 23374 | |
| TAYLOR | 2403044 | |
| TEREX | 211516500 | |
| TEREX | 27Q82 | |
| TEREX | C138018 | |
| TIMBERJACK | 810803400 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 902353 |
