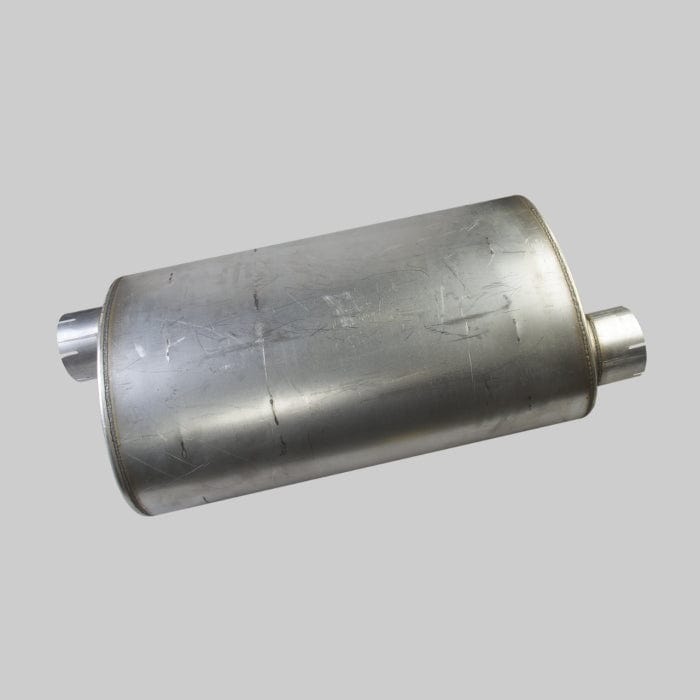

Muffler, Oval Style 2 - Donaldson M170101
Muffler, Oval Style 2 - Donaldson M170101
Regular price
£1,502.44
Regular price
Sale price
£1,502.44
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M170101
Muffler, Oval Style 2| Inlet Diameter | 6.04 inch (153.39 mm) |
| Outlet Diameter | 6.04 inch (153.39 mm) |
| Body Diameter Minimum | 14.12 inch (358.65 mm) |
| Body Diameter Maximum | 21.12 inch (536.45 mm) |
| Body Length | 35.00 inch (889 mm) |
| Overall Length | 47.00 inch (1193.8 mm) |
| Rated Flow LR | 2373 cfm (67.2 m³/min) |
| Rated Flow MR | 3355 cfm (95 m³/min) |
| Rated Flow HR | 4111 cfm (116.4 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 12 dBA |
| Attenuation HR | 18 dBA |
| Inlet Clock Position | 3:00 |
| Outlet Clock Position | 9:00 |
| Style | Style 2 |
Share
Collapsible content
Specifications
Attributes
- Inlet Diameter: 153.39 mm (6.04 inch)
- Outlet Diameter: 153.39 mm (6.04 inch)
- Body Diameter Minimum: 358.65 mm (14.12 inch)
- Body Diameter Maximum: 536.45 mm (21.12 inch)
- Body Length: 889 mm (35.00 inch)
- Overall Length: 1193.8 mm (47.00 inch)
- Rated Flow LR: 67.2 m³/min (2373 cfm)
- Rated Flow MR: 95 m³/min (3355 cfm)
- Rated Flow HR: 116.4 m³/min (4111 cfm)
- Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
- Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
- Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
- Attenuation LR: 12 dBA
- Attenuation HR: 18 dBA
- Inlet Clock Position: 3
- Outlet Clock Position: 9
- Style: Style 2
Packaged Dimensions
- Packaged Length: 1.285 m (51.38 inch)
- Packaged Width: 0.619 m (24.75 inch)
- Packaged Height: 0.406 m (16.25 inch)
- Packaged Weight: 47.670 kg (105.00 lb)
- Packaged Volume: 0.335 m3 (11.96 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 125850-05
- HTS Code: 8708923500
- UPC Code: 742330006078
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 3649Q | |
| A P PARTS | 3649 | |
| ALSTHOM | 41B590490P1 | |
| ASTEC UNDERGROUND | 3014051362 | |
| ATLAS COPCO | 1615793200 | |
| CATERPILLAR | 1G8122 | |
| CLARK | 1517516 | |
| CMI | 4013287000 | |
| CMI | 004013287000 | |
| CMI | 413287 | |
| COMPAIR | 26950440 | |
| DRESSER | PB1481 | |
| DRILTECH | 89487 | |
| EIMCO | 69008774 | |
| EIMCO | D2NM0M170101 | |
| GENERAL ELECTRIC | 41B590490P1 | |
| GRADALL | 202SPT063 | |
| HAVAM | HD4095 | |
| HEAVY DUTY MFG | 31209 | |
| INGERSOLL RAND | 56936396 | |
| INGERSOLL RAND | 23207269 | |
| INGERSOLL RAND | 52266152 | |
| INTERNATIONAL | DCM170101 | |
| JOY | 519020014 | |
| JOY | 51910214 | |
| KOEHRING | 420V6300 | |
| KOMATSU | 26950440 | |
| KOMATSU | PB1481 | |
| MACK | 2ME235 | |
| OSHKOSH | 10038G | |
| PEERLESS PUMP | 2683331000 | |
| PEERLESS PUMP | 2690019 | |
| RAYGO | 1G8122 | |
| RAYGO | 2370035 | |
| RIMPULL | 225029 | |
| SEAGRAVE | P3421291 | |
| SPARTAN MOTORS | 0644LL1001 | |
| SULLAIR | 405094 | |
| TEREX | 9079368 | |
| TEREX | 26950440 | |
| TEREX | 09079368 | |
| UNIT RIG EQUIPMENT | 51503 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 911613 | |
| VOLVO | 2512224 | |
| VOLVO | M2512224 | |
| WABCO | PB1481 | |
| WALGAHN-MOTORENTECHN | 810352 | |
| WALGAHN-MOTORENTECHN | 00810352 |
