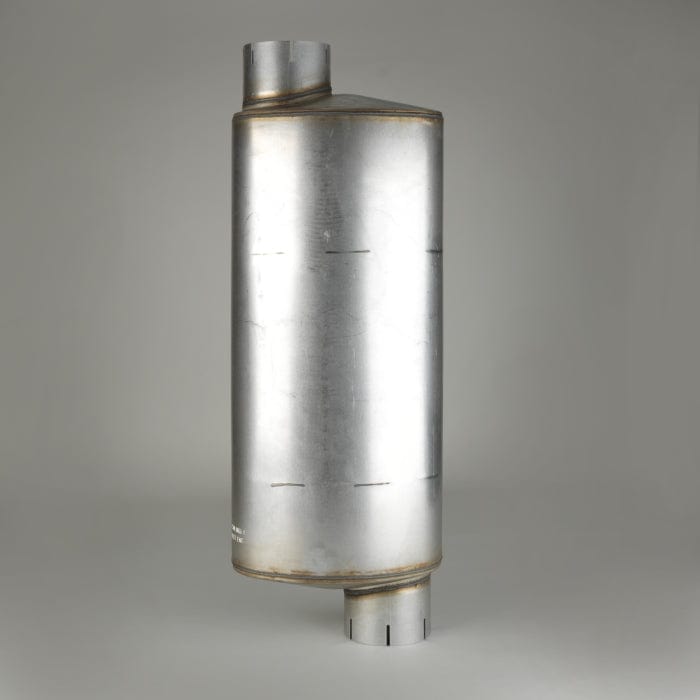

Muffler, Oval Style 2 - Donaldson M122300
Muffler, Oval Style 2 - Donaldson M122300
Regular price
£736.36
Regular price
Sale price
£736.36
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M122300
Muffler, Oval Style 2| Inlet Diameter | 6.04 inch (153.39 mm) |
| Outlet Diameter | 6.04 inch (153.39 mm) |
| Body Diameter Minimum | 10.00 inch (254 mm) |
| Body Diameter Maximum | 15.00 inch (381 mm) |
| Body Length | 31.75 inch (806.45 mm) |
| Overall Length | 42.50 inch (1079.5 mm) |
| Rated Flow LR | 2158 cfm (61.1 m³/min) |
| Rated Flow MR | 3051 cfm (86.4 m³/min) |
| Rated Flow HR | 3736 cfm (105.8 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 10 dBA |
| Attenuation HR | 15 dBA |
| Inlet Clock Position | 3:00 |
| Outlet Clock Position | 9:00 |
| Style | Style 2 |
Share
Collapsible content
Specifications
Attributes
- Inlet Diameter: 153.39 mm (6.04 inch)
- Outlet Diameter: 153.39 mm (6.04 inch)
- Body Diameter Minimum: 254 mm (10.00 inch)
- Body Diameter Maximum: 381 mm (15.00 inch)
- Body Length: 806.45 mm (31.75 inch)
- Overall Length: 1079.5 mm (42.50 inch)
- Rated Flow LR: 61.1 m³/min (2158 cfm)
- Rated Flow MR: 86.4 m³/min (3051 cfm)
- Rated Flow HR: 105.8 m³/min (3736 cfm)
- Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
- Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
- Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
- Attenuation LR: 10 dBA
- Attenuation HR: 15 dBA
- Inlet Clock Position: 3
- Outlet Clock Position: 9
- Style: Style 2
Packaged Dimensions
- Packaged Length: 1.125 m (45.00 inch)
- Packaged Width: 0.400 m (16.00 inch)
- Packaged Height: 0.275 m (11.00 inch)
- Packaged Weight: 13.620 kg (30.00 lb)
- Packaged Volume: 0.128 m3 (4.58 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 125850-06
- HTS Code: 8708923500
- UPC Code: 742330006054
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 3646Q | |
| A P PARTS | 3646 | |
| ASTEC UNDERGROUND | 3010305004 | |
| ATLAS COPCO | 5540175500 | |
| CMI | 4003012000 | |
| CMI | 004003012000 | |
| CMI | 43012 | |
| DRILTECH | 1487001 | |
| DRILTECH | 001487001 | |
| EIMCO | 9283113008 | |
| EUCLID | E12651880 | |
| FREIGHTLINER | DNM122300 | |
| HEAVY DUTY MFG | 31197 | |
| INGERSOLL RAND | 22139455 | |
| INGERSOLL RAND | 22139544 | |
| INGERSOLL RAND | 22139555 | |
| INGERSOLL RAND | 911753 | |
| INTERNATIONAL | DCM122300 | |
| LEROI | GD202SPT063 | |
| MORBARK | 29323095 | |
| NELSON | 86180M | |
| PIVOT POWER INC | 44M122300 | |
| RIKER | 15913 | |
| RIMPULL | 225039 | |
| SANDVIK | 001487001 | |
| SCHRAMM | 01290055 | |
| SCHRAMM | 1290055 | |
| STEMCO | 1901348 | |
| TAMROCK | 001487001 | |
| TRUCKEX | 3913 | |
| WAGNER MINING EQUIPMENT | 5540175500 | |
| WALKER MANUFACTURING | 22907 |
