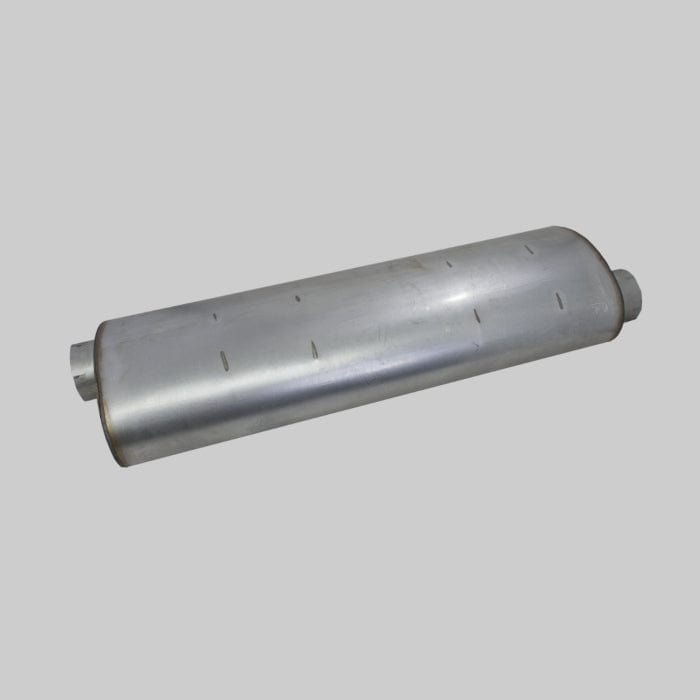

Muffler, Oval Style 2 - Donaldson M120448

Muffler, Oval Style 2 - Donaldson M120448

£651.83
£651.83
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson M120448

Muffler, Oval Style 2
Inlet Diameter 5.03 inch (127.64 mm)
Outlet Diameter 5.03 inch (127.64 mm)
Body Diameter Minimum 10.00 inch (254 mm)
Body Diameter Maximum 15.00 inch (381 mm)
Body Length 44.02 inch (1118 mm)
Overall Length 50.00 inch (1270 mm)
Rated Flow LR 1282 cfm (36.3 m³/min)
Rated Flow MR 1812 cfm (51.3 m³/min)
Rated Flow HR 2221 cfm (62.9 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 13 dBA
Attenuation HR 18 dBA
Inlet Clock Position 3:00
Outlet Clock Position 9:00
Style Style 2
View full details

Specifications

Attributes

  • Inlet Diameter: 127.64 mm (5.03 inch)
  • Outlet Diameter: 127.64 mm (5.03 inch)
  • Body Diameter Minimum: 254 mm (10.00 inch)
  • Body Diameter Maximum: 381 mm (15.00 inch)
  • Body Length: 1118 mm (44.02 inch)
  • Overall Length: 1270 mm (50.00 inch)
  • Rated Flow LR: 36.3 m³/min (1282 cfm)
  • Rated Flow MR: 51.3 m³/min (1812 cfm)
  • Rated Flow HR: 62.9 m³/min (2221 cfm)
  • Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
  • Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
  • Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
  • Attenuation LR: 13 dBA
  • Attenuation HR: 18 dBA
  • Inlet Clock Position: 3
  • Outlet Clock Position: 9
  • Style: Style 2

Packaged Dimensions

  • Packaged Length: 1.300 m (52.00 inch)
  • Packaged Width: 0.400 m (16.00 inch)
  • Packaged Height: 0.300 m (12.00 inch)
  • Packaged Weight: 26.037 kg (57.35 lb)
  • Packaged Volume: 0.162 m3 (5.78 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-07
  • HTS Code: 8708923500
  • UPC Code: 742330006016

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CATERPILLAR 6814910400
CRANE CARRIER 2100116
CRANE CARRIER 210116
FREIGHTLINER 6814910400
FREIGHTLINER A6814910400
FREIGHTLINER DNM120448
INTERNATIONAL DCM120448
MERCEDES-BENZ 6814910400
MERCEDES-BENZ DNMOM120448
TRUCKEX 3912
