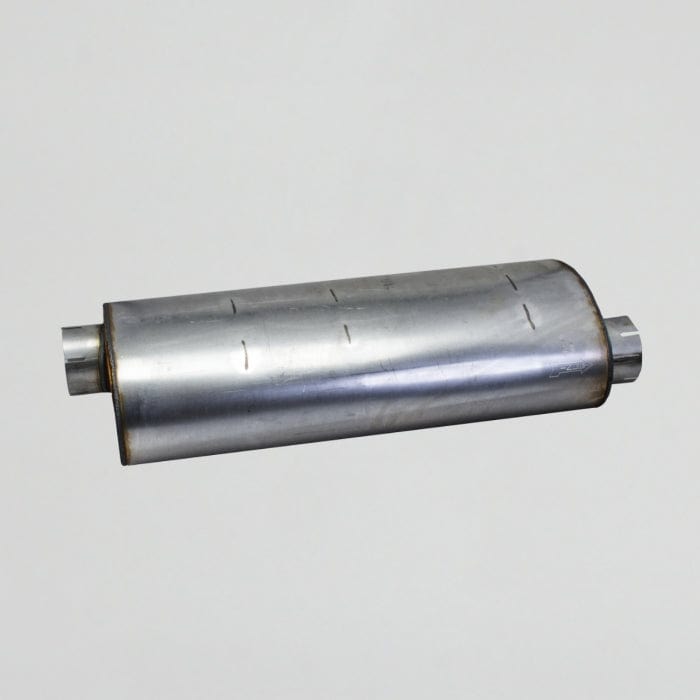

Muffler, Oval Style 2 - Donaldson M120365

Muffler, Oval Style 2 - Donaldson M120365

£619.38
£619.38
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson M120365

Muffler, Oval Style 2
Inlet Diameter 5.03 inch (127.64 mm)
Outlet Diameter 5.03 inch (127.64 mm)
Body Diameter Minimum 10.00 inch (254 mm)
Body Diameter Maximum 15.00 inch (381 mm)
Body Length 36.00 inch (914.4 mm)
Overall Length 42.50 inch (1079.5 mm)
Rated Flow LR 1307 cfm (37 m³/min)
Rated Flow MR 1847 cfm (52.3 m³/min)
Rated Flow HR 215 cfm (6.1 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 15 dBA
Attenuation HR 20 dBA
Inlet Clock Position 6:00
Outlet Clock Position 12:00
Style Style 2
View full details

Specifications

Attributes

  • Inlet Diameter: 127.64 mm (5.03 inch)
  • Outlet Diameter: 127.64 mm (5.03 inch)
  • Body Diameter Minimum: 254 mm (10.00 inch)
  • Body Diameter Maximum: 381 mm (15.00 inch)
  • Body Length: 914.4 mm (36.00 inch)
  • Overall Length: 1079.5 mm (42.50 inch)
  • Rated Flow LR: 37 m³/min (1307 cfm)
  • Rated Flow MR: 52.3 m³/min (1847 cfm)
  • Rated Flow HR: 6.1 m³/min (215 cfm)
  • Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
  • Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
  • Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
  • Attenuation LR: 15 dBA
  • Attenuation HR: 20 dBA
  • Inlet Clock Position: 6
  • Outlet Clock Position: 12
  • Style: Style 2

Packaged Dimensions

  • Packaged Length: 1.128 m (45.13 inch)
  • Packaged Width: 0.400 m (16.00 inch)
  • Packaged Height: 0.281 m (11.25 inch)
  • Packaged Weight: 20.702 kg (45.60 lb)
  • Packaged Volume: 0.132 m3 (4.70 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-06
  • HTS Code: 8708923500
  • UPC Code: 742330005958

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
A P PARTS 3676
A P PARTS 3676Q
AP EXHAUST PRODUCTS INC 3676
APE INDUSTRI AB 3676
ASTEC UNDERGROUND 30805L1106
ATLAS COPCO 1619508200
BADGER 76079257
CASE/CASE IH 3612182
CASE/CASE IH 153612182
CATERPILLAR A0416422000
CENTURY II 27Q160
CHARDONNET 7412018600
CHRYSLER 3784627
CRANE CARRIER 21024
CRANE CARRIER 21074
CUB CADET 492894C1
CUMMINS 3016377
DART MOM120365
DYNAFLEX 89500117
EAGLE TRUCK PRODUCTS E303
FIAT 153612182
FIAT 3612182
FMC 108973
FORD 9575M120365
FORD E4HS5225EA
FORD D3HS5230HA
FORD 9575MOM120365P
FREIGHTLINER MBTA0416422000
FREIGHTLINER DNM120365
GILLIG 5307171
GILLIG 5307171000
GRADALL 86981541
GRADALL 1402841
GRADALL 5826861
HAVAM HD4090
HEAVY DUTY MFG 31035
INGERSOLL RAND 9500900008
INTERNATIONAL 482894C1
INTERNATIONAL DCM120365
INTERNATIONAL 532124C1
JOY 50187850011
LEROI GD1417608
LEROI GD1402841
LINK BELT 28H0696
MACK 2ME336P2
MACK 2ME236P2
MAREMONT ZH002
MERCEDES-BENZ A0416422000
MERCEDES-BENZ A04164220
MORBARK 29323062
NELSON 86117M
NEW HOLLAND 153612182
P & H 27Z948D1
PEERLESS PUMP 2690018
PETERBILT 1413313
PETTIBONE A1204277
RIKER 15906Q
RIKER 15906
RIKER 94507
RIKER OV50032
RIKER 15006
SEDDON ATKINSON 65013S1
STEMCO 1909437
SULLIVAN PALATEK 50187850011
SULLIVAN PALATEK 51087850011
TAYLOR 4303076
TAYLOR 2403076
UNIT RIG EQUIPMENT 1035924
VME 4080072
VOLVO 027076542
VOLVO 49039304
VOLVO 230010054
VOLVO 230010021
VOLVO 230010077
VOLVO 27076542
VOLVO G12322863
VOLVO 049039304
WALGAHN-MOTORENTECHN 810344
WALGAHN-MOTORENTECHN 00810344
WALGAHN-MOTORENTECHN 810334
WALGAHN-MOTORENTECHN 00810334
WALKER MANUFACTURING 22833
WESTERN STAR TRUCK 230010021
WHITE 049039304
WHITE 230010021
WHITE 49039304
WHITE 027076542
WHITE 230010054
