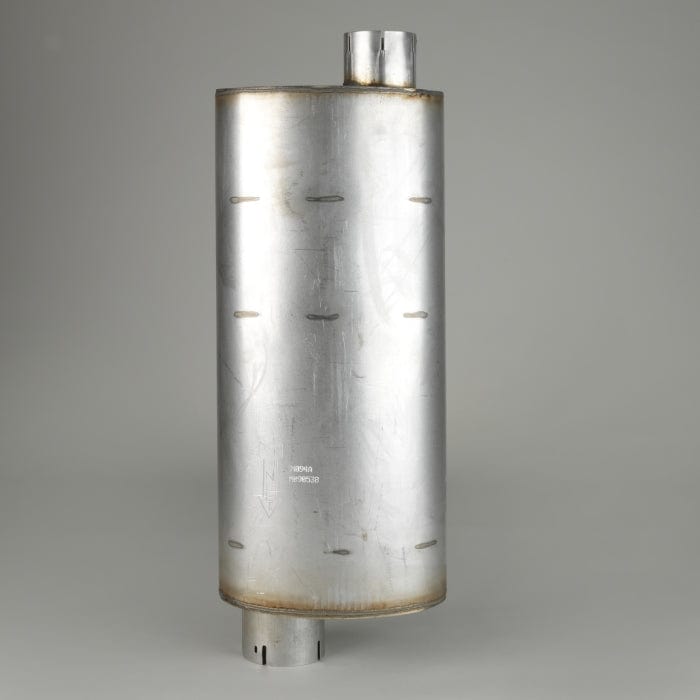

Muffler, Oval Style 2 - Donaldson M090538
Muffler, Oval Style 2 - Donaldson M090538
Regular price
£295.23
Regular price
Sale price
£295.23
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M090538
Muffler, Oval Style 2| Inlet Diameter | 4.02 inch (102.11 mm) |
| Outlet Diameter | 3.51 inch (89.28 mm) |
| Body Diameter Minimum | 8.25 inch (209.6 mm) |
| Body Diameter Maximum | 11.50 inch (292 mm) |
| Body Length | 26.00 inch (660.4 mm) |
| Overall Length | 32.25 inch (819.2 mm) |
| Rated Flow LR | 773 cfm (21.9 m³/min) |
| Rated Flow MR | 1095 cfm (31 m³/min) |
| Rated Flow HR | 1338 cfm (37.9 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 16 dBA |
| Attenuation HR | 21 dBA |
| Inlet Clock Position | 3:00 |
| Outlet Clock Position | 12:00 |
| Style | Style 2 |
Share
Collapsible content
Specifications
Attributes
- Inlet Diameter: 102.11 mm (4.02 inch)
- Outlet Diameter: 89.28 mm (3.51 inch)
- Body Diameter Minimum: 209.6 mm (8.25 inch)
- Body Diameter Maximum: 292 mm (11.50 inch)
- Body Length: 660.4 mm (26.00 inch)
- Overall Length: 819.2 mm (32.25 inch)
- Rated Flow LR: 21.9 m³/min (773 cfm)
- Rated Flow MR: 31 m³/min (1095 cfm)
- Rated Flow HR: 37.9 m³/min (1338 cfm)
- Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
- Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
- Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
- Attenuation LR: 16 dBA
- Attenuation HR: 21 dBA
- Inlet Clock Position: 3
- Outlet Clock Position: 12
- Style: Style 2
Packaged Dimensions
- Packaged Length: 0.925 m (37.00 inch)
- Packaged Width: 0.306 m (12.25 inch)
- Packaged Height: 0.244 m (9.75 inch)
- Packaged Weight: 11.259 kg (24.80 lb)
- Packaged Volume: 0.072 m3 (2.56 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 125850-08
- HTS Code: 8708923500
- UPC Code: 742330005231
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 3668 | |
| A P PARTS | 3668Q | |
| ACRAFIT | M20213 | |
| AP EXHAUST PRODUCTS INC | 3668 | |
| CLARK | 2501710 | |
| CLARK | 212507592 | |
| CLARK | 1796899 | |
| CMI | P2980578392 | |
| CMI | 2980518392 | |
| CMI | P2980518392 | |
| CRANE CARRIER | 21066 | |
| DART | MOM090538 | |
| EAGLE TRUCK PRODUCTS | E301 | |
| EUCLID | M12969930 | |
| EUCLID | 12969930 | |
| FMC | 9H0554 | |
| FMC | 9H554 | |
| FMC | AH6019 | |
| FORD | D5TA5225BDA1 | |
| FORD | D5TZ5230AH | |
| FORD | D0HZ5230J | |
| FORD | D5TQ5225BDA | |
| FORD | D8TZ5230AC | |
| FORD | 9575M090538 | |
| FORD | 9575MOM090538P | |
| FORD | D5TA5225BDA | |
| FREIGHTLINER | DNM090538 | |
| HEAVY DUTY MFG | 31127 | |
| INTERNATIONAL | 48488SC1 | |
| INTERNATIONAL | 437790C1 | |
| INTERNATIONAL | 426428C91 | |
| INTERNATIONAL | DCM090538 | |
| INTERNATIONAL | 997722C1 | |
| KOEHRING | 420V4390 | |
| KOEHRING | 22984056 | |
| KOEHRING | 4204378 | |
| LINK BELT | 9H0554 | |
| MACK | 2ME372 | |
| MAREMONT | ZF860 | |
| MERITOR | 102838 | |
| NELSON | 86213M | |
| REX | 2980518392 | |
| REXNORD | M250170 | |
| RIKER | 94007 | |
| RIKER | HD7034 | |
| RIKER | 81922 | |
| RIKER | OV409 | |
| RIKER | OV449 | |
| STEMCO | 1909528 | |
| STEMCO | 1909542 | |
| SULLAIR | 043405 | |
| SULLAIR | 49540 | |
| SULLAIR | 43405 | |
| TAYLOR | 2403039 | |
| TEREX | 15257794 | |
| TRACKMOBILE | 1010136 | |
| TRACKMOBILE | 1009243 | |
| TRUCKEX | 3668 | |
| VOLVO | 12969930 | |
| VOLVO | G798803 | |
| VOLVO | 27076530 | |
| WALGAHN-MOTORENTECHN | 810319 | |
| WALGAHN-MOTORENTECHN | 00810319 |
