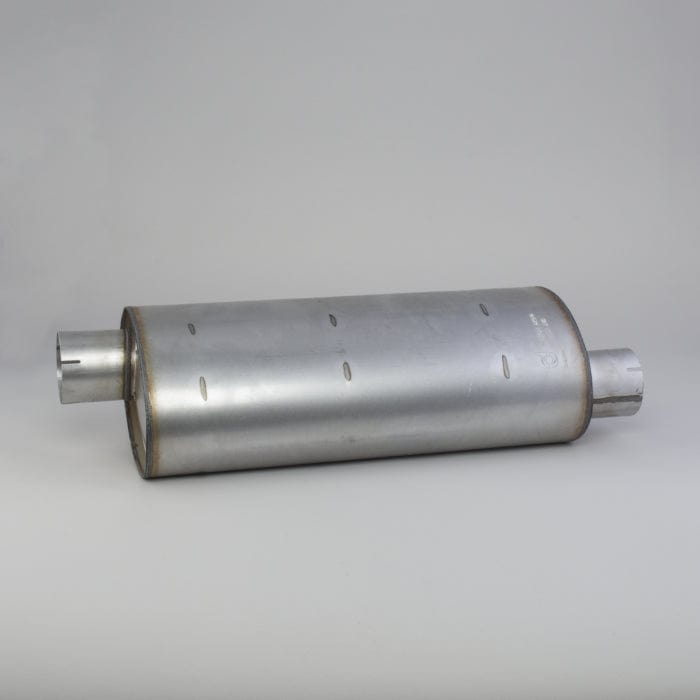

Muffler, Oval Style 2 - Donaldson M090534
Muffler, Oval Style 2 - Donaldson M090534
Regular price
£322.87
Regular price
Sale price
£322.87
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M090534
Muffler, Oval Style 2| Inlet Diameter | 4.02 inch (102.11 mm) |
| Outlet Diameter | 4.02 inch (102.11 mm) |
| Body Diameter Minimum | 8.25 inch (209.6 mm) |
| Body Diameter Maximum | 11.50 inch (292 mm) |
| Body Length | 26.00 inch (660.4 mm) |
| Overall Length | 33.75 inch (857.2 mm) |
| Rated Flow LR | 1024 cfm (29 m³/min) |
| Rated Flow MR | 1448 cfm (41 m³/min) |
| Rated Flow HR | 1776 cfm (50.3 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 13 dBA |
| Attenuation HR | 18 dBA |
| Inlet Clock Position | 3:00 |
| Outlet Clock Position | 9:00 |
| Style | Style 2 |
Share
Collapsible content
Specifications
Attributes
- Inlet Diameter: 102.11 mm (4.02 inch)
- Outlet Diameter: 102.11 mm (4.02 inch)
- Body Diameter Minimum: 209.6 mm (8.25 inch)
- Body Diameter Maximum: 292 mm (11.50 inch)
- Body Length: 660.4 mm (26.00 inch)
- Overall Length: 857.2 mm (33.75 inch)
- Rated Flow LR: 29 m³/min (1024 cfm)
- Rated Flow MR: 41 m³/min (1448 cfm)
- Rated Flow HR: 50.3 m³/min (1776 cfm)
- Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
- Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
- Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
- Attenuation LR: 13 dBA
- Attenuation HR: 18 dBA
- Inlet Clock Position: 3
- Outlet Clock Position: 9
- Style: Style 2
Packaged Dimensions
- Packaged Length: 0.925 m (37.00 inch)
- Packaged Width: 0.300 m (12.00 inch)
- Packaged Height: 0.225 m (9.00 inch)
- Packaged Weight: 11.010 kg (24.25 lb)
- Packaged Volume: 0.065 m3 (2.31 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 125850-09
- HTS Code: 8708923500
- UPC Code: 742330005217
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 3710 | |
| AP EXHAUST PRODUCTS INC | 3710 | |
| DART | MOM090534 | |
| EUCLID | 12969628 | |
| EUCLID | M12969628 | |
| FORD | E0HZ5230B | |
| FORD | E0HZ5230A | |
| FORD | E0HT5225AB | |
| FORD | 9575M090534 | |
| FORD | 9575MOM090534P | |
| FORD | C8HZ5230C | |
| FREIGHTLINER | DNM090534 | |
| HEAVY DUTY MFG | 31225 | |
| INTERNATIONAL | 2585723C1 | |
| INTERNATIONAL | 324937C1 | |
| INTERNATIONAL | DCM090534 | |
| INTERNATIONAL | 277177C91 | |
| MACK | 2ME337AP3 | |
| MAREMONT | ZF917 | |
| MERITOR | 102899 | |
| NELSON | 86153M | |
| STEMCO | 1909550 | |
| TRANSPORTATION ACCESSORIES | TAC800L | |
| WALKER MANUFACTURING | 22449 |
