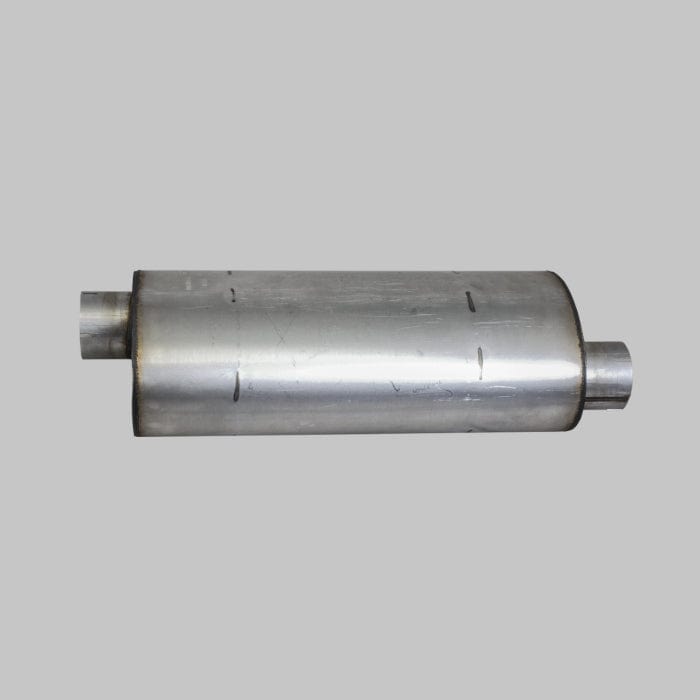

Muffler, Oval Style 2 - Donaldson M090280

Muffler, Oval Style 2 - Donaldson M090280

Regular price £280.78
Regular price Sale price £280.78
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)
 More payment options

Donaldson M090280

Muffler, Oval Style 2
Inlet Diameter 4.02 inch (102.11 mm)
Outlet Diameter 4.02 inch (102.11 mm)
Body Diameter Minimum 8.25 inch (209.6 mm)
Body Diameter Maximum 11.50 inch (292 mm)
Body Length 26.00 inch (660.4 mm)
Overall Length 3.51 inch (89.15 mm)
Rated Flow LR 992 cfm (28.1 m³/min)
Rated Flow MR 1402 cfm (39.7 m³/min)
Rated Flow HR 1716 cfm (48.6 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 12 dBA
Attenuation HR 18 dBA
Inlet Clock Position 3:00
Outlet Clock Position 9:00
Style Style 2
View full details

Collapsible content

Specifications

Attributes

  • Inlet Diameter: 102.11 mm (4.02 inch)
  • Outlet Diameter: 102.11 mm (4.02 inch)
  • Body Diameter Minimum: 209.6 mm (8.25 inch)
  • Body Diameter Maximum: 292 mm (11.50 inch)
  • Body Length: 660.4 mm (26.00 inch)
  • Overall Length: 89.15 mm (3.51 inch)
  • Rated Flow LR: 28.1 m³/min (992 cfm)
  • Rated Flow MR: 39.7 m³/min (1402 cfm)
  • Rated Flow HR: 48.6 m³/min (1716 cfm)
  • Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
  • Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
  • Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
  • Attenuation LR: 12 dBA
  • Attenuation HR: 18 dBA
  • Inlet Clock Position: 3
  • Outlet Clock Position: 9
  • Style: Style 2

Packaged Dimensions

  • Packaged Length: 0.930 m (37.19 inch)
  • Packaged Width: 0.313 m (12.50 inch)
  • Packaged Height: 0.250 m (10.00 inch)
  • Packaged Weight: 10.941 kg (24.10 lb)
  • Packaged Volume: 0.075 m3 (2.69 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-08
  • HTS Code: 8708923500
  • UPC Code: 742330005132
Manufacturer Name Manufacturer Part Number Notes
A P PARTS 3632
A P PARTS 3632Q
ACRAFIT M20153
AP EXHAUST PRODUCTS INC 3632
ASTEC UNDERGROUND AU105143
B R LEE INDUSTRIES 72112
CMI 004002728000
CMI 42728
DYNAFLEX 89400153
FORD 9575M090280
FORD C8TA5230M
FORD C8TZ5230C
FREIGHTLINER DNM090280
HEAVY DUTY MFG 31123
HEAVY DUTY MFG 31280
INTERNATIONAL 358921C1
INTERNATIONAL 520541C1
INTERNATIONAL 324937C91
INTERNATIONAL DCM090280
MACK 2MD337AP3
MACK 2ME335AP2
MAREMONT ZF868
MERITOR 102894
NELSON 86179M
NELSON 86153M
NELSON 86661M
PETTIBONE LL847437
RAYGO 23570014
RIKER 81008
RIKER 81908
ROSCO 72112
STEMCO 1909551
STEMCO 1909538
STEMCO 1909545
STEMCO 1901157
STEMCO 1909505
TEREX 840031
TRANSPORTATION ACCESSORIES TAC800
TRUCKEX 3710
TRUCKEX 3632
WALKER MANUFACTURING 22004
