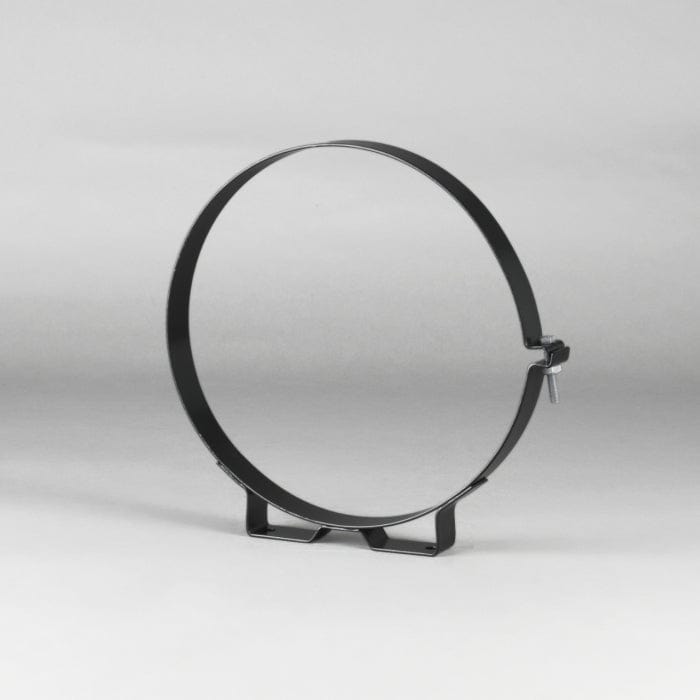

Mounting Band - Donaldson P013722
Mounting Band - Donaldson P013722
Regular price
£25.92
Regular price
Sale price
£25.92
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P013722
Mounting Band| Bolt Hole Center Spacing | 6 inch (152.4 mm) |
| Inner Diameter | 12.99 inch (330 mm) |
| Width | 1.50 inch (38 mm) |
| Bolt Hole Circle Diameter | 0.41 inch (10.4 mm) |
| Center Height | 7.24 inch (184 mm) |
Share
Collapsible content
Specifications
Attributes
- Bolt Hole Center Spacing: 152.4 mm (6 inch)
- Inner Diameter: 330 mm (12.99 inch)
- Width: 38 mm (1.50 inch)
- Bolt Hole Circle Diameter: 10.4 mm (0.41 inch)
- Center Height: 184 mm (7.24 inch)
Packaged Dimensions
- Packaged Length: 0.345 m (13.78 inch)
- Packaged Width: 0.364 m (14.57 inch)
- Packaged Height: 0.049 m (1.97 inch)
- Packaged Weight: 1.062 kg (2.34 lb)
- Packaged Volume: 0.006 m3 (0.23 ft3)
Other Information
- Country of Origin: Germany
- HTS Code: 73269098 90
- UPC Code: 742330006306
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ACMAT | 803001102000 | |
| AG CHEM EQUIPMENT | 522579 | |
| AG CHEM EQUIPMENT | 32445 | |
| AGCO | WR32445 | |
| AGCO | 3780958M1 | |
| ALLISON | 9138823 | |
| ARDCO | LL847436 | |
| B R LEE INDUSTRIES | 72835 | |
| BADGER | LG78097 | |
| BADGER | 76080032 | |
| BARLOWORLD FINANZAUTO | CISPA070182M07A | |
| BLOUNT | 10057465 | |
| CAMECO | 609082 | |
| CAMECO | 00609082 | |
| CAMECO | 60009082 | |
| CAMECO | 0060009082 | |
| CASE/CASE IH | 1849413 | |
| CASE/CASE IH | 432196A1 | |
| CASE/CASE IH | 87042086 | |
| CASE/CASE IH | 336942A1 | |
| CASE/CASE IH | 73181675 | |
| CATERPILLAR | 1743600 | |
| CATERPILLAR | P2178300 | |
| CATERPILLAR | 160071 | |
| CATERPILLAR | 10057465 | |
| CATERPILLAR | 300101102 | |
| CEDARAPIDS | 456900013303 | |
| CEDARAPIDS | 456900011701 | |
| CLARK | 427059 | |
| CLARK | 941437 | |
| CLARK | 511514 | |
| CLARK,J.L. | 941437 | |
| COLT | 123352004 | |
| COMPAIR | 100002431 | |
| CRANE CARRIER | 324521 | |
| CRANE CARRIER | 29438 | |
| CRANE CARRIER | 0290438 | |
| CRANE CARRIER | 0324521 | |
| CUB CADET | 305307R91 | |
| CUB CADET | 525638C91 | |
| CUMMINS | 10000078 | |
| CUMMINS | 100000078 | |
| CUMMINS | 10000648 | |
| CUMMINS | CDD000016 | |
| CUMMINS | 11000513 | |
| DAF | 1144689 | |
| DART | PPP013722 | |
| DENYO | Y0602040558 | |
| DETROIT DIESEL | 09138823 | |
| DETROIT DIESEL | 5196950 | |
| DETROIT DIESEL | 9138823 | |
| DIGITAL EQUIPMENT | 3243H2 | |
| DITCH WITCH | 194673A | |
| DITCH WITCH | 194673 | |
| DITCH WITCH | 196316A | |
| DRONNINGBORG | 46485000 | |
| DYNAPAC | 4700802550 | |
| DYNAPAC | 802550U | |
| DYNAPAC | 802550 | |
| EIMCO | 64110326 | |
| EIMCO | 88546549 | |
| ENMTP CPG | 7368868 | |
| EUCLID | M12577369 | |
| EUCLID | 12577369 | |
| EVOBUS | A4440900042 | |
| FAUN | 99707005175 | |
| FIAT | 1849413 | |
| FMC | C6H0011 | |
| FORD | 9576P013722 | |
| FORD OTOSAN | 3C469628AA | |
| FRANKLIN | 1514049 | |
| FREIGHTLINER | A0315613000 | |
| FREIGHTLINER | DNP013722 | |
| FURUKAWA | 38802111130 | |
| GARDNER DENVER | SD0000001908 | |
| GARDNER DENVER | 1409970 | |
| GARDNER DENVER | 8507415 | |
| GRADALL | 80993122 | |
| GROVE | 7056000628 | |
| GROVE | 7056100000 | |
| HANOMAG TRAKTOREN | 42401H2170 | |
| HAWKER SIDDELEY | 31700 | |
| HOBART | EB6020 | |
| HURRICANE COMPRESSOR | 61761 | |
| HYSTER | T1506773 | |
| HYSTER | 1506773 | |
| HYSTER | 1606773 | |
| IKARUS | 7000313722 | |
| INGERSOLL RAND | 35803147 | |
| INGERSOLL RAND | 57251720 | |
| INTERNATIONAL | 548455C1 | |
| JCB | 32925338 | |
| JOHN DEERE | 841061800 | |
| JOHN DEERE | AT136715 | |
| KALMAR | 9235020005 | |
| KENWORTH | PPP013722 | |
| LBX COMPANY LLC | C6H0011 | |
| LEROI | GD1409970 | |
| LETOURNEAU | 4163928 | |
| LEYLAND-DAF (LDV) | 3201366000 | |
| LIEBHERR | 7368868 | |
| LINK BELT | KTH0434 | |
| LINK BELT | 1X6691 | |
| LINK BELT | C6H0011 | |
| LOESING | 020224 | |
| LOESING | 20224 | |
| LULL | P28086 | |
| MACK | 7MD2120 | |
| MAN | 56084025512 | |
| MANITOWOC | 7056100000 | |
| MCNEILUS | 67009BX | |
| MERCEDES-BENZ | DNP013722 | |
| MERCEDES-BENZ | A0315613000 | |
| MI-JACK | 33160301 | |
| MI-JACK | 1279SD007 | |
| MORBARK | 29321132 | |
| NACCO MATERIALS | 1506773 | |
| NATO (NSN) | 5340014942486 | |
| NEOPART | KN0203003 | |
| NEOPLAN | KN0203003 | |
| NEUSON | 1000104041 | |
| NEW FLYER INDUSTRIES LTD | 6952368 | |
| NEW FLYER INDUSTRIES LTD | 5952368 | |
| NEW HOLLAND | 8919 | |
| NEW HOLLAND | 1849413 | |
| NEW HOLLAND | 73181675 | |
| NEW HOLLAND | 87042086 | |
| ORENSTEIN & KOPPEL | 2900342 | |
| OSHKOSH | 67009BX | |
| OSHKOSH | 9344G | |
| OTTAWA TRUCK | 9235020005 | |
| OTTAWA TRUCK | 9235050005 | |
| PERKINS | 12000322 | |
| PERKINS | CV65253 | |
| PERKINS | 33500414 | |
| PETTIBONE | LL847436 | |
| QUINCY COMPRESSOR | 123352004 | |
| REEDRILL | 435293 | |
| RENAULT VI | 5H08030014 | |
| RENAULT VI | 7700053124A | |
| RENAULT VI | 7700053124 | |
| RENAULT VI | 5010649169 | |
| ROSCO | 72835 | |
| SANDVIK | 64110326 | |
| SDMO | 30801002401 | |
| SEAGRAVE | P2178300 | |
| SISU | 10605 | |
| SOLMEC SPA | 2102106020 | |
| SPARTAN MOTORS | 1335HH2001 | |
| SULLIVAN PALATEK | 00131130 | |
| TAMROCK | 671727 | |
| TAMROCK | 04710341 | |
| TAMROCK | 4710341 | |
| TAMROCK | 88546549 | |
| TAYLOR | 2403868 | |
| TEREX | 15257653 | |
| TIMBERJACK | F060753 | |
| TIMBERJACK | 841061800 | |
| TREEMME TECNOLOGY | 3M004443 | |
| TYLER POWER PRODUCTS | 87042086 | |
| VALMET | 10605 | |
| VERMEER | 280922001 | |
| VERMEER | 2809220011 | |
| VME | 4067157 | |
| VME | 9138823 | |
| VOLVO | 12577369 | |
| VOLVO | 220093810 | |
| VOLVO | 220033602 | |
| WALGAHN-MOTORENTECHN | 00810368 | |
| WALGAHN-MOTORENTECHN | 810368 | |
| WILMAR | 32445 | |
| WINDHOFF | 1010200002557 |
