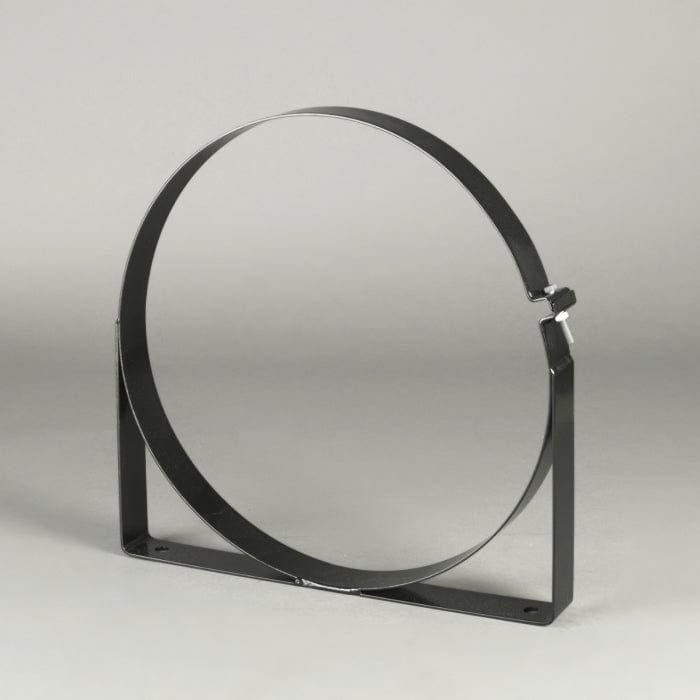

Mounting Band - Donaldson H770037
Mounting Band - Donaldson H770037
Regular price
£57.47
Regular price
Sale price
£57.47
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson H770037
Mounting Band| Bolt Hole Center Spacing | 15.75 inch (400 mm) |
| Inner Diameter | 17.95 inch (456 mm) |
| Width | 2.00 inch (50.8 mm) |
| Bolt Hole Circle Diameter | 0.55 inch (14 mm) |
| Center Height | 9.21 inch (234 mm) |
Share
Collapsible content
Specifications
Attributes
- Bolt Hole Center Spacing: 400 mm (15.75 inch)
- Inner Diameter: 456 mm (17.95 inch)
- Width: 50.8 mm (2.00 inch)
- Bolt Hole Circle Diameter: 14 mm (0.55 inch)
- Center Height: 234 mm (9.21 inch)
Packaged Dimensions
- Packaged Length: 0.463 m (18.50 inch)
- Packaged Width: 0.453 m (18.11 inch)
- Packaged Height: 0.059 m (2.36 inch)
- Packaged Weight: 2.638 kg (5.82 lb)
- Packaged Volume: 0.013 m3 (0.46 ft3)
Other Information
- Country of Origin: Germany
- HTS Code: 7326909890
- UPC Code: 742330086650
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ATLAS COPCO | 1610415900 | |
| ATLAS COPCO | 1606400400 | |
| BELL | 204540 | |
| BELL | AT254109 | |
| CAMECO | 0061380379 | |
| CAMECO | 0701372282J | |
| CAMECO | 0701372282 | |
| CMI | 1114124401 | |
| CUMMINS | 11000429 | |
| CUMMINS | 3629970 | |
| CUMMINS | CDD000136 | |
| CURTIS TOLEDO | RN240883 | |
| DEMAG | 49038340 | |
| DETROIT DIESEL | DH770037 | |
| DOOSAN | MX507779 | |
| DRILTECH | 002005020 | |
| ENMTP CPG | 550916514 | |
| FG WILSON | 160040 | |
| FNSS-SAVUNMA SISTERMLERI A | 114748 | |
| FRESIA | 102141 | |
| GUASCOR | 7650181 | |
| HAVAM | HD1120 | |
| HURRICANE COMPRESSOR | 63440 | |
| INGERSOLL RAND | 39932546 | |
| IVECO | 500590351 | |
| KALMAR | 9235020007 | |
| KOMATSU | 49038340 | |
| KRONE | 09403090 | |
| KRONE | 9403090 | |
| KUHN AUDUREAU | A7120016 | |
| LIEBHERR | 550916514 | |
| MAN | 82082400025 | |
| MANITOWOC | A029570 | |
| MORBARK | 29320650 | |
| MORBARK | 29321184 | |
| MOXY | 507779 | |
| MTU | X00023803 | |
| NEUSON | 1000182578 | |
| NEW HOLLAND | 84397946 | |
| PIVOT POWER INC | H770037001140 | |
| RAMA MOTORI | JPPH770037 | |
| REGGIANE CRANES | 7DH770037 | |
| RENAULT VI | 5010114825 | |
| RIMPULL | 215049 | |
| SCANIA | 1946097 | |
| SCHRAMM | 03780142 | |
| SDMO | 30801086301 | |
| SEAGRAVE | P2698000 | |
| SOILMEC | 40045091 | |
| TAMROCK | 4710036 | |
| TAMROCK | 671730 | |
| TAMROCK | 04710036 | |
| TAMROCK | 504806 | |
| TEREX | SEEORDERNUMBER | |
| TEREX | 15304488 | |
| TEREX | 15306839 | |
| TOIJALA WORKS | K1004083H | |
| VAN HOOL | 11289757 | |
| VOITH | 19000374810 | |
| WALGAHN-MOTORENTECHN | 00811707 | |
| WALGAHN-MOTORENTECHN | 811707 | |
| WIRTGEN | 194006 | |
| WORDSWORTH HOLDINGS PLC | SW621858 |
