• Donaldson Mounting Band - Donaldson H008444
1 1

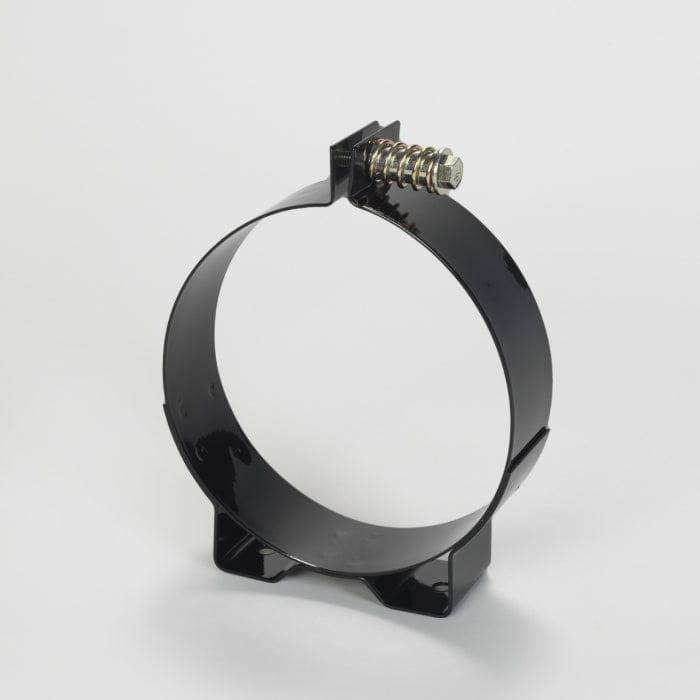

Mounting Band - Donaldson H008444

Mounting Band - Donaldson H008444

£21.90
£21.90
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson H008444

Mounting Band
Bolt Hole Center Spacing 3.54 inch (89.9 mm)
Inner Diameter 6.79 inch (172.5 mm)
Width 1.98 inch (50.3 mm)
Bolt Hole Circle Diameter 0.35 inch (9 mm)
Center Height 3.94 inch (100 mm)
View full details

Specifications

Attributes

  • Bolt Hole Center Spacing: 89.9 mm (3.54 inch)
  • Inner Diameter: 172.5 mm (6.79 inch)
  • Width: 50.3 mm (1.98 inch)
  • Bolt Hole Circle Diameter: 9 mm (0.35 inch)
  • Center Height: 100 mm (3.94 inch)

Packaged Dimensions

  • Packaged Length: 0.421 m (16.85 inch)
  • Packaged Width: 0.400 m (16.00 inch)
  • Packaged Height: 0.059 m (2.35 inch)
  • Packaged Weight: 0.676 kg (1.49 lb)
  • Packaged Volume: 0.010 m3 (0.37 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 094580
  • HTS Code: 7326909890
  • UPC Code: 742330003558

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AUSTOFT 42035587
BOBCAT 6673891
CASE/CASE IH N103334
DIAMANT BOART INC 523292001
DITCH WITCH 194603
GEHL 42035587
GROVE 7056000617
HYUNDAI 11FK20020
INGERSOLL RAND 59101576
JACOBSEN 4128084
JOHN DEERE 811887300
JOHN DEERE 811887300J
KYSOR 460C107
MORBARK 29321153
MORBARK 29321192
P & H 1016Z1382
PERKINS 33500217
PERKINS 13000009
SIGMA AIR CONDITIONING 460C107
SKYJACK 147311AA
TAYLOR VTH008444
TELEDYNE A033922
TIMBERJACK 811887300
TORO 937486
VERMEER 143055001
YANMAR 12968712570
