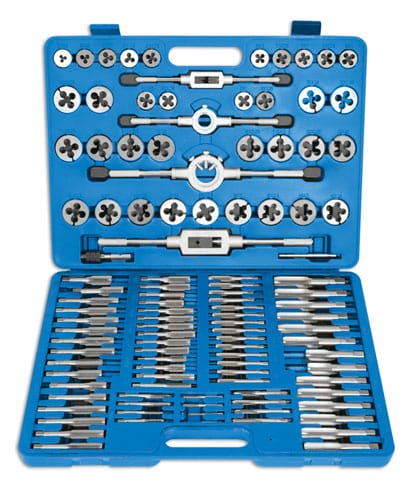

Metric Tap & Die Set 110pc - (Laser Tools 4554)

Professional quality metric tap and die set, featuring split dies, a comprehensive array of taps, three tap holders and two die holders. The taps are supplied in pairs - a taper tap and a plug tap. The taper tap has a gradual cutting action, due to the pronounced chamfer of the thread, making it suitable for starting a thread. The plug tap has far less of a chamfer and is used after the taper tap to take the thread close to the bottom of the hole. Supplied in a blow-moulded storage case.

• Taps (2 of each) and dies, sizes: M2 x 0.4, M3 x 0.5, M4 x 0.7, M5 x 0.8, M6 x 0.75, M6 x 1.0, M7 x 0.75, M7 x 1.0, M8 x 0.75, M8 x 1.0, M8 x 1.25, M9 x 0.75, M9 x 1.0, M9 x 1.25, M10 x 0.75, M10 x 1.0, M10 x 1.25, M10 x 1.5, M11 x 0.75, M11 x 1.0, M11 x 1.25, M11 x 1.5, M12 x 0.75, M12 x 1.0, M12 x 1.25, M12 x 1.5, M12 x 1.75, M14 x 1.0, M14 x 1.25, M14 x 1.5, M14 x 2.0, M16 x 1.0, M16 x 1.5, M16 x 2.0 and M18 x 1.5.
• 2 x adjustable tap holders M6 - M20 (1/4" - 3/4") and M3 - M12 (1/16" - 1/2").
• T-bar tap holder; 2 x die holder 25mm (1") dia and 38mm (1 1/2" dia).
• Manufactured from alloy steel.
• Supplied in a blow-moulded case for safe storage.
