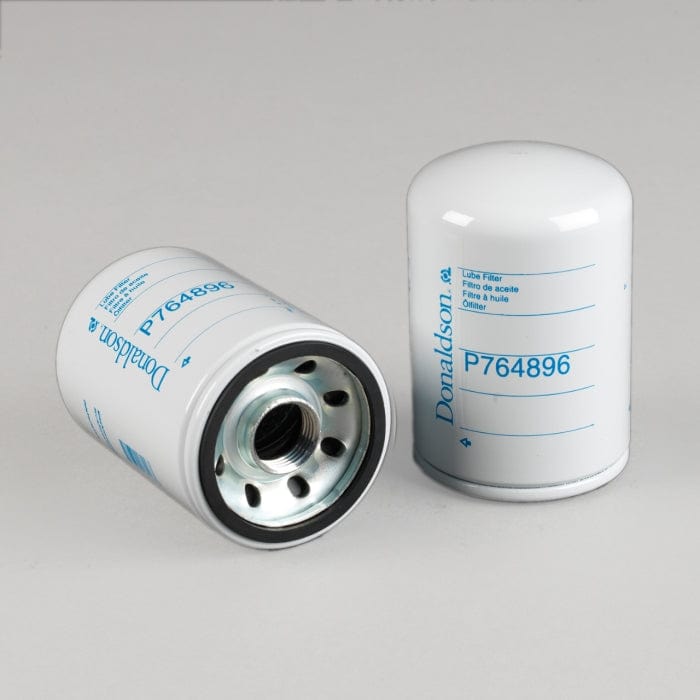

Lube Filter, Spin-On Full Flow - Donaldson P764896

Attributes

• Outer Diameter: 78 mm (3.07 inch)
• Thread Size: 1-12 UN
• Length: 122.5 mm (4.82 inch)
• Gasket OD: 72 mm (2.83 inch)
• Gasket ID: 63 mm (2.48 inch)
• Efficiency 50%: 27 micron
• Efficiency Test Std: ISO 16889
• Bypass Valve Setting LR: 2.2 bar (32 psi)
• Bypass Valve Setting HR: 2.8 bar (41 psi)
• Media Type: Cellulose
• Collapse Burst: 10 bar (145 psi)
• Type: Full-Flow
• Style: Spin-On

Packaged Dimensions

• Packaged Length: 0.001 m (0.04 inch)
• Packaged Width: 0.001 m (0.04 inch)
• Packaged Height: 0.001 m (0.04 inch)
• Packaged Weight: 0.414 kg (0.91 lb)
• Packaged Volume: 0.001 m3 (0.04 ft3)

Other Information

• Country of Origin: Bosnia and Herzegovina
• NMFC Code: 121510
• HTS Code: 8421230090
• UPC Code: 742330181188
