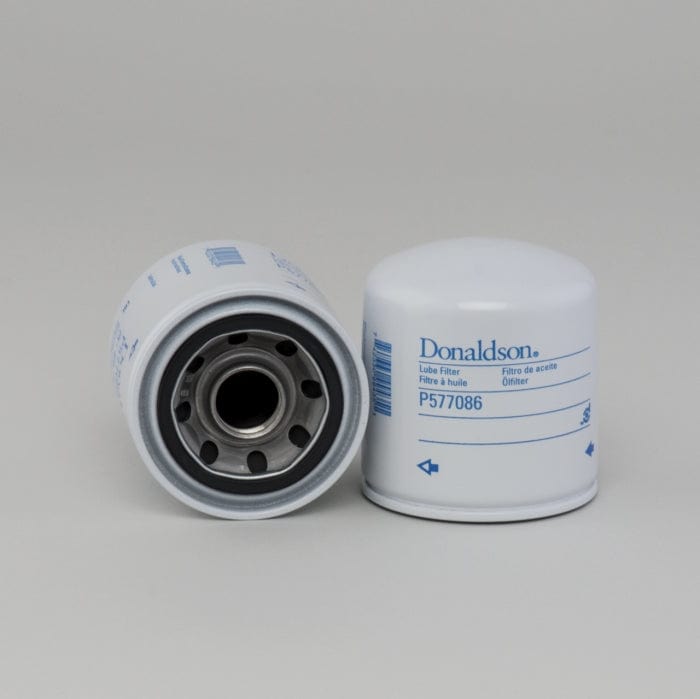

Lube Filter, Spin-On Full Flow - Donaldson P577086
Lube Filter, Spin-On Full Flow - Donaldson P577086
Regular price
£16.43
Regular price
Sale price
£16.43
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P577086
Lube Filter, Spin-On Full Flow| Outer Diameter | 3.66 inch (93 mm) |
| Thread Size | M27 x 2 |
| Length | 4.02 inch (102 mm) |
| Gasket OD | 2.81 inch (71.5 mm) |
| Gasket ID | 2.42 inch (61.5 mm) |
| Stand Pipe | Yes Y/N |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 30 psi (2.07 bar) |
| Bypass Valve Setting HR | 37 psi (2.55 bar) |
| Media Type | Cellulose |
| Style | Spin-On |
| Primary Application | CNH 87679598 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 93 mm (3.66 inch)
- Thread Size: M27 x 2
- Length: 102 mm (4.02 inch)
- Gasket OD: 71.5 mm (2.81 inch)
- Gasket ID: 61.5 mm (2.42 inch)
- Stand Pipe: Yes Y/N
- Bypass Valve: Yes
- Bypass Valve Setting LR: 2.07 bar (30 psi)
- Bypass Valve Setting HR: 2.55 bar (37 psi)
- Media Type: Cellulose
- Style: Spin-On
- Primary Application: CNH 87679598
Packaged Dimensions
- Packaged Length: 0.105 m (4.20 inch)
- Packaged Width: 0.105 m (4.20 inch)
- Packaged Height: 0.110 m (4.40 inch)
- Packaged Weight: 0.477 kg (1.05 lb)
- Packaged Volume: 0.001 m3 (0.04 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-06
- HTS Code: 8421230090
- UPC Code: 742330994351
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CASE/CASE IH | 87679598 | |
| CASE/CASE IH | 47535939 | |
| CASE/CASE IH | 87679598 | |
| CASE/CASE IH | 50418251 | |
| CASE/CASE IH | 87679494 | |
| CATERPILLAR | 4416852 | |
| CLAAS | 6005031028 | |
| CLAAS | 11515210 | |
| CLAAS | 11392930 | |
| IVECO | 5802431043 | |
| IVECO | 5801724485 | |
| IVECO | 504182851 | |
| JOHN DEERE | ER5802431043 | |
| LANDINI | 6513892M3 | |
| MANITOU | 317039 | |
| NEW HOLLAND | 87679598 | |
| NEW HOLLAND | 87679494 | |
| NEW HOLLAND | 5802001312 | |
| PERKINS | 5589401 | |
| PERKINS | 4416851 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CASE/CASE IH 420 | - | SKID STEER LOADER | - | CASE/CASE IH 422TM2 | - |
| CASE/CASE IH 580N | - | BACKHOE LOADER | - | CASE/CASE IH F5C | - |
| CASE/CASE IH 580SN | - | BACKHOE LOADER | - | CASE/CASE IH F5C | - |
| CASE/CASE IH 580SN WT | - | BACKHOE LOADER | - | CASE/CASE IH F5C | - |
| CASE/CASE IH 590SN | - | BACKHOE LOADER | - | CASE/CASE IH F5C | - |
| CLAAS NEXOS 240 | - | TRACTOR | NEXOS | FPT INDUSTRIAL N45MNT | - |
| NEW HOLLAND C185 | - | LOADER COMPACT TRACKED | C SERIES | IVECO F5C E5454 | - |
| NEW HOLLAND C227 | - | LOADER COMPACT TRACKED | C SERIES | IVECO F5C E9454 | - |
| NEW HOLLAND C232 | - | LOADER COMPACT TRACKED | C SERIES | IVECO F5C E9454 | - |
| NEW HOLLAND C238 | - | LOADER COMPACT TRACKED | C SERIES | IVECO F5C E9454 | - |
| NEW HOLLAND L180 | - | SKID STEER LOADER | L SERIES | IVECO F5C E9454 | - |
| NEW HOLLAND L185 | - | SKID STEER LOADER | L SERIES | IVECO F5C E5454 | - |
| NEW HOLLAND L223 | - | SKID STEER LOADER | L SERIES | FPT INDUSTRIAL F5C E9454 | - |
| NEW HOLLAND L225 | - | SKID STEER LOADER | L SERIES | FPT INDUSTRIAL F5C E9454 | - |
| NEW HOLLAND L230 | - | SKID STEER LOADER | L SERIES | IVECO F5C E9454 | - |
| NEW HOLLAND T4.105F | - | TRACTOR | T4 SERIES | FPT INDUSTRIAL NEF | TIER 3 |
| NEW HOLLAND T4.105V | - | TRACTOR | T4 SERIES | FPT INDUSTRIAL NEF | TIER 3 |
| NEW HOLLAND T4.65 | - | TRACTOR | T4 POWERSTAR SERIES | FPT INDUSTRIAL F5C | TIER 3 |
| NEW HOLLAND T4.65V | - | TRACTOR | T4 SERIES | FPT INDUSTRIAL F5C | TIER 3 |
| NEW HOLLAND T4.75 | - | TRACTOR | T4 POWERSTAR SERIES | FPT INDUSTRIAL F5C | TIER 3 |
| NEW HOLLAND T4.75F | - | TRACTOR | T4 SERIES | FPT INDUSTRIAL F5C | TIER 3 |
| NEW HOLLAND T4.75V | - | TRACTOR | T4 SERIES | FPT INDUSTRIAL F5C | TIER 3 |
| NEW HOLLAND T4.85F | - | TRACTOR | T4 SERIES | FPT INDUSTRIAL F5C | TIER 3 |
| NEW HOLLAND T4.85V | - | TRACTOR | T4 SERIES | FPT INDUSTRIAL F5C | TIER 3 |
| NEW HOLLAND T4.95F | - | TRACTOR | T4 SERIES | FPT INDUSTRIAL NEF | TIER 3 |
| NEW HOLLAND T4.95V | - | TRACTOR | T4 SERIES | FPT INDUSTRIAL NEF | TIER 3 |
| NEW HOLLAND T4020 | - | TRACTOR | T4000 SERIES | IVECO F5C | - |
| NEW HOLLAND T4020V | - | TRACTOR | T4000 SERIES | IVECO F5C | - |
| NEW HOLLAND T4030 | - | TRACTOR | T4000 SERIES | IVECO F5C | - |
| NEW HOLLAND T4030F | - | TRACTOR | T4000 SERIES | IVECO F5C | - |
| NEW HOLLAND T4030N | - | TRACTOR | T4000 SERIES | IVECO F5C | - |
| NEW HOLLAND T4030V | - | TRACTOR | T4000 SERIES | IVECO F5C | - |
| NEW HOLLAND T4040F | - | TRACTOR | T4000 SERIES | NEW HOLLAND NEF445TA/M3 | - |
| NEW HOLLAND T4040N | - | TRACTOR | T4000 SERIES | NEW HOLLAND NEF445TA/M3 | - |
| NEW HOLLAND T4040V | - | TRACTOR | T4000 SERIES | NEW HOLLAND NEF445TA/M3 | - |
| NEW HOLLAND T5.105 | - | TRACTOR | T5 SERIES | FPT INDUSTRIAL F5C | TIER 4 |
| NEW HOLLAND T5.115 | - | TRACTOR | T5 SERIES | FPT INDUSTRIAL F5C | TIER 4 |
| NEW HOLLAND T5.75 | - | TRACTOR | T5 SERIES | FPT INDUSTRIAL F5C | TIER 4 |
| NEW HOLLAND T5.85 | - | TRACTOR | T5 SERIES | FPT INDUSTRIAL F5C | TIER 4 |
| NEW HOLLAND T5.95 | - | TRACTOR | T5 SERIES | FPT INDUSTRIAL F5C | TIER 4 |
| NEW HOLLAND TD4020F | - | TRACTOR | TD SERIES | IVECO F5C | - |
| NEW HOLLAND TD4030F | - | TRACTOR | TD SERIES | IVECO F5C | - |
| NEW HOLLAND TD4040F | - | TRACTOR | TD SERIES | IVECO F5C | - |
| NEW HOLLAND TD5.105 | - | TRACTOR | TD5 SERIES | FPT INDUSTRIAL F5C | TIER 4 |
| NEW HOLLAND TD5.115 | - | TRACTOR | TD5 SERIES | FPT INDUSTRIAL F5C | TIER 4 |
| NEW HOLLAND TD5.85 | - | TRACTOR | TD5 SERIES | FPT INDUSTRIAL F5C | TIER 4 |
| NEW HOLLAND TD5.95 | - | TRACTOR | TD5 SERIES | FPT INDUSTRIAL F5C | TIER 4 |
| NEW HOLLAND TD5010 | - | TRACTOR | TD SERIES | IVECO F5C | - |
| NEW HOLLAND TD5020 | - | TRACTOR | TD SERIES | IVECO F5C | - |
| NEW HOLLAND TD5030 | - | TRACTOR | TD SERIES | IVECO F5C | - |
| NEW HOLLAND W50BTC | - | LOADER WHEELED | W SERIES | IVECO F5C E9454C | TIER 3 |
| NEW HOLLAND W60BTC | - | LOADER WHEELED | W SERIES | IVECO F5C E9454G | TIER 3 |
| NEW HOLLAND W70BTC | - | LOADER WHEELED | W SERIES | IVECO F5C E9454E | TIER 3 |
| NEW HOLLAND W80BTC | - | LOADER WHEELED | W SERIES | IVECO F5C E5454B | TIER 3 |
