• Donaldson Lube Filter, Spin-On Full Flow - Donaldson P559130
1 1

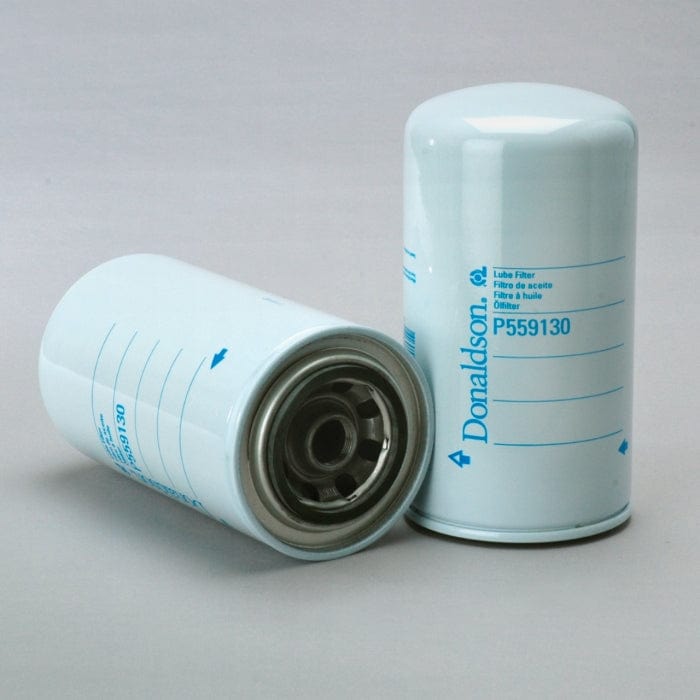

Lube Filter, Spin-On Full Flow - Donaldson P559130

Lube Filter, Spin-On Full Flow - Donaldson P559130

£19.25
£19.25
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P559130

Lube Filter, Spin-On Full Flow
Outer Diameter 4.21 inch (107 mm)
Thread Size 7/8-16 UN
Length 7.95 inch (202 mm)
Gasket OD 2.83 inch (72 mm)
Gasket ID 2.44 inch (62 mm)
Efficiency 99% 40 micron
Efficiency Test Std ISO 16889
Media Type Cellulose
Type Full-Flow
Style Spin-On
Primary Application CASE/CASE IH A62423
View full details

Specifications

Attributes

  • Outer Diameter: 107 mm (4.21 inch)
  • Thread Size: 7/8-16 UN
  • Length: 202 mm (7.95 inch)
  • Gasket OD: 72 mm (2.83 inch)
  • Gasket ID: 62 mm (2.44 inch)
  • Efficiency 99%: 40 micron
  • Efficiency Test Std: ISO 16889
  • Media Type: Cellulose
  • Type: Full-Flow
  • Style: Spin-On
  • Primary Application: CASE/CASE IH A62423

Packaged Dimensions

  • Packaged Length: 0.35 FT
  • Packaged Width: 0.35 FT
  • Packaged Height: 0.65 FT
  • Packaged Weight: 0.953 kg (2.10 lb)
  • Packaged Volume: 0.002 m3 (0.08 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421230090
  • UPC Code: 742330201565

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AMERICAN PARTS 92458
AMERICAN PARTS 2075
AMERICAN PARTS 2015
CASE/CASE IH A62423
CASE/CASE IH A59110
CHAMP PH444
CYCLONE PM461
DELUXE 368
EUCLID 48044069
KOMATSU L790PP
KRALINATOR L196
M.D.F. SARL MDL0444
MCCORMICK A59110
ORENSTEIN & KOPPEL 1448774
PERRY PL368
VMC LF551304
VOLVO 8010773
VOLVO 4804406
VOLVO 48044069
WHITE 400000406

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CASE/CASE IH 1060 - COMBINE - - 1060 -
CASE/CASE IH 1090 - TRACTOR - - 1090 -
CASE/CASE IH 1160 - COMBINE - - 1160 -
CASE/CASE IH 1450 - DOZER TRACKED - CASE/CASE IH 504BDT -
CASE/CASE IH A504BDT - ENGINE - - A504BDT -
CASE/CASE IH A504D - ENGINE - - A504D -
CASE/CASE IH W26B - LOADER WHEELED - CASE/CASE IH 504 -
CASE/CASE IH W26LF - LOADER WHEELED - CASE/CASE IH 504 -
VOLVO CONSTRUCTION EQUIPMENT EL70 - LOADER EL SERIES VOLVO TD45 -
