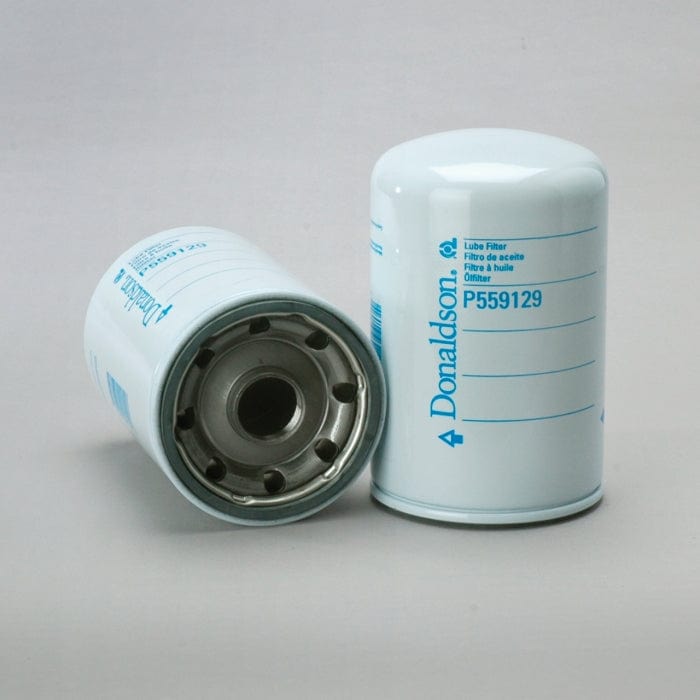

Lube Filter, Spin-On Full Flow - Donaldson P559129

Lube Filter, Spin-On Full Flow - Donaldson P559129

£20.09
£20.09
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P559129

Lube Filter, Spin-On Full Flow
Outer Diameter 4.21 inch (107 mm)
Thread Size M30 x 1.5
Length 6.61 inch (168 mm)
Gasket OD 3.90 inch (99 mm)
Gasket ID 3.54 inch (90 mm)
Efficiency 99% 30 micron
Efficiency Test Std ISO 16889
Bypass Valve Setting LR 18 psi (1.24 bar)
Bypass Valve Setting HR 23 psi (1.58 bar)
Media Type Cellulose
Type Full-Flow
Style Spin-On
Primary Application ROLLS ROYCE CV2473
View full details

Specifications

Attributes

  • Outer Diameter: 107 mm (4.21 inch)
  • Thread Size: M30 x 1.5
  • Length: 168 mm (6.61 inch)
  • Gasket OD: 99 mm (3.90 inch)
  • Gasket ID: 90 mm (3.54 inch)
  • Efficiency 99%: 30 micron
  • Efficiency Test Std: ISO 16889
  • Bypass Valve Setting LR: 1.24 bar (18 psi)
  • Bypass Valve Setting HR: 1.58 bar (23 psi)
  • Media Type: Cellulose
  • Type: Full-Flow
  • Style: Spin-On
  • Primary Application: ROLLS ROYCE CV2473

Packaged Dimensions

  • Packaged Length: 0.35 FT
  • Packaged Width: 0.35 FT
  • Packaged Height: 0.55 FT
  • Packaged Weight: 0.881 kg (1.94 lb)
  • Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-06
  • HTS Code: 8421230090
  • UPC Code: 742330201558

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BERGERAT MONNOYEUR E6878
BERGERAT MONNOYEUR E6878
CROSLAND 2054
CROSLAND 2054
KUKJE YGT00160
KUKJE YGT00160
LOESING 25182
LOESING 25182
LOESING 025182
NEW HOLLAND 1449197
PERKINS CV2473
PERKINS CV2473
ROLLS ROYCE CV2473
ROLLS ROYCE CV2473
SDMO 330560059

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
HYSTER H880 - FORKLIFT - PERKINS 12T1 -
