Lube Filter, Spin-On Full Flow - Donaldson P559127
Lube Filter, Spin-On Full Flow - Donaldson P559127
Regular price
£19.05
Regular price
Sale price
£19.05
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

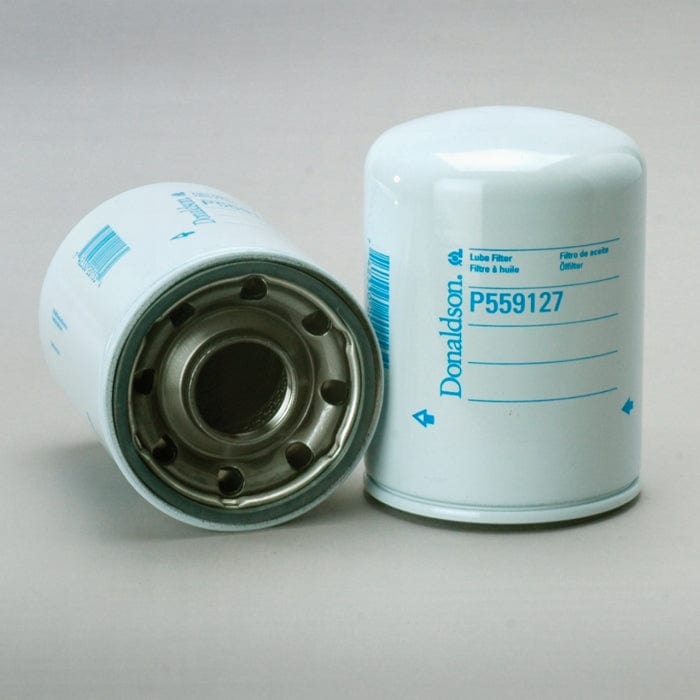

Donaldson P559127
Lube Filter, Spin-On Full Flow| Outer Diameter | 4.21 inch (107 mm) |
| Thread Size | 1 1/2-16 UN |
| Length | 5.79 inch (147 mm) |
| Gasket OD | 3.90 inch (99 mm) |
| Gasket ID | 3.54 inch (90 mm) |
| Efficiency 99% | 40 micron |
| Efficiency Test Std | ISO 16889 |
| Media Type | Cellulose |
| Type | Full-Flow |
| Style | Spin-On |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 107 mm (4.21 inch)
- Thread Size: 1 1/2-16 UN
- Length: 147 mm (5.79 inch)
- Gasket OD: 99 mm (3.90 inch)
- Gasket ID: 90 mm (3.54 inch)
- Efficiency 99%: 40 micron
- Efficiency Test Std: ISO 16889
- Media Type: Cellulose
- Type: Full-Flow
- Style: Spin-On
Packaged Dimensions
- Packaged Length: 0.35 FT
- Packaged Width: 0.35 FT
- Packaged Height: 0.48 FT
- Packaged Weight: 0.781 kg (1.72 lb)
- Packaged Volume: 0.002 m3 (0.06 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-06
- HTS Code: 8421230090
- UPC Code: 742330201534
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | PF1054 | |
| AMERICAN PARTS | 92742 | |
| AMERICAN PARTS | 2103 | |
| AMSOIL | SDF41 | |
| ATLAS | F19 | |
| BIG A | 2103 | |
| BIG A | 92742 | |
| BUS INDUSTRIES | 020503020 | |
| CARCARE | OF3766 | |
| CASE/CASE IH | JJPJ6714AA | |
| CASE/CASE IH | 804442C1 | |
| CASE/CASE IH | EJPJ6714AA | |
| CASE/CASE IH | 1804442C1 | |
| CASE/CASE IH | E3TZ6431A | |
| CASE/CASE IH | C3TZ6731A | |
| CASITE | CF441 | |
| CATERPILLAR | 3I1207 | |
| CATERPILLAR | 9Y4469 | |
| CENEX | CO784 | |
| CHAMP | LFP784 | |
| CHARDONNET | 7255078400 | |
| CITGO | LFP784 | |
| CITGO | C288 | |
| COOPERS | LSF5097 | |
| DEUSCH | D605 | |
| DRESSER | 1804442C1 | |
| EVERGARD | E288 | |
| EVERGARD | L30288 | |
| FACET | 484947 | |
| FACET | L784 | |
| FIAT | EJPJ6714AA | |
| FIAT | C3TZ6731A | |
| FIAT | E3TZ6431A | |
| FIAT | JJPJ6714AA | |
| FORD | E2PJ6714AA | |
| FORD | EJPJ6714AA | |
| FORD | JJPJ6714AA | |
| FORD | 9576P550784 | |
| FORD | C3TZ6731A | |
| FORD | E3TZ6431A | |
| FORD | E3TZ6731A | |
| FREIGHTLINER | DNP550784 | |
| GREYFRIARS | 920S | |
| GROUP 7 | V288 | |
| GUARDIAN | G051742 | |
| INTERNATIONAL | 180444C1 | |
| INTERNATIONAL | 1804442C1 | |
| KRALINATOR | L205U | |
| KRALINATOR | L205 | |
| LEE ENGINEERING | LF784HP | |
| LEE ENGINEERING | LF784 | |
| MERCRUISER | 35805809T | |
| NEW HOLLAND | C3TZ6731A | |
| NEW HOLLAND | E3TZ6431A | |
| NEW HOLLAND | EJPJ6714AA | |
| NEW HOLLAND | JJPJ6714AA | |
| PHILLIPS 66 | PO1742 | |
| PHILLIPS 66 | WO1742 | |
| POWER-FLO | SL30288 | |
| PRO-TEC | 173 | |
| QUAKER STATE | QS3766 | |
| SHELL | SH37 | |
| SHELL | S56 | |
| TEXACO | HSO108 | |
| TEXACO | T37 | |
| TEXACO | T37B | |
| UNION 76 | OF1742 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688564 | |
| UNIVERSAL COACH PARTS | LFP170784 | |
| UNIVERSAL COACH PARTS | T081060 | |
| UNOCAL | OF1742 | |
| VMC | LF550784 | |
| VOLVO | 3130925 | |
| WALGAHN-MOTORENTECHN | 811334 | |
| WALGAHN-MOTORENTECHN | 00811334 | |
| WARNER & SWASEY | LFP784 | |
| WARNER & SWASEY | WLFP784 | |
| XSV | OP288 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| FORD 7.3L | - | ENGINE | - | - 7.3L | - |
| FORD E-SERIES VAN | 1994 | LIGHT TRUCK | - | INTERNATIONAL 7.3L V8 | - |
| FORD F-SERIES PICKUP | 1997 | LIGHT TRUCK | - | INTERNATIONAL 7.3L V8 | - |
| FORD F-SERIES PICKUP | 1994 | LIGHT TRUCK | - | INTERNATIONAL 7.3L V8 | - |
| INTERNATIONAL 4000 SERIES | - | TRUCK | - | INTERNATIONAL 7.3L V8 | - |
| INTERNATIONAL 4600 | - | TRUCK | - | INTERNATIONAL 7.3L V8 | - |
| INTERNATIONAL 4600LP | - | TRUCK | - | INTERNATIONAL 7.3L V8 | - |
| INTERNATIONAL 7.3L V8 | - | ENGINE | - | - 7.3L V8 | - |
