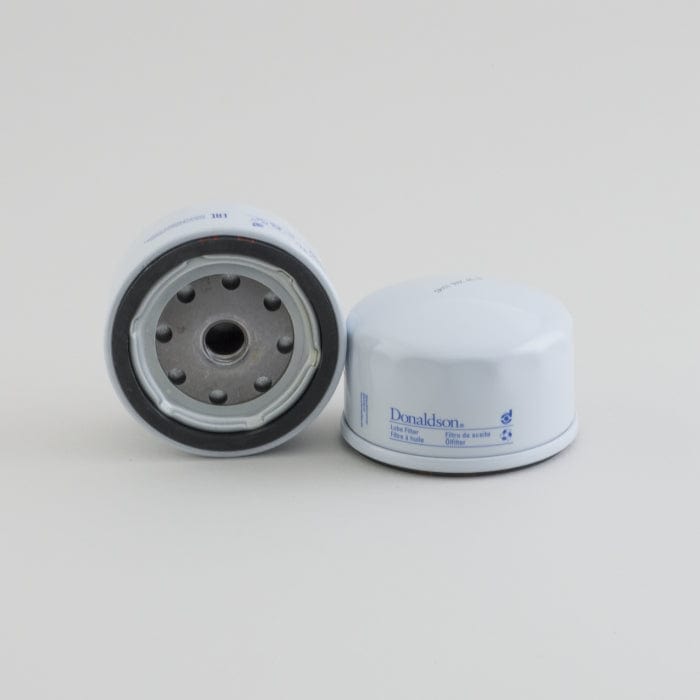

Lube Filter, Spin-On Full Flow - Donaldson P553400
Lube Filter, Spin-On Full Flow - Donaldson P553400
Regular price
£13.47
Regular price
Sale price
£13.47
Unit price
/
per
Shipping calculated at checkout.
This product is currently out of stock
More stock is due: 31-05-2024
You can still order and we will despatch as soon as the item arrives with us.
Couldn't load pickup availability
Donaldson P553400
Lube Filter, Spin-On Full Flow| Outer Diameter | 2.99 inch (76 mm) |
| Thread Size | M14 x 1.5 |
| Length | 2.05 inch (52 mm) |
| Gasket OD | 2.83 inch (71.8 mm) |
| Gasket ID | 2.44 inch (62 mm) |
| Efficiency 50% | 17 micron |
| Efficiency 95% | 30 micron |
| Efficiency Beta 75 | 35 micron |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 102 psi (7 bar) |
| Bypass Valve Setting HR | 145 psi (10 bar) |
| Media Type | Cellulose |
| Collapse Burst | 102 psi (7 bar) |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | QUINCY 2023400100 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 76 mm (2.99 inch)
- Thread Size: M14 x 1.5
- Length: 52 mm (2.05 inch)
- Gasket OD: 71.8 mm (2.83 inch)
- Gasket ID: 62 mm (2.44 inch)
- Efficiency 50%: 17 micron
- Efficiency 95%: 30 micron
- Efficiency Beta 75: 35 micron
- Bypass Valve: Yes
- Bypass Valve Setting LR: 7 bar (102 psi)
- Bypass Valve Setting HR: 10 bar (145 psi)
- Media Type: Cellulose
- Collapse Burst: 7 bar (102 psi)
- Type: Full-Flow
- Style: Spin-On
- Primary Application: QUINCY 2023400100
Packaged Dimensions
- Packaged Length: 0.069 m (2.76 inch)
- Packaged Width: 0.069 m (2.76 inch)
- Packaged Height: 0.069 m (2.76 inch)
- Packaged Weight: 0.295 kg (0.65 lb)
- Packaged Volume: 0.000 m3 (0.01 ft3)
Other Information
- Country of Origin: Indonesia
- NMFC Code: 069100-05
- HTS Code: 8421230090
- UPC Code: 742330988008
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| QUINCY COMPRESSOR | 2023400101 | |
| QUINCY COMPRESSOR | 2023400100 |
