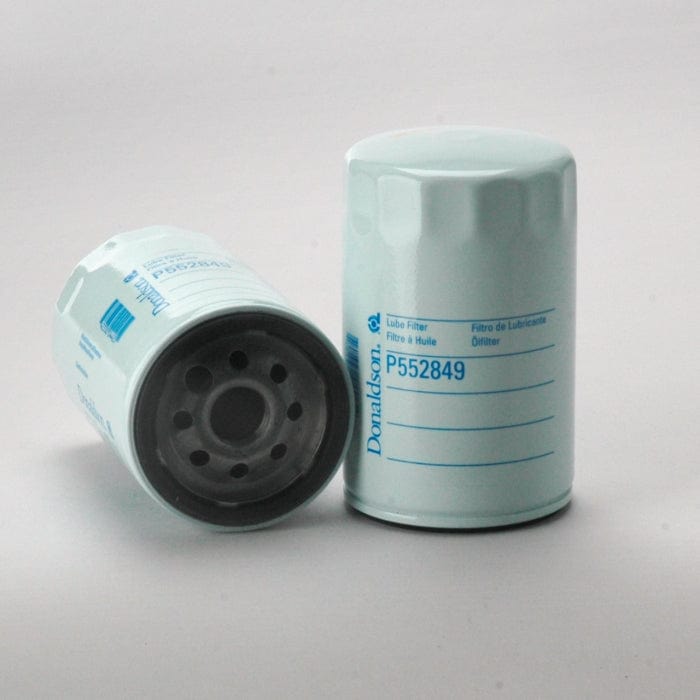

Lube Filter, Spin-On Full Flow - Donaldson P552849

Lube Filter, Spin-On Full Flow - Donaldson P552849

£6.76
£6.76
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P552849

Lube Filter, Spin-On Full Flow
Outer Diameter 2.95 inch (75 mm)
Thread Size M20 x 1.5
Length 4.76 inch (121 mm)
Gasket OD 2.76 inch (70 mm)
Gasket ID 2.40 inch (61 mm)
Efficiency 99% 36 micron
Efficiency Test Std SAE J1858
Anti-Drainback Valve Yes
Bypass Valve Yes
Bypass Valve Setting LR 12 psi (0.8 bar)
Bypass Valve Setting HR 15 psi (1 bar)
Media Type Cellulose
Collapse Burst 75 psi (5.2 bar)
Type Full-Flow
Style Spin-On
View full details

Specifications

Attributes

  • Outer Diameter: 75 mm (2.95 inch)
  • Thread Size: M20 x 1.5
  • Length: 121 mm (4.76 inch)
  • Gasket OD: 70 mm (2.76 inch)
  • Gasket ID: 61 mm (2.40 inch)
  • Efficiency 99%: 36 micron
  • Efficiency Test Std: SAE J1858
  • Anti-Drainback Valve: Yes
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 0.8 bar (12 psi)
  • Bypass Valve Setting HR: 1 bar (15 psi)
  • Media Type: Cellulose
  • Collapse Burst: 5.2 bar (75 psi)
  • Type: Full-Flow
  • Style: Spin-On

Packaged Dimensions

  • Packaged Length: 0.080 m (3.20 inch)
  • Packaged Width: 0.080 m (3.20 inch)
  • Packaged Height: 0.130 m (5.20 inch)
  • Packaged Weight: 0.320 kg (0.71 lb)
  • Packaged Volume: 0.001 m3 (0.03 ft3)

Other Information

  • Country of Origin: Indonesia
  • NMFC Code: 069100-09
  • HTS Code: 8421230090
  • UPC Code: 742330044254
