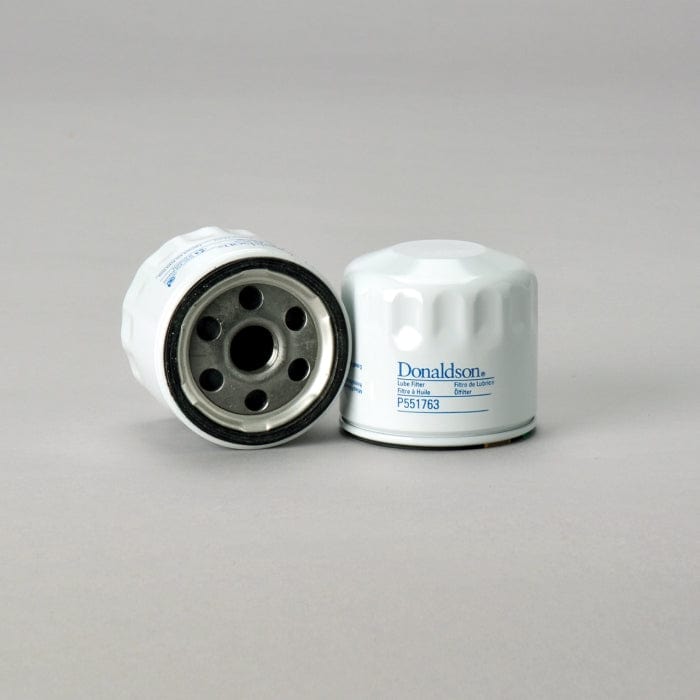

Lube Filter, Spin-On Full Flow - Donaldson P551763
Lube Filter, Spin-On Full Flow - Donaldson P551763
Regular price
£17.67
Regular price
Sale price
£17.67
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P551763
Lube Filter, Spin-On Full Flow| Outer Diameter | 2.91 inch (74 mm) |
| Thread Size | 3/4-16 UN |
| Length | 2.64 inch (67 mm) |
| Gasket OD | 2.72 inch (69 mm) |
| Gasket ID | 2.44 inch (62 mm) |
| Efficiency 99% | 40 micron |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 9 psi (0.6 bar) |
| Collapse Burst | 49 psi (3.4 bar) |
| Type | Full-Flow |
| Style | Spin-On |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 74 mm (2.91 inch)
- Thread Size: 3/4-16 UN
- Length: 67 mm (2.64 inch)
- Gasket OD: 69 mm (2.72 inch)
- Gasket ID: 62 mm (2.44 inch)
- Efficiency 99%: 40 micron
- Anti-Drainback Valve: Yes
- Bypass Valve: Yes
- Bypass Valve Setting LR: 0.6 bar (9 psi)
- Collapse Burst: 3.4 bar (49 psi)
- Type: Full-Flow
- Style: Spin-On
Packaged Dimensions
- Packaged Length: 0.088 m (3.50 inch)
- Packaged Width: 0.075 m (3.00 inch)
- Packaged Height: 0.080 m (3.20 inch)
- Packaged Weight: 0.261 kg (0.58 lb)
- Packaged Volume: 0.001 m3 (0.02 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-09
- HTS Code: 8421230090
- UPC Code: 742330138014
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BIG A | 92056 | |
| BRIGGS & STRATTON | 492932 | |
| CUB CADET | KH1205008 | |
| CUB CADET | 1205008 | |
| CUSHMAN | 1205001 | |
| EVERGARD | L35310 | |
| KOHLER | 1205001S | |
| KOHLER | 1205001 | |
| KOHLER | 1205008S | |
| KOHLER | 1205008 | |
| LISTER PETTER | 75112870 | |
| MILLER ELECTRIC | 66698 | |
| MITSUBISHI | 91H2011870 | |
| MITSUBISHI | CT91H2011870 | |
| STENSELE | 120523 | |
| STENSELE | 120513 | |
| STENSELE | 120923 | |
| TECUMSEH | 36961 | |
| TECUMSEH | 36563 | |
| TECUMSEH | 36262 | |
| TECUMSEH | 1A100149 | |
| VMC | LF551763 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| AGCO 2020 | - | LAWN EQUIPMENT | - | - 2020 | - |
| AGCO ZT1644 | - | LAWN EQUIPMENT | - | - ZT1644 | - |
| ANTONIO CARRARO 3200 | - | TRACTOR | TIGRECAR | - 3200 | - |
| ANTONIO CARRARO RS | - | TRACTOR | TIGROTTO | RUGGERINI RD180 | - |
| ANTONIO CARRARO TIGRETRANS | - | TRACTOR | - | RUGGERINI RD210 | - |
| DITCH WITCH SK350 | - | TRENCHER | - | - SK350 | - |
| KUBOTA T1570 | - | TRACTOR | - | - T1570 | - |
| NEW HOLLAND GT20A | - | LAWN EQUIPMENT | - | - GT20A | - |
| NEW HOLLAND GT22A | - | LAWN EQUIPMENT | - | - GT22A | - |
| NEW HOLLAND LS140 | - | SKID STEER LOADER | - | - LS140 | - |
| NEW HOLLAND LS35 | - | LAWN EQUIPMENT | - | - LS35 | - |
| NEW HOLLAND LS55 | - | LAWN EQUIPMENT | - | - LS55 | - |
| NEW HOLLAND MY16 | - | LAWN EQUIPMENT | - | - MY16 | - |
| NEW HOLLAND MY17 | - | LAWN EQUIPMENT | - | - MY17 | - |
| NEW HOLLAND MY19 | - | LAWN EQUIPMENT | - | - MY19 | - |
| NEW HOLLAND TC24 | - | TRACTOR | - | IHI 1.1L | - |
| NEW HOLLAND TC24DA | - | TRACTOR | - | IHI 1.1L | - |
| VERMEER 252 | - | CHIPPER | - | - 252 | - |
| VERMEER 625 | - | CHIPPER | - | - 625 | - |
| VERMEER LM25 | - | TRENCHER | - | - LM25 | - |
| VERMEER RT200 | - | TRENCHER | - | KOHLER 23 HP | - |
| VERMEER V1850 | - | TRENCHER | - | - V1850 | - |
