• Donaldson Lube Filter, Spin-On Full Flow - Donaldson P551603
1 1

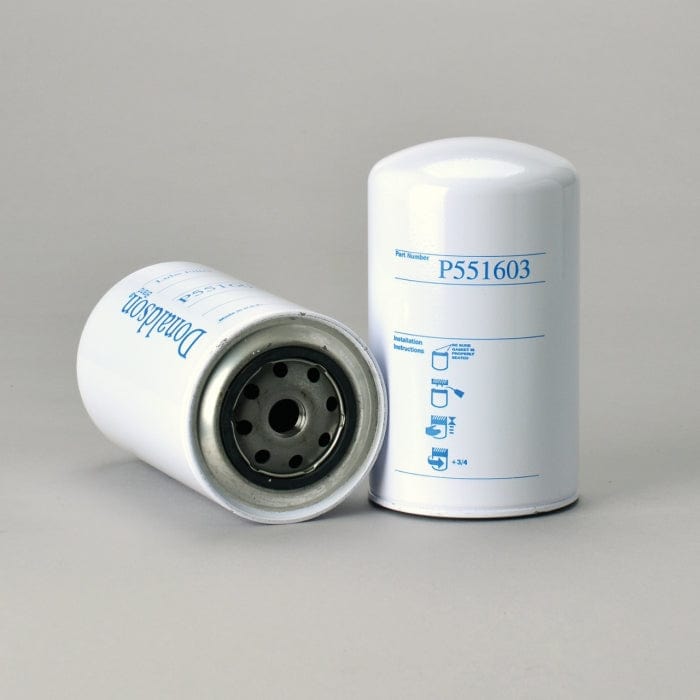

Lube Filter, Spin-On Full Flow - Donaldson P551603

Lube Filter, Spin-On Full Flow - Donaldson P551603

£15.91
£15.91
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P551603

Lube Filter, Spin-On Full Flow
Outer Diameter 4.25 inch (108 mm)
Thread Size 3/4-16
Length 6.69 inch (170 mm)
Gasket OD 2.83 inch (72 mm)
Gasket ID 2.44 inch (62 mm)
Efficiency 99% 23 micron
Anti-Drainback Valve Yes
Bypass Valve Yes
Bypass Valve Setting LR 30 psi (2.1 bar)
Media Type Cellulose
Collapse Burst 100 psi (6.9 bar)
Type Full-Flow
Style Spin-On
View full details

Specifications

Attributes

  • Outer Diameter: 108 mm (4.25 inch)
  • Thread Size: 3/4-16
  • Length: 170 mm (6.69 inch)
  • Gasket OD: 72 mm (2.83 inch)
  • Gasket ID: 62 mm (2.44 inch)
  • Efficiency 99%: 23 micron
  • Anti-Drainback Valve: Yes
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 2.1 bar (30 psi)
  • Media Type: Cellulose
  • Collapse Burst: 6.9 bar (100 psi)
  • Type: Full-Flow
  • Style: Spin-On

Packaged Dimensions

  • Packaged Length: 0.108 m (4.33 inch)
  • Packaged Width: 0.108 m (4.33 inch)
  • Packaged Height: 0.177 m (7.09 inch)
  • Packaged Weight: 0.880 kg (1.94 lb)
  • Packaged Volume: 0.002 m3 (0.08 ft3)

Other Information

  • Country of Origin: Bosnia and Herzegovina
  • HTS Code: 8421230090
  • UPC Code: 742330043837

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
A P PARTS LK3146
AC DELCO X36
AGRIA 1909101
AGRIFULL 1909101
ALCO SP878
ALLIS-CHALMERS 4648371
ALLIS-CHALMERS 1901603
ALLIS-CHALMERS 4008751
ALLIS-CHALMERS 1909101
ALLIS-CHALMERS 61660298
ALLIS-CHALMERS 04648371
ALLIS-CHALMERS 2091847
ALLIS-CHALMERS 4625547
BENATI 1836102
BOSCH-REXROTH 9450732003
CASE/CASE IH U1250505
CASE/CASE IH 1836102
CASE/CASE IH E110776
CASE/CASE IH 4600875
CATERPILLAR 3I1246
CLEAN DO821
CLEAN DO243
COMPAIR C160128
COOPERS AZL034
COOPERS Z72
COOPERS LSF5134
CROSLAND 9305
DONIT 431091
FIAAM FT4670
FIAAM FT4670T
FIAT 61660298
FIAT 8822645
FIAT 1909101
FIAT 4951092
FIAT 8820772
FIAT 4600785
FIAT 4600872
FIAT 4600875
FIAT 4597232
FIAT 01901603
FIAT 4730586
FIAT 9819501
FIAT 1836102
FIAT 1907566
FIAT 468371
FIAT T0121977
FIAT 01909101
FIAT TO121977
FIAT 8719501
FIAT 4008751
FIAT 62775370
FIAT 71909101
FIAT 740008751
FIAT 74008751
FIAT 4648371
FIAT 71901603
FIAT 70107630
FIAT 70425547
FIAT 4625547
FIAT 74648371
FIAT 4629544
FIAT 4630786
FIAT 2654392
FIAT 4643371
FIATALLIS TO121977
FIATALLIS 4648371
FIATALLIS 4600875
FIATALLIS 4625547
FIL ZP514A
FIL ZP514
FILT FF332EC
FISPA FOE020
FISPA LI3582
FORD 5000863
FORD A730X6714KA
FORD 5019427
FORD 5011423
FORD 5009233
GIESSE CLH342
GREYFRIARS 912S
GUD Z49A
GUD Z72
GUIOT GH2824
HAVAM HD0108
HESSTON 1909001
HITACHI L01909101
HITACHI 1909101
IVECO 1909101
IVECO 1907566
IVECO 4648371
IVECO 4600875
IVECO 4615547
IVECO 4625547
IVECO 4951092
IVECO 901272
IVECO 1901603
JCB 44647402
KNECHT AW55
KNECHT OC308
KNECHT OC14
KUBOTA W21ESO1G00
LOCKHEED LK3146
MANITOU 505673
MARINE PERFORMANCE MPL5266
MASSEY FERGUSON 993028
MASTE DK21
MISFAT 12310700
NEW HOLLAND 1909101
NISSAN/UD TRUCKS BC1032
ORENSTEIN & KOPPEL 103900
P.B.R. BC1032
PEGASO 901272
PERKINS 993028
PERKINS 992028
PERMATIC GL337
POCLAIN U1250505
POWER-PART AM042201
PURFLUX LS412
RENAULT VI 5001846645
RENAULT VI 605019733
ROMAN LUS103
ROMAN 89055016003
SAME 244191701
SAURER 2060462554700
SAVARA 92801017
SAVARA SO287
SAVARA 92828717
SDMO 330560206
SEAT ND03028850
SOPARIS CV350
TECHNOCAR R80
TECHNOCAR R179
TEHO 4045
TEHO OK45
TODD GT 2240063
VAPORMATIC VPD5037
VMC LF551603
WALGAHN-MOTORENTECHN 811372
WALGAHN-MOTORENTECHN 00811372
WFZ 9025516030
