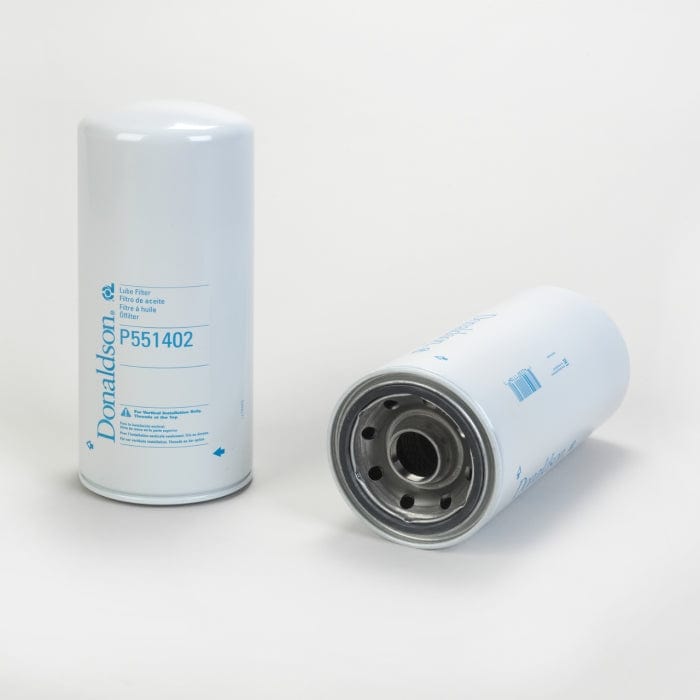

Lube Filter, Spin-On Full Flow - Donaldson P551402
Lube Filter, Spin-On Full Flow - Donaldson P551402
Regular price
£30.20
Regular price
Sale price
£30.20
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P551402
Lube Filter, Spin-On Full Flow| Outer Diameter | 5.31 inch (135 mm) |
| Thread Size | 1 1/2-16 UN |
| Length | 12.13 inch (308 mm) |
| Gasket OD | 4.29 inch (109 mm) |
| Gasket ID | 3.94 inch (100 mm) |
| Efficiency 99% | 21 micron |
| Efficiency Test Std | ISO 16889 |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 32 psi (2.2 bar) |
| Bypass Valve Setting HR | 39 psi (2.7 bar) |
| Media Type | Cellulose |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | Vertical installation only – Threads at the top |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 135 mm (5.31 inch)
- Thread Size: 1 1/2-16 UN
- Length: 308 mm (12.13 inch)
- Gasket OD: 109 mm (4.29 inch)
- Gasket ID: 100 mm (3.94 inch)
- Efficiency 99%: 21 micron
- Efficiency Test Std: ISO 16889
- Bypass Valve: Yes
- Bypass Valve Setting LR: 2.2 bar (32 psi)
- Bypass Valve Setting HR: 2.7 bar (39 psi)
- Media Type: Cellulose
- Type: Full-Flow
- Style: Spin-On
- Primary Application: Vertical installation only – Threads at the top
Packaged Dimensions
- Packaged Length: 0.132 m (5.28 inch)
- Packaged Width: 0.132 m (5.28 inch)
- Packaged Height: 0.303 m (12.13 inch)
- Packaged Weight: 1.887 kg (4.16 lb)
- Packaged Volume: 0.006 m3 (0.20 ft3)
Other Information
- Country of Origin: Poland
- NMFC Code: 069100-05
- HTS Code: 8421230090
- UPC Code: 742330111642
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | XD34 | For Vertical Installation Only |
| ATLAS COPCO | 23526919 | For Vertical Installation Only |
| DETROIT DIESEL | 23526919 | For Vertical Installation Only |
| DETROIT DIESEL | 5241800110 | For Vertical Installation Only |
| DETROIT DIESEL | 5361840001 | For Vertical Installation Only |
| DETROIT DIESEL | 23540039 | For Vertical Installation Only |
| EUCLID | E12979440 | For Vertical Installation Only |
| HITACHI | E12980372 | For Vertical Installation Only |
| KOHLER | GM13224 | For Vertical Installation Only |
| KRALINATOR | F59 | For Vertical Installation Only |
| MTU | 31845301 | For Vertical Installation Only |
| MTU | 0031845301 | |
| MTU | X54418300057 | |
| NEW HOLLAND | 8037451 | For Vertical Installation Only |
| SDMO | 330510031 | For Vertical Installation Only |
| SDMO | 330242185 | For Vertical Installation Only |
| TEREX | 15273756 | For Vertical Installation Only |
| TEREX | 23526919 | For Vertical Installation Only |
| TORQUIP | 15273756 | For Vertical Installation Only |
| VMC | LF551402 | For Vertical Installation Only |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| ATLAS COPCO MT5010 | - | DRILLING EQUIPMENT | - | - MT5010 | - |
| DETROIT DIESEL SERIES 2000 | - | ENGINE | - | - SERIES 2000 | - |
| DETROIT DIESEL SERIES 4000 | - | ENGINE | - | - SERIES 4000 | - |
| EUCLID 1100 | - | HAUL TRUCK | - | DETROIT DIESEL SERIES 2000 | - |
| MTU 12V2000 | - | ENGINE | - | MTU 12V2000 | - |
| MTU 16V2000 | - | ENGINE | - | MTU 16V2000 | - |
| MTU 18V2000 | - | ENGINE | - | MTU 18V2000 | - |
| TEREX TR100 | - | DUMP TRUCK | TR SERIES | DETROIT DIESEL 16V-2000TA | - |
| TEREX TR70 | - | DUMP TRUCK | TR SERIES | - TR70 | - |
| UNIT RIG EQUIPMENT MT3000 | - | HAUL TRUCK | - | - MT3000 | - |
| UNIT RIG EQUIPMENT MT3300 | - | HAUL TRUCK | - | DETROIT DIESEL 16V-2000 | - |
| UNIT RIG EQUIPMENT MT3300 | - | HAUL TRUCK | - | - MT3300 | - |
