• Donaldson Lube Filter, Spin-On Full Flow - Donaldson P551264
1 1

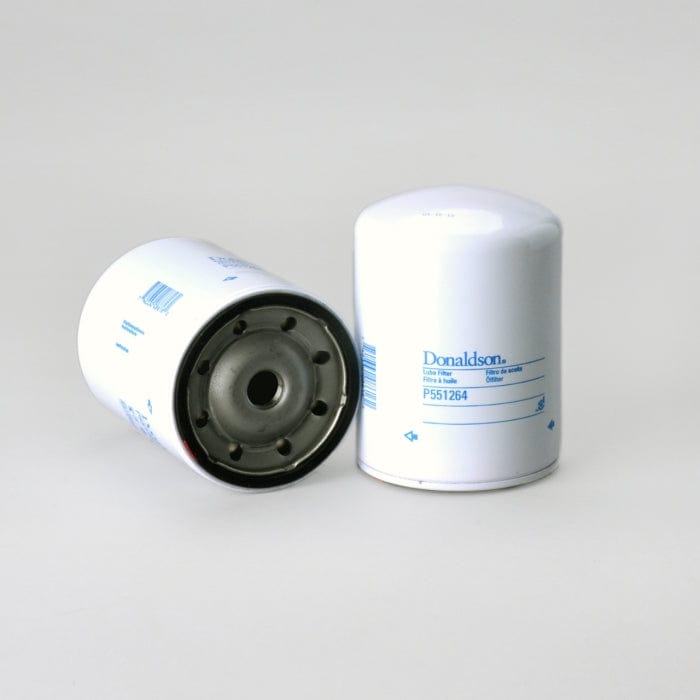

Lube Filter, Spin-On Full Flow - Donaldson P551264

Lube Filter, Spin-On Full Flow - Donaldson P551264

£29.12
£29.12
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P551264

Lube Filter, Spin-On Full Flow
View full details

Specifications

Attributes

  • Outer Diameter: 108 mm (4.25 inch)
  • Thread Size: M20 x 1.5
  • Length: 143 mm (5.63 inch)
  • Gasket OD: 100 mm (3.94 inch)
  • Gasket ID: 90 mm (3.54 inch)
  • Efficiency 99%: 40 micron
  • Efficiency Test Std: ISO 16889
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.4 bar (20 psi)
  • Media Type: Cellulose
  • Collapse Burst: 6.9 bar (100 psi)
  • Type: Full-Flow
  • Style: Spin-On

Packaged Dimensions

  • Packaged Length: 0.118 m (4.72 inch)
  • Packaged Width: 0.118 m (4.72 inch)
  • Packaged Height: 0.158 m (6.30 inch)
  • Packaged Weight: 0.686 kg (1.51 lb)
  • Packaged Volume: 0.002 m3 (0.08 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-10
  • HTS Code: 8421230090
  • UPC Code: 742330086162

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BIG A 92726
BIG A 92330
DAEWOO 65055105008
GREYFRIARS 9048S
GREYFRIARS 9059S
HYSTER 360974
HYSTER 36097412
ISUZU 5132110241
ISUZU 97024607
ISUZU 8970246070
ISUZU 8970246071
JCB H9344936
JCB 800002
KALMAR 134241
KOMATSU Z1402OF105
KOMATSU Z14020F105
KOMATSU 37Z02OF105
KOMATSU Z148970246070
KOMATSU 8970246070
KOMATSU 372020F105
KRALINATOR L1726
TCM 2080101191
VIC C510A
VMC LF551264

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
DOOSAN DH50 - EXCAVATOR COMPACT - DOOSAN DC24 -
HYSTER H3.20XML - FORKLIFT H SERIES - H3.20XML -
HYSTER H40XL - FORKLIFT - - H40XL -
KOMATSU FD20/30-7 - FORKLIFT - - FD20/30-7 -
KOMATSU FD20/30L-8 - FORKLIFT - - FD20/30L-8 -
TCM FD15Z7 - FORKLIFT FD SERIES NISSAN H20 -
TCM FD20Z2 - FORKLIFT FD SERIES - FD20Z2 -
TCM FD20Z4 - FORKLIFT FD SERIES ISUZU C240 -
TCM FD30Z5 - FORKLIFT FD SERIES ISUZU C240 -
TCM FD30Z7 - FORKLIFT FD SERIES ISUZU C240 -
TCM FD30Z8 - FORKLIFT FD SERIES ISUZU C240 -
TCM FHG18N7 - FORKLIFT FHG SERIES NISSAN H20 -
