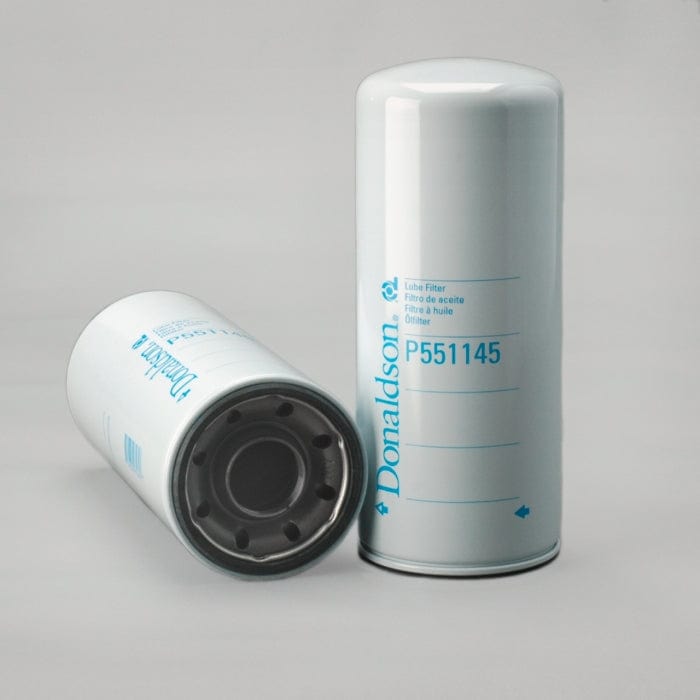

Lube Filter, Spin-On Full Flow - Donaldson P551145
Lube Filter, Spin-On Full Flow - Donaldson P551145
Regular price
£62.55
Regular price
Sale price
£62.55
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P551145
Lube Filter, Spin-On Full Flow| Outer Diameter | 4.65 inch (118 mm) |
| Thread Size | 1 3/4-12 UN |
| Length | 11.26 inch (286 mm) |
| Gasket OD | 4.33 inch (110 mm) |
| Gasket ID | 3.86 inch (98 mm) |
| Efficiency 99% | 20 micron |
| Efficiency Test Std | SAE J1858 |
| Bypass Valve | Yes |
| Media Type | Synthetic |
| Collapse Burst | 200 psi (13.8 bar) |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | NAVISTAR 1889124C91 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 118 mm (4.65 inch)
- Thread Size: 1 3/4-12 UN
- Length: 286 mm (11.26 inch)
- Gasket OD: 110 mm (4.33 inch)
- Gasket ID: 98 mm (3.86 inch)
- Efficiency 99%: 20 micron
- Efficiency Test Std: SAE J1858
- Bypass Valve: Yes
- Media Type: Synthetic
- Collapse Burst: 13.8 bar (200 psi)
- Type: Full-Flow
- Style: Spin-On
- Primary Application: NAVISTAR 1889124C91
Packaged Dimensions
- Packaged Length: 0.120 m (4.80 inch)
- Packaged Width: 0.120 m (4.80 inch)
- Packaged Height: 0.310 m (12.38 inch)
- Packaged Weight: 1.530 kg (3.37 lb)
- Packaged Volume: 0.004 m3 (0.14 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069095-02
- HTS Code: 8421230090
- UPC Code: 742330975657
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| INTERNATIONAL | 1884508C1 | |
| INTERNATIONAL | 1884508C2 | |
| INTERNATIONAL | 1889124C91 | |
| PERKINS | 7092312C2 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| INTERNATIONAL DURASTAR 4300 | - | TRUCK | - | INTERNATIONAL MAXXFORCE DT | - |
| INTERNATIONAL DURASTAR 4300LP | - | TRUCK | - | INTERNATIONAL MAXXFORCE DT | - |
| INTERNATIONAL DURASTAR 4400 | - | TRUCK | - | INTERNATIONAL MAXXFORCE DT | - |
| INTERNATIONAL DURASTAR 4400 | - | TRUCK | - | INTERNATIONAL MAXXFORCE 9 | - |
| INTERNATIONAL DURASTAR 4400 | - | TRUCK | - | INTERNATIONAL MAXXFORCE 10 | - |
| INTERNATIONAL DURASTAR 4400LP | - | TRUCK | - | INTERNATIONAL MAXXFORCE 9 | - |
| INTERNATIONAL DURASTAR 4400LP | - | TRUCK | - | INTERNATIONAL MAXXFORCE 10 | - |
| INTERNATIONAL MAXXFORCE 10 | - | ENGINE | - | INTERNATIONAL MAXXFORCE 10 | - |
| INTERNATIONAL MAXXFORCE 9 | - | ENGINE | - | INTERNATIONAL MAXXFORCE 9 | - |
| INTERNATIONAL MAXXFORCE DT | - | ENGINE | - | INTERNATIONAL MAXXFORCE DT | - |
| INTERNATIONAL RXT | - | TRUCK | - | INTERNATIONAL MAXXFORCE 9 | - |
| INTERNATIONAL TRANSTAR 8500 | - | TRUCK | - | INTERNATIONAL MAXXFORCE 10 | - |
| INTERNATIONAL WORKSTAR 7300 | - | TRUCK | - | INTERNATIONAL MAXXFORCE DT | - |
| INTERNATIONAL WORKSTAR 7400 | - | TRUCK | - | INTERNATIONAL MAXXFORCE 9 | - |
| INTERNATIONAL WORKSTAR 7400 | - | TRUCK | - | INTERNATIONAL MAXXFORCE 10 | - |
| INTERNATIONAL WORKSTAR 7400 | - | TRUCK | - | INTERNATIONAL MAXXFORCE DT | - |
| INTERNATIONAL WORKSTAR 7500 | - | TRUCK | - | INTERNATIONAL MAXXFORCE 10 | - |
