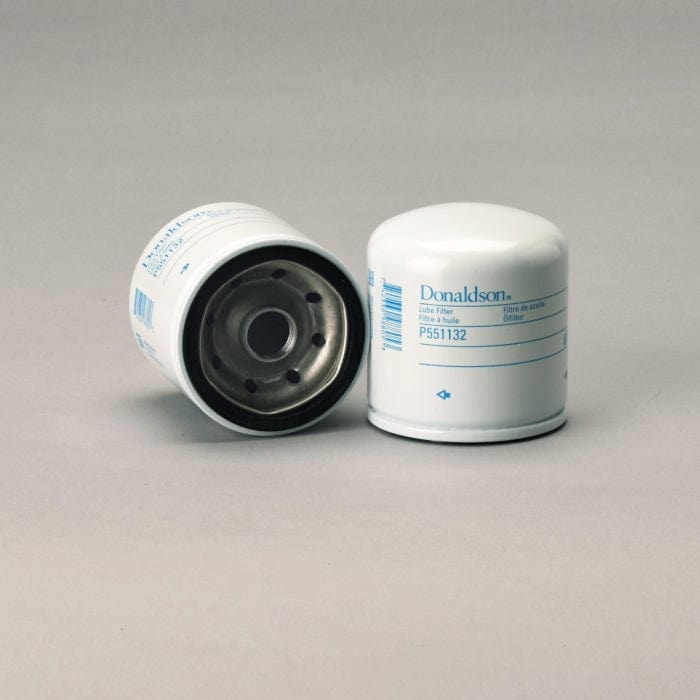

Lube Filter, Spin-On Full Flow - Donaldson P551132

Lube Filter, Spin-On Full Flow - Donaldson P551132

£10.67
£10.67
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P551132

Lube Filter, Spin-On Full Flow
View full details

Specifications

Attributes

  • Outer Diameter: 76 mm (2.99 inch)
  • Thread Size: 3/4-16 UN
  • Length: 83 mm (3.27 inch)
  • Gasket OD: 70 mm (2.76 inch)
  • Gasket ID: 60 mm (2.36 inch)
  • Efficiency 99%: 17 micron
  • Efficiency Test Std: ISO 16889
  • Anti-Drainback Valve: Yes
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 0.76 bar (11 psi)
  • Bypass Valve Setting HR: 1.17 bar (17 psi)
  • Media Type: Synteq
  • Type: Full-Flow
  • Style: Spin-On
  • Primary Application: CASE

Packaged Dimensions

  • Packaged Length: 0.075 m (3.00 inch)
  • Packaged Width: 0.068 m (2.70 inch)
  • Packaged Height: 0.100 m (4.00 inch)
  • Packaged Weight: 0.318 kg (0.70 lb)
  • Packaged Volume: 0.001 m3 (0.02 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-05
  • HTS Code: 8421230090
  • UPC Code: 742330988053

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CASE/CASE IH 84475542
CUMMINS C6002112110
DYNAPAC 4700939068
GROVE 9414101541
HYSTER 1691846
JCB 721150720
MECALAC 537A0142
NEW HOLLAND 84475542

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
AMMANN AV85-2 - COMPACTOR - CUMMINS 4BT3.3 -
AMMANN AV95-2 - COMPACTOR - CUMMINS 4BT3.3 -
CASE/CASE IH SV185 - SKID STEER LOADER - - SV185 -
CASE/CASE IH SV250 - SKID STEER LOADER - - SV250 -
CASE/CASE IH SV300 - SKID STEER LOADER - - SV300 -
